RUiXU RX9MP 5 x 5/16" Busbar (Pair) RUiXU RX9MP 5 x 5/16" Busbar (Pair)

RUiXU RX9MP 5 x 5/16" Busbar (Pair)

by RUiXU
$235.00 CAD - $235.00 CAD
$235.00 CAD
$235.00 CAD - $235.00 CAD
$235.00 CAD
Have Questions?

You can visit our support center or reach out to us by clicking here.

Heavy-Duty 800A Busbars with Quick-Connect.

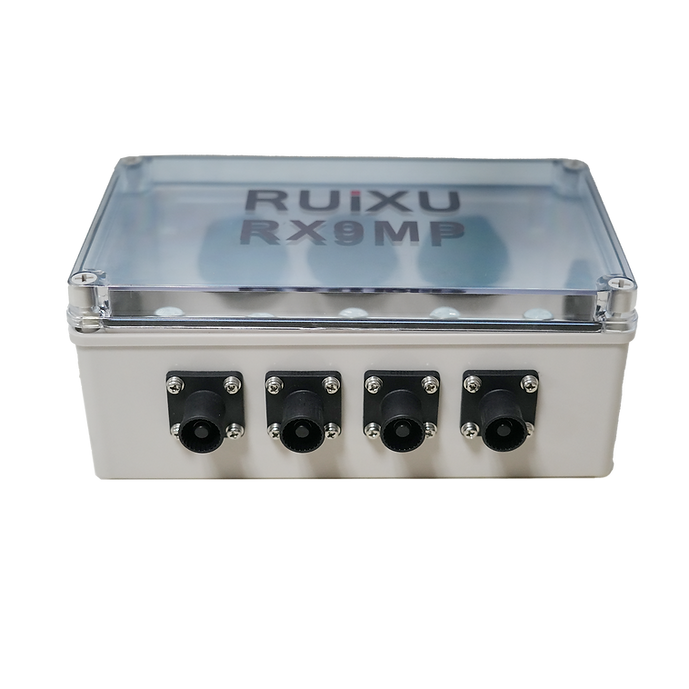

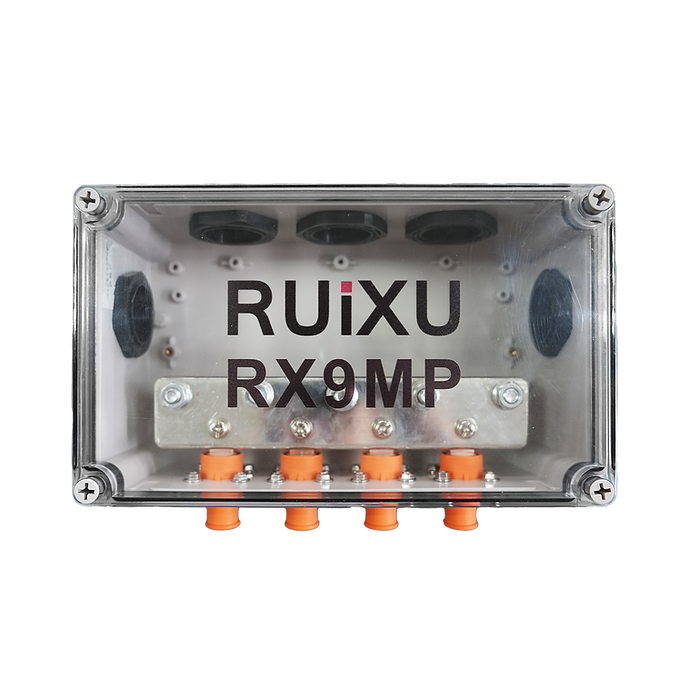

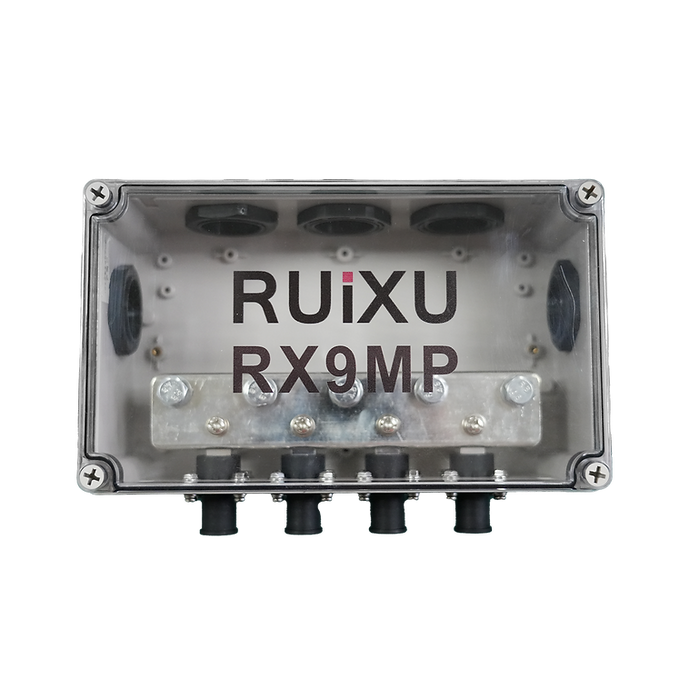

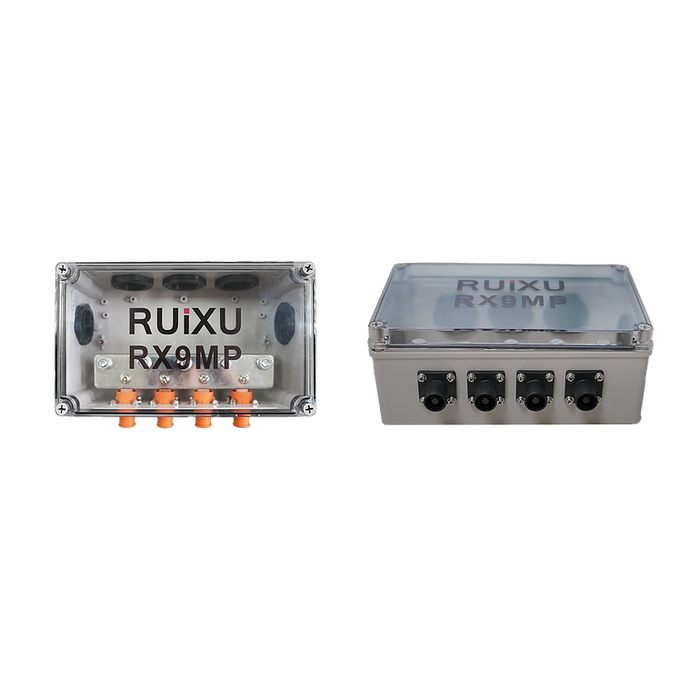

Simplify and secure your high-amperage battery connections with the RUiXU RX9MP Busbar Pair. Rated for a heavy-duty 800A, this kit includes one positive (Orange) and one negative (Black) busbar, housed in waterproof junction boxes. Featuring both standard 5/16" studs and innovative pluggable connectors, these busbars are specifically designed to make installations with RUiXU Lithi2-16 batteries faster, cleaner, and more reliable.

Key Features & Benefits:

  • 800A Heavy-Duty Rating: Built to handle demanding, high-power energy systems.

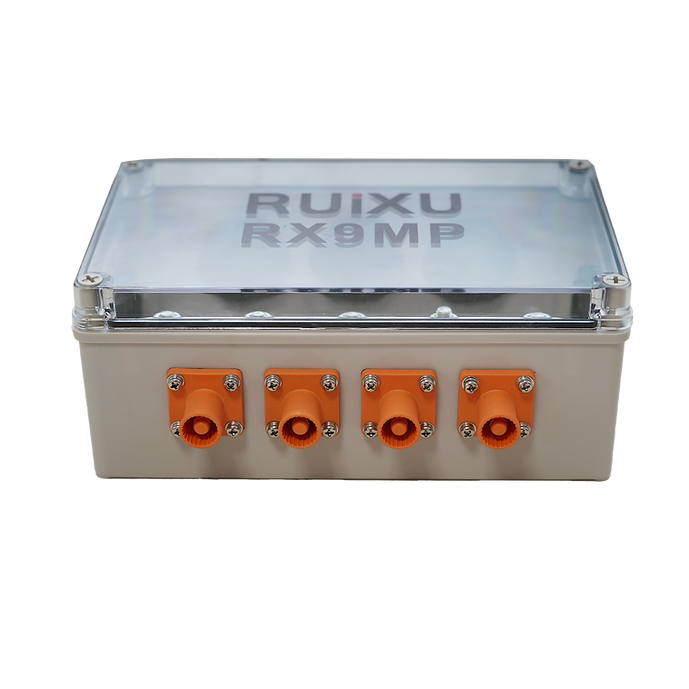

  • Dual Connection Options: Features 5 x 5/16" (M8) stainless steel studs for standard lugs and 4 x Pluggable Battery Pole Connectors for quick-connecting RUiXU Lithi2-16 batteries.
  • Premium Materials: Solid copper nickel-plated busbar plate ensures maximum conductivity and corrosion resistance.
  • Waterproof Junction Box: Each busbar comes in a durable box with waterproof rings to seal connections, making your wiring secure and reliable.
  • Complete Pair: Includes one Orange (Positive) and one Black (Negative) busbar assembly, plus mounting screws for wall installation.

Technical Specifications

Specification Details
Product Name RUiXU RX9MP 800A Busbar (Pair)
SKU RX9MP-BUSBAR-PAIR
Manufacturer RUiXU
Rating 800A
Includes 1x Orange (Positive) Busbar, 1x Black (Negative) Busbar
Terminals (per busbar) 5 x 5/16" (M8) Studs, 4 x Pluggable Battery Pole Connectors
Compatibility RUiXU Lithi2-16 Batteries

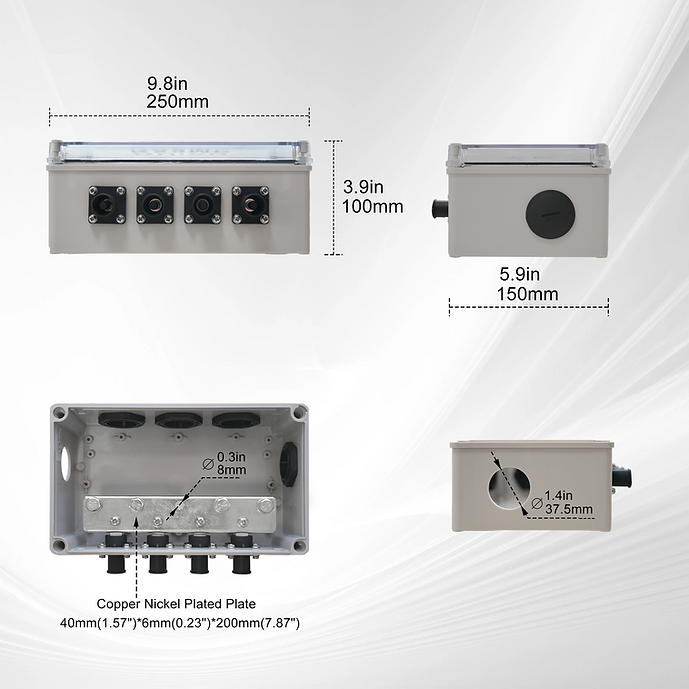

Box Dimensions (L x W x H) 250mm x 150mm x 100mm (9.84" x 5.9" x 3.93")
Busbar Plate (L x W x H) 200mm x 40mm x 6mm (7.87" x 1.57" x 0.23")
Materials Copper Nickel Plated Plate, Stainless Steel Studs
Features Waterproof Junction Box, Wall Mount Screws

The fast and reliable connection for your RUiXU power system.

…

…

…
