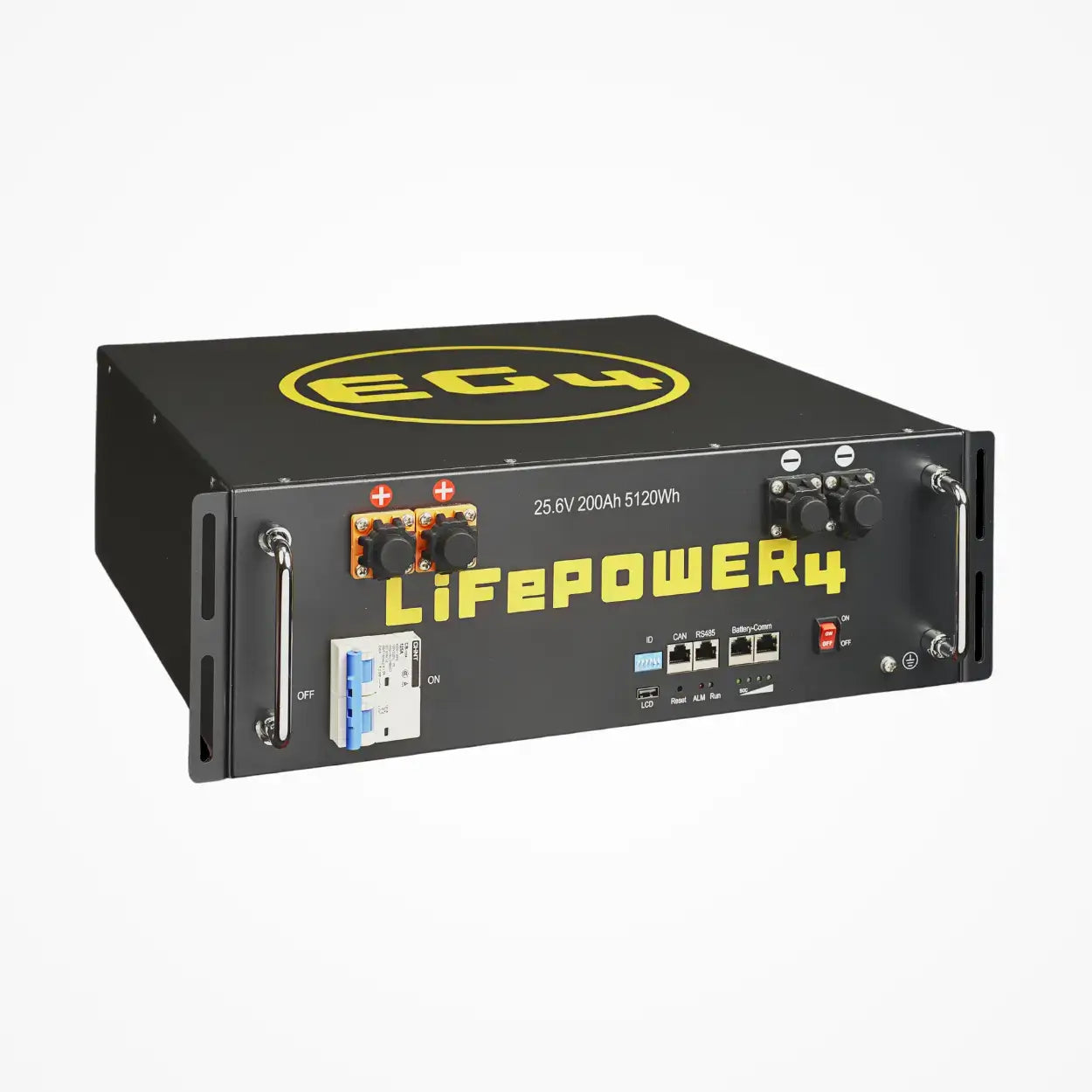

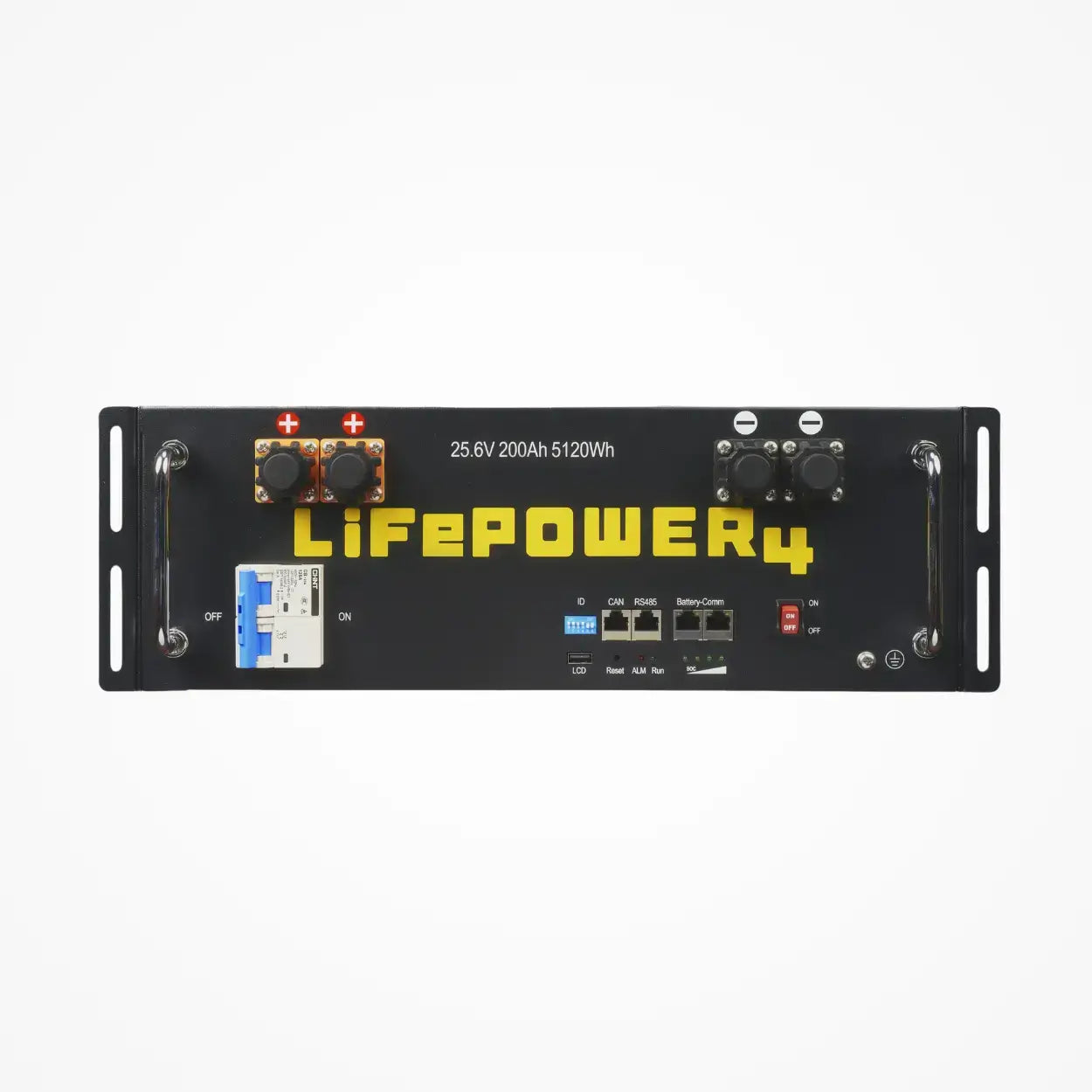

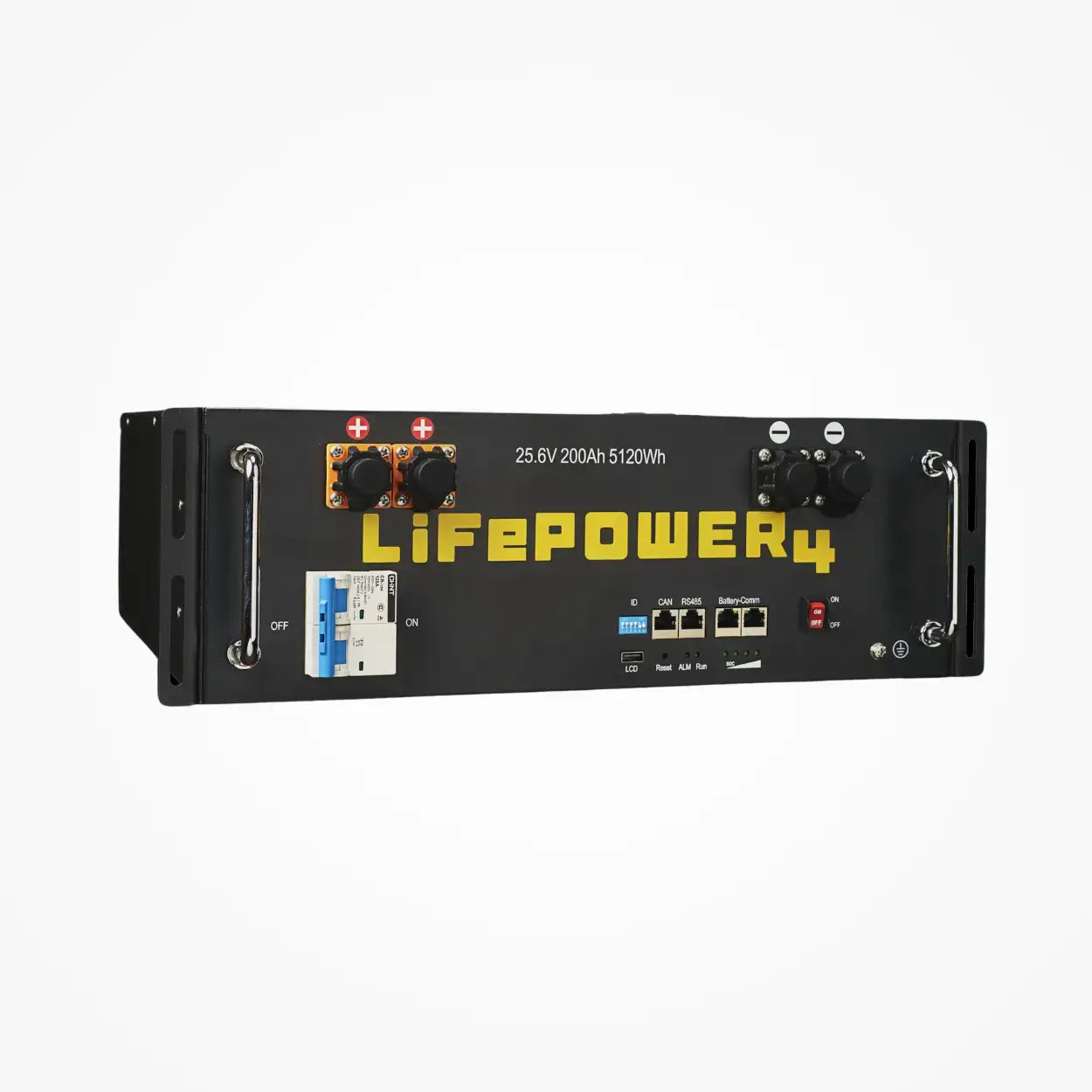

EG4 24V 200AH LifePower4 V2 Lithium Iron Phosphate Battery
EG4 24V 200AH LifePower4 V2 Lithium Iron Phosphate Battery
Buy now, Pay later! Just select
or
at checkout!
Learn more
Couldn't load pickup availability
The EG4 LiFePower4 24V v2 battery retains the robust performance of the original model, now with enhanced features for improved user experience and system integration. Built with 16 UL-recognized 3.2V LiFePO4 cells, this battery provides >6,000 cycles at 80% Depth of Discharge (DoD), a nominal voltage of 25.6V, and a 5.12kWh capacity. Its 200A Battery Management System (BMS) supports parallel connections of up to 64 units, making it adaptable for larger systems.
RS485 and CAN bus compatibility with a six position DIP switch ensures accurate settings of protocols and easy integration with various inverters. The LiFePower4 24V v2 also includes Emergency Stop (E-Stop) and dual fire arrestors for added safety. This battery is backed by a 10-year limited warranty.
Proven Architecture:
Retains the robust design and high performance of its predecessor
BMS Control Switch:
Allows monitoring without voltage at battery terminals
Improved Connections:
Dual terminals now support 2 AWG cables, included with the battery
Enhanced Compatibility:
CAN bus port for Victron closed-loop communication and RS485 for updates
Safety Features:
Dual on-board fire arrestors for added security
Nominal Voltage: 25.6V
Energy Capacity: 5.12kWh
Nominal Capacity: 200Ah
Peak Output: 7,680W for short bursts.
BMS: Internal 200A Battery Management System (BMS)
Certified Cells: 16 UL-recognized 3.2V cells in series.
Closed-Loop Support: Up to 64 batteries
Total Capacity: 327.7kWh
Design Life: Tested for >6,000 deep discharge cycles at 80% Depth of Discharge (DoD)
Dimensions 6.1×19×17.4 in. (155×442×470mm)
Weight: 99.2 lbs. (45kg)
Warranty: 10 year
