WallMount Indoor 100Ah Lithium Battery

Description:

The WallMount Indoor 100Ah Battery offers an efficient and space-saving solution for reliable energy storage. With 5,120Wh of total capacity and 100A max. continuous charging/discharging current, this battery ensures consistent performance for small backup systems and energy storage needs. Its slim, wall-mountable design fits seamlessly into any indoor space, while providing an upgrade path to larger systems as your energy demands grow.

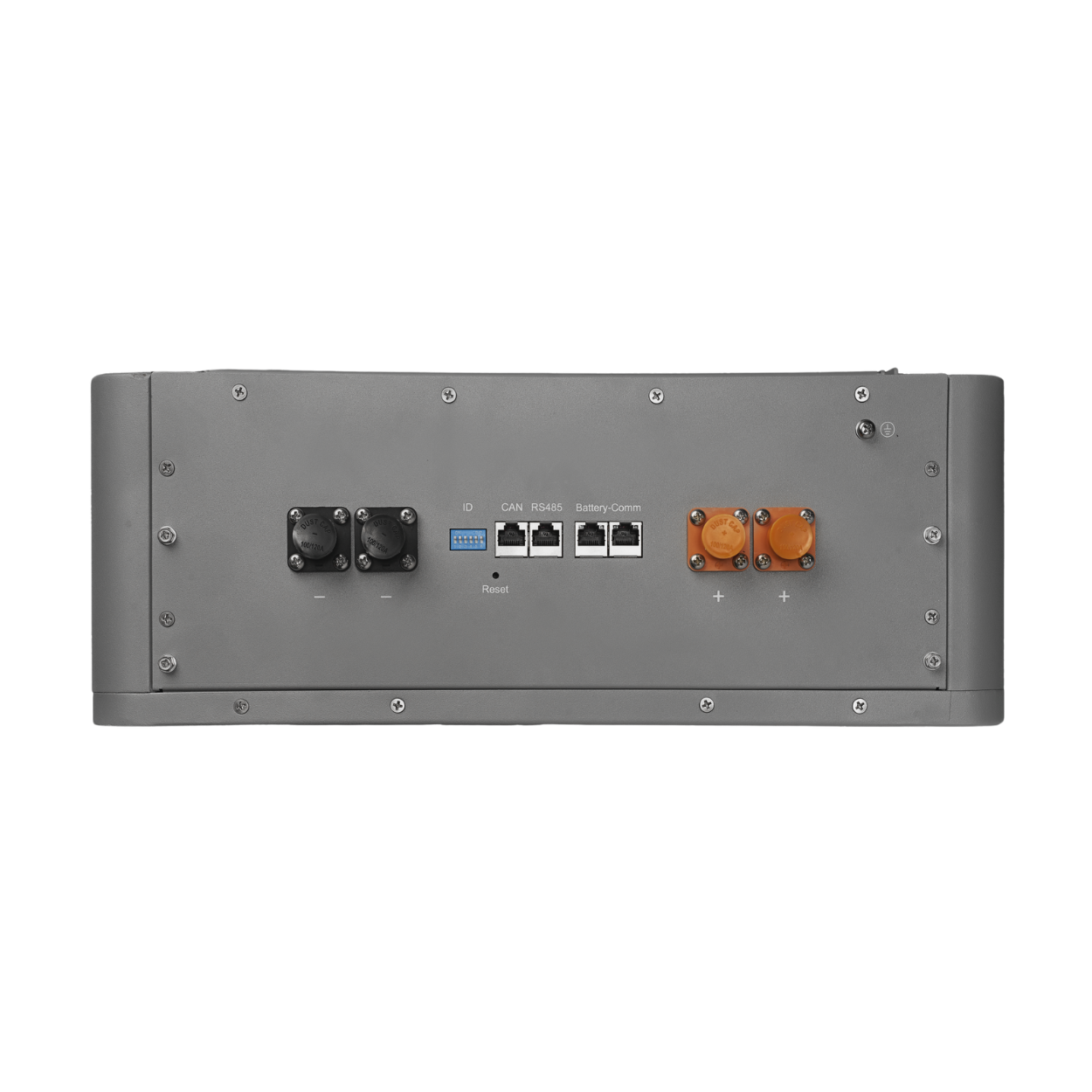

Featuring Degson quick-connect terminals and an optional conduit box, the WallMount Indoor 100Ah simplifies installation with a clean, professional finish. Ideal for pairing with the EG4 6000XP, it delivers dependable energy storage with a focus on convenience and efficiency.

Features & Benefits:

• Long-Term Durability With >6,000 cycles at 0.5C 80% DOD, the battery is built to provide reliable, long-lasting performance.
• Perfect for Critical Load Backup Efficiently stores energy to provide backup power for critical systems during outages.

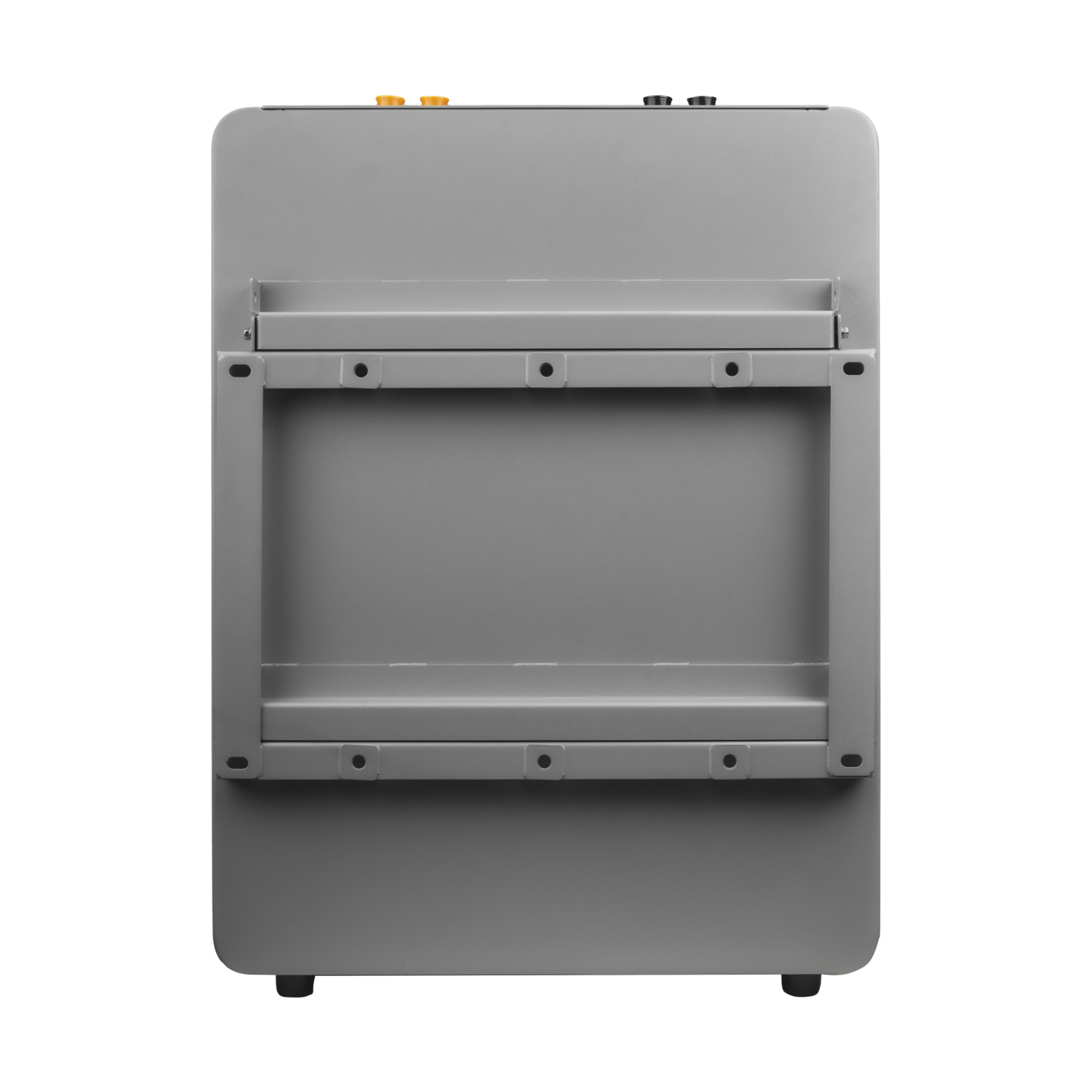

• Sleek, Space-Saving Design Compact, slim profile that fits effortlessly in indoor spaces without sacrificing power.
• Hassle-Free Installation Quick-connect terminals and an optional conduit box for easy, streamlined installation.
• Closed-Loop Communication Ensures seamless integration and communication with the EG4 6000XP for optimized performance.

Key Specifications:

• Voltage: 51.2V
• Capacity: 100Ah
• Design Life: >15 years / 6,000+ deep cycles at 80% DOD
• Certifications: UL 1973 | UL 9540A
• Ingress Protection: IP20

DIMENSIONS

6.5 × 17.8 × 23.2 in. (165 × 453 × 590 mm)

WEIGHT

108 lbs. (49 kg)

*Warranty: 10 years

**For information regarding warranty registration on EG4® Electronics products, please navigate to https://eg4electronics.com/warranty/ and select the corresponding product to begin the registration process.
