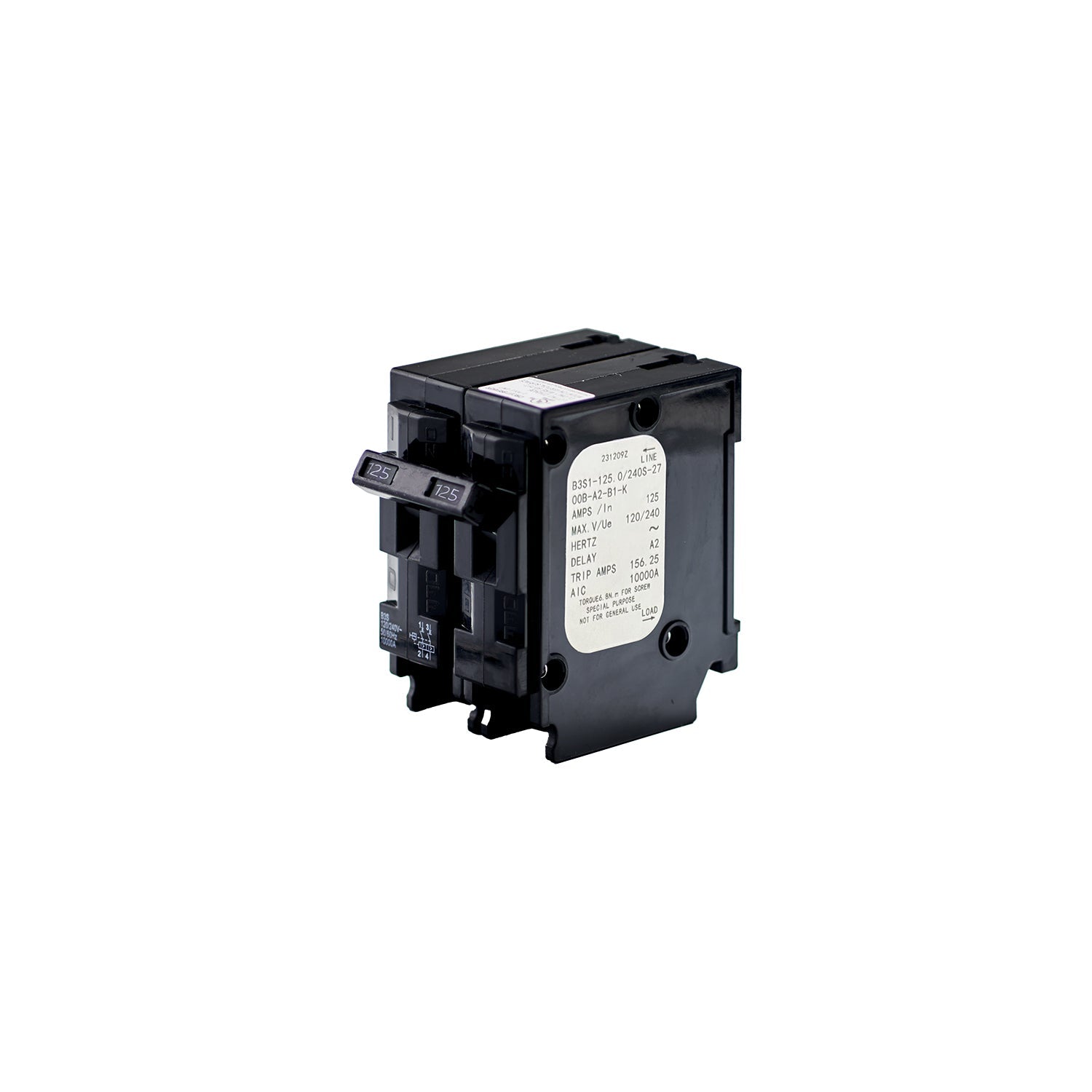

EG4 125A BSB AC Circuit Breaker
EG4 125A BSB AC Circuit Breaker
Maximum Protection for High-Current Smart Port and Generator Applications.
The EG4 125A BSB AC Circuit Breaker is a top-tier safety device engineered to provide uncompromising overload and short-circuit protection for your most demanding high-power circuits. Specifically suited for generator and smart port connections, this breaker is built to handle significant electrical loads in a variety of residential, commercial, and industrial environments. Its robust design and adherence to strict safety standards make it the premier choice for ensuring the safety and reliability of your critical energy systems.
Key Features & Benefits:
- Certified Protection: Meets rigorous UL489, IEC 60947-2, and GB/T 14048.2 standards, ensuring your system is protected by a device that has been thoroughly tested for safety and performance.
- High Interrupting Capacity: With an interrupting capacity of up to 10,000A, this breaker can safely handle significant fault currents, protecting your valuable equipment from catastrophic damage.
- Durable & Long-Lasting: Built for longevity with a mechanical lifecycle of 10,000 cycles and an electrical lifecycle of 6,000 cycles, providing years of dependable service.
- Advanced Safety Features: Incorporates trip-free operation, meaning the breaker will trip internally during an overload event even if the handle is forcibly held in the "ON" position. An indicating handle clearly shows the breaker's status.
- Wide Operating Range: Designed to function reliably in extreme conditions, with a working temperature range of -40°C to +85°C (-40°F to +185°F).
Ideal Applications:
- Generator and Smart Port Connections
- Residential and Commercial Solar Systems
- Industrial Automation Equipment
- Mobile and Temporary Power Setups
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EG4 125A BSB AC Circuit Breaker |
| Manufacturer Part # | EG4B3S1GBBRKR125AV1 |
| Model | B3S Series |
| Application | Smart Port and Generator Breaker |
| Rated Current | 125A |
| Rated Voltage | 120/240V AC |
| Poles | 2 |
| Interrupting Capacity | 10,000A |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Standards Met | UL489, IEC 60947-2, GB/T 14048.2 |
Ensure the safety and longevity of your high-power energy system with the certified protection of the EG4 125A BSB AC Circuit Breaker.
