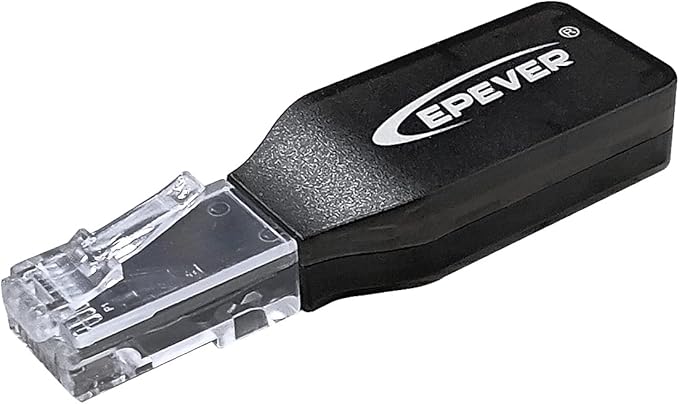

EPEver eBox-BLE-01 Bluetooth Remote Monitor
EPEver eBox-BLE-01 Bluetooth Remote Monitor
Couldn't load pickup availability
Local Wireless Monitoring for Your Solar System.

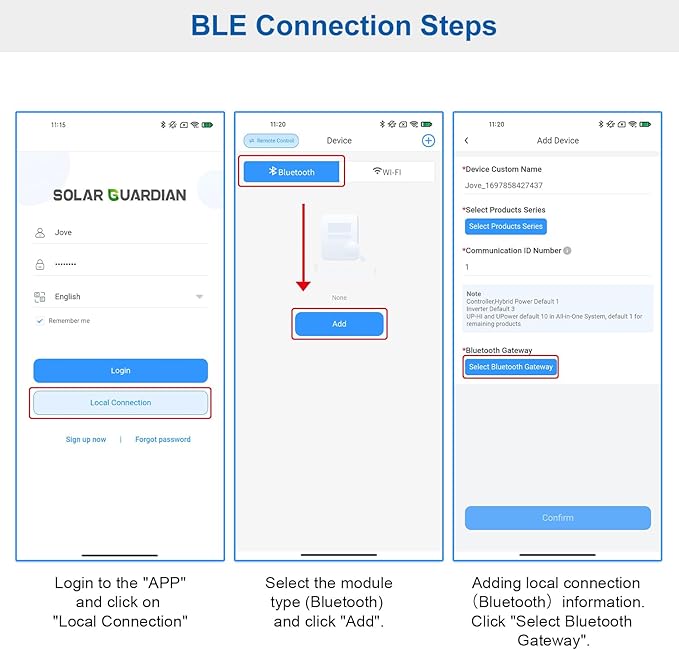

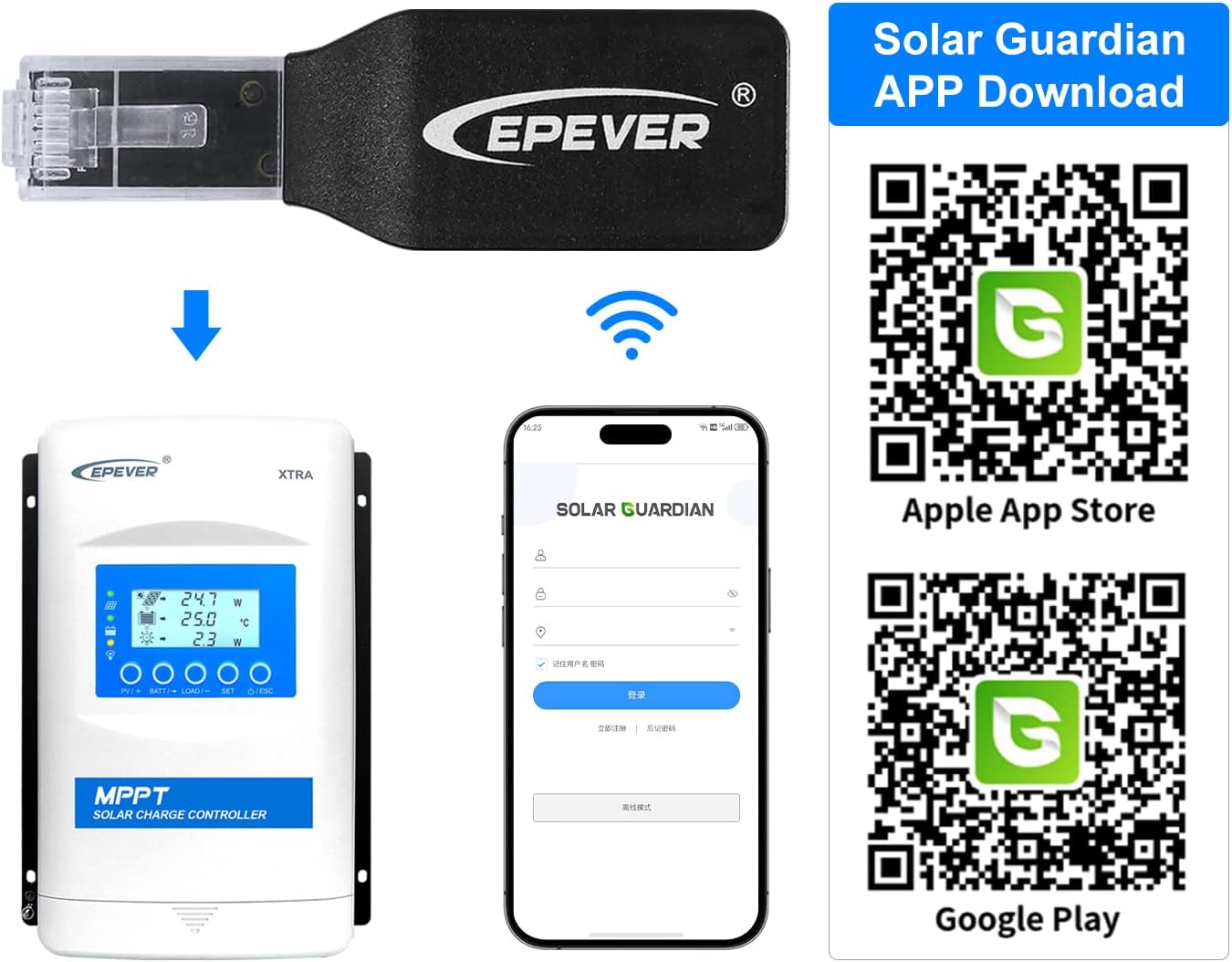

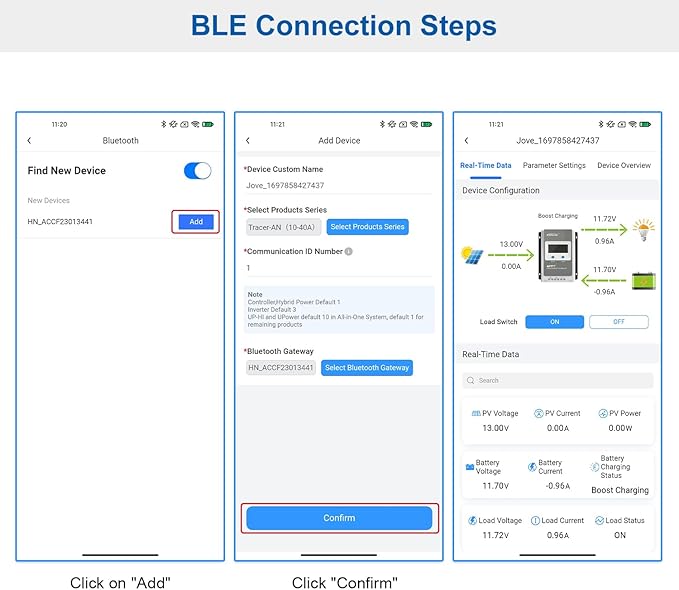

The 2025 model of the EPEVER eBox-BLE-01 is a dedicated Bluetooth adapter that provides a direct, local connection to your EPEVER solar charge controller or inverter. Utilizing advanced Bluetooth 5.0 and BLE (Bluetooth Low Energy) technology, this device enables seamless data collection and wireless programming of your solar components through the 'Solar Guardian' mobile app. It's the perfect plug-and-play solution for convenient, on-site system management without the need for an internet connection.

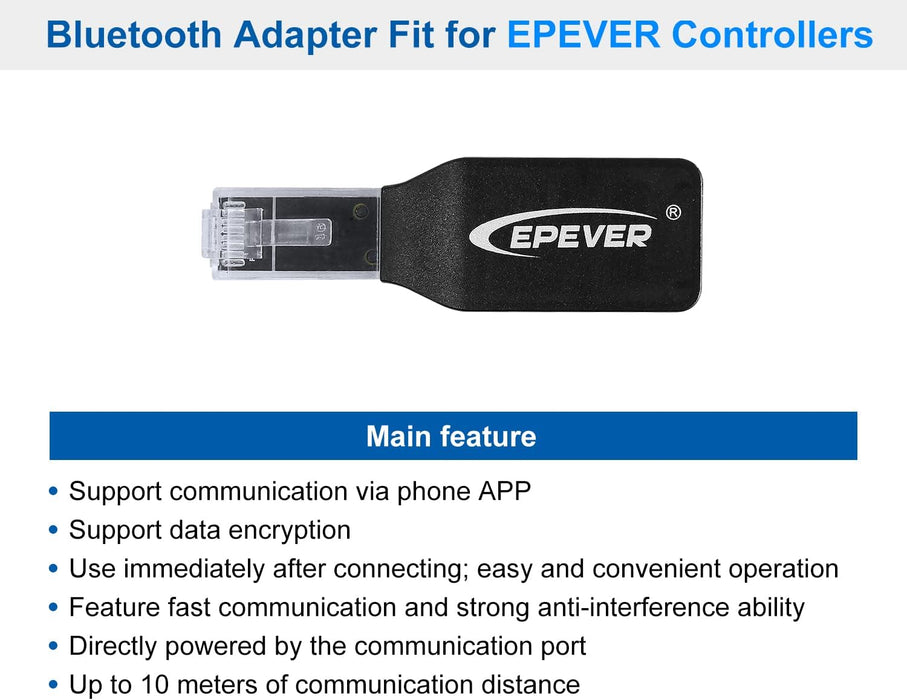

Key Features & Benefits:
- Local Bluetooth Monitoring: Connect directly to your controller within a 10-meter range for real-time data monitoring via the 'Solar Guardian' app.
- Wireless Programming: Conveniently adjust parameters and settings without needing physical access to your devices or a WiFi network.
- Plug-and-Play Installation: Simply connect the adapter to the RJ45 port; it's powered directly by the controller.
- Advanced Connectivity: Features Bluetooth 5.0 for fast, reliable communication and strong anti-interference capability.

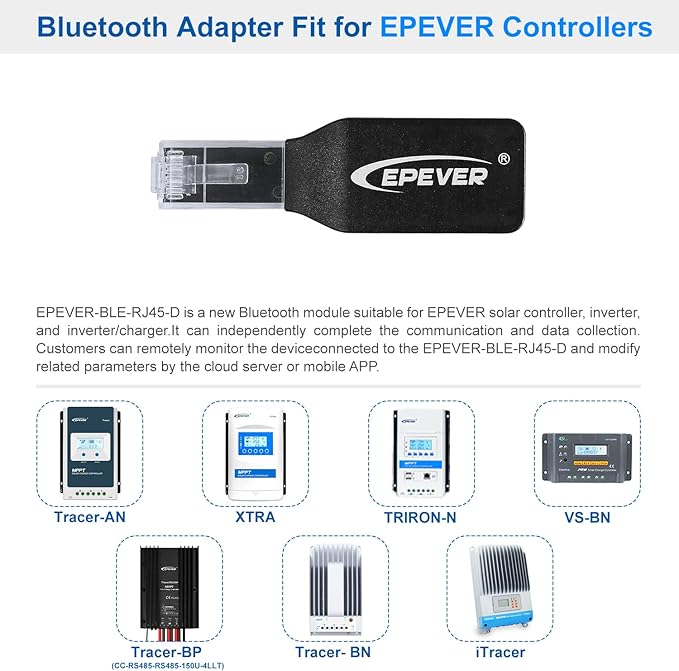

- Wide Compatibility: Designed specifically for EPEVER products, including Tracer-AN, Triron-N, XTRA-N, and Tracer-BN series controllers.
Important Installation Information:
This Bluetooth adapter is designed exclusively for local monitoring and does not support remote cloud or WiFi functionality. It provides a direct wireless link between your mobile device and your EPEVER controller, perfect for on-site diagnostics and adjustments. The 'Solar Guardian' app is available for both Android and iOS devices.

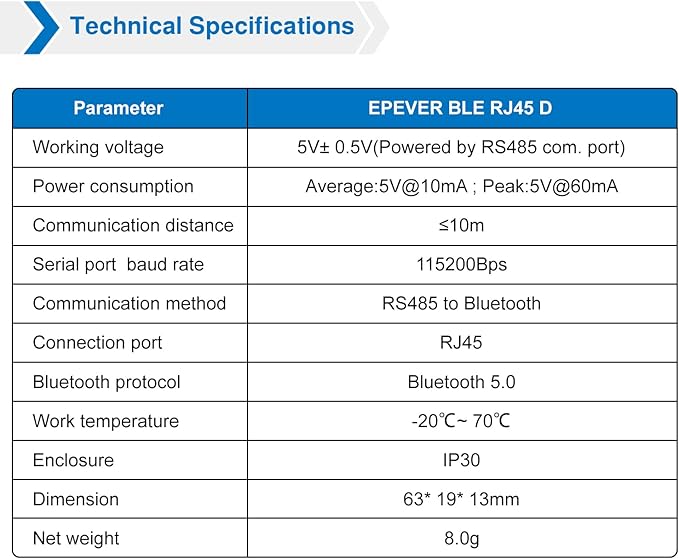

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EPEVER Bluetooth Adapter (eBox-BLE-01) - 2025 Model |
| Manufacturer | EPEVER |

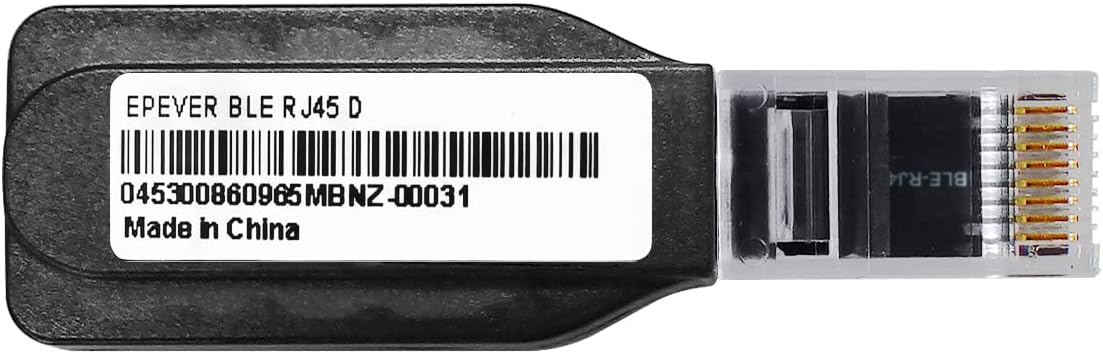

| Manufacturer Part # | EPEVER-BLE-RJ45-D |
| Application | Local Bluetooth Monitoring & Programming |
| Compatibility | EPEVER controllers/inverters with RJ45 port (Tracer-AN/BN, Triron-N, XTRA-N, etc.) |
| Working Voltage | 5V±0.5V (Powered by RS485 Port) |
| Power Consumption | Average: 10mA; Peak: 60mA |
| Bluetooth Protocol | Bluetooth 5.0 (BLE) |
| Communication Distance | ≤ 10m (33 ft) |
| Communication | RS485 to Bluetooth |
| Enclosure | IP30 |
| Dimensions | 63mm x 19mm x 13.8mm |
| Net Weight | 8g |
| Mobile App | Solar Guardian (Android & iOS) |
| Contents | 1 x EPEVER BLE Adapter, 1 x Manual |
The ideal choice for on-site wireless solar system management.
