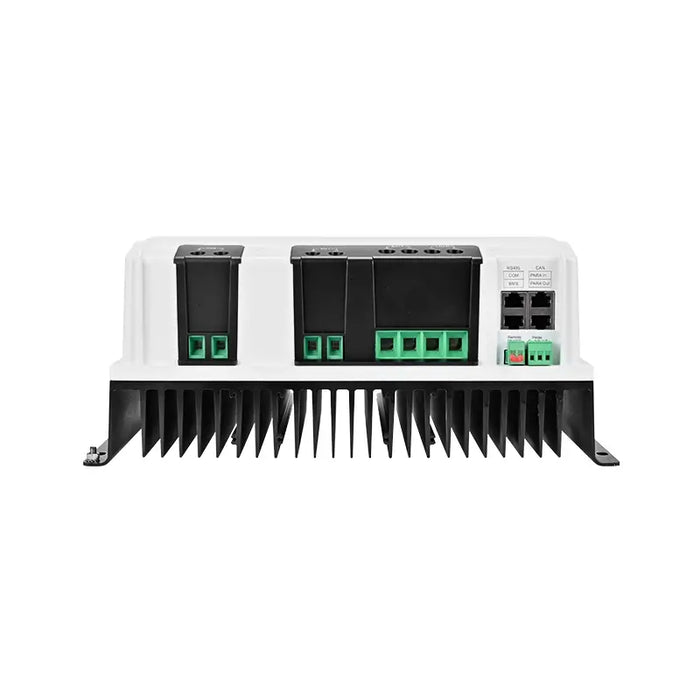

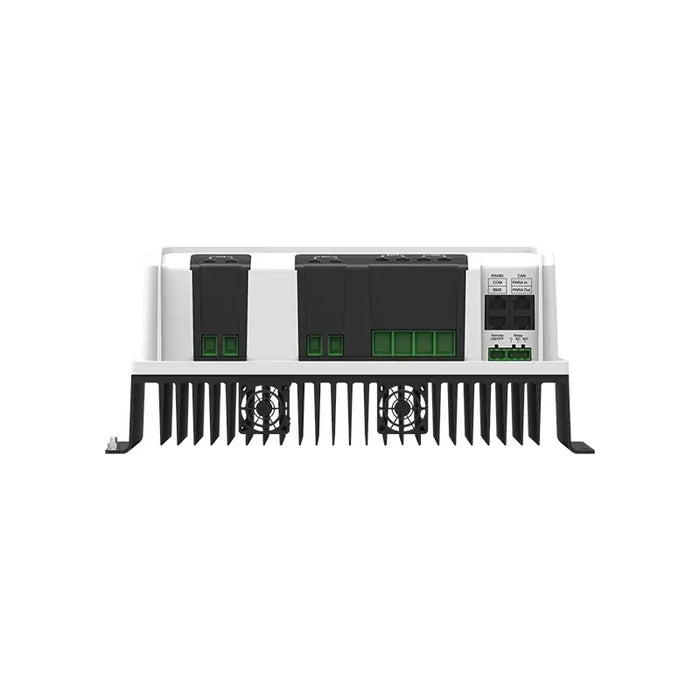

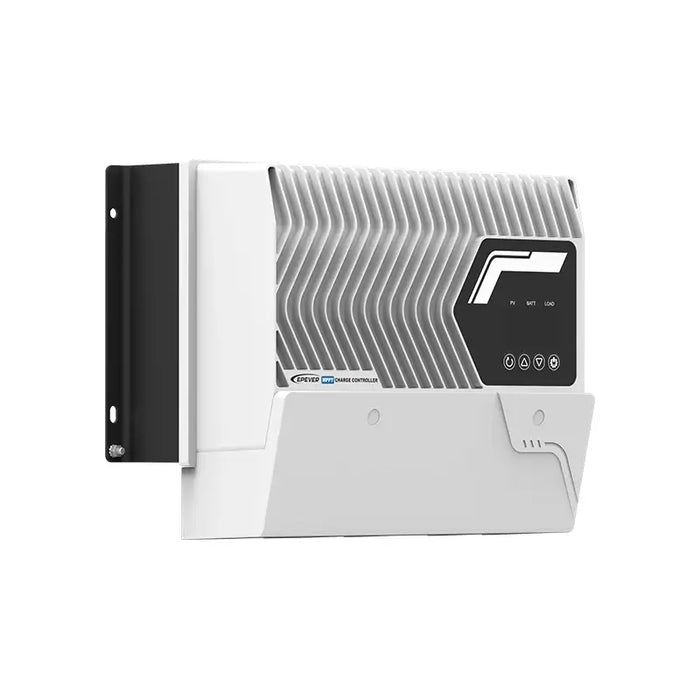

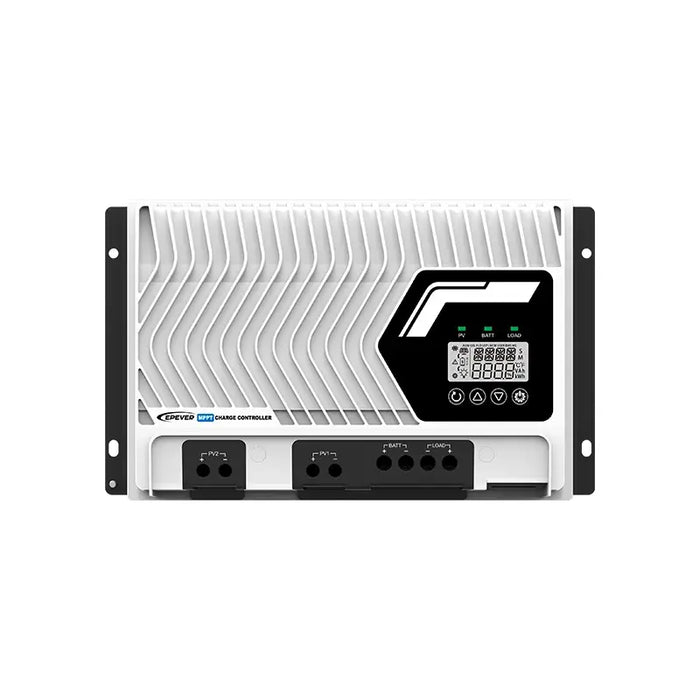

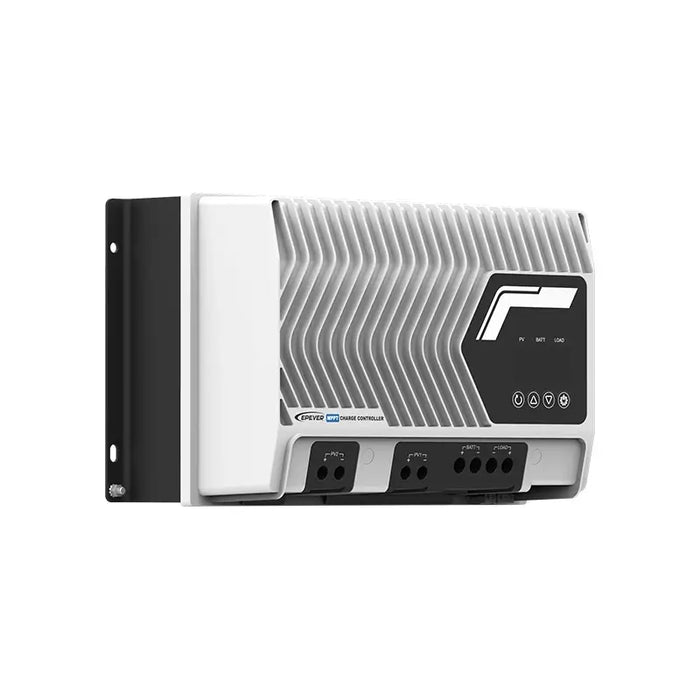

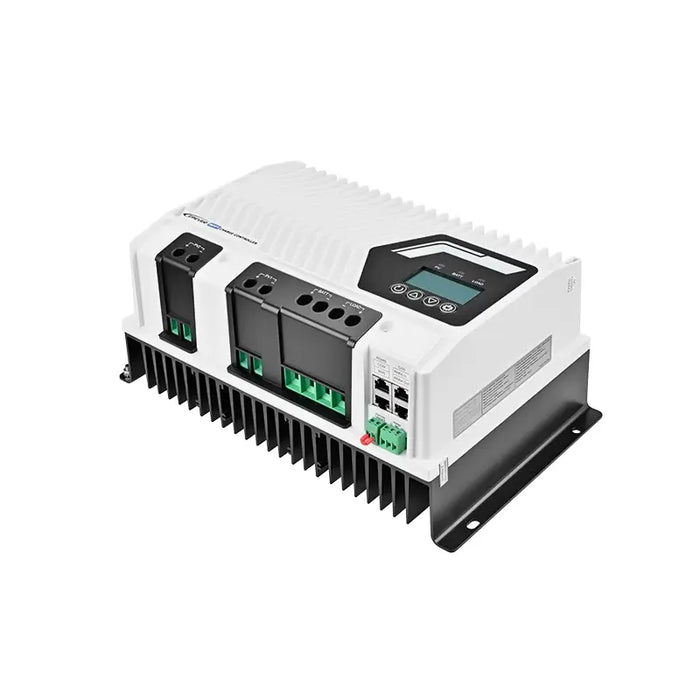

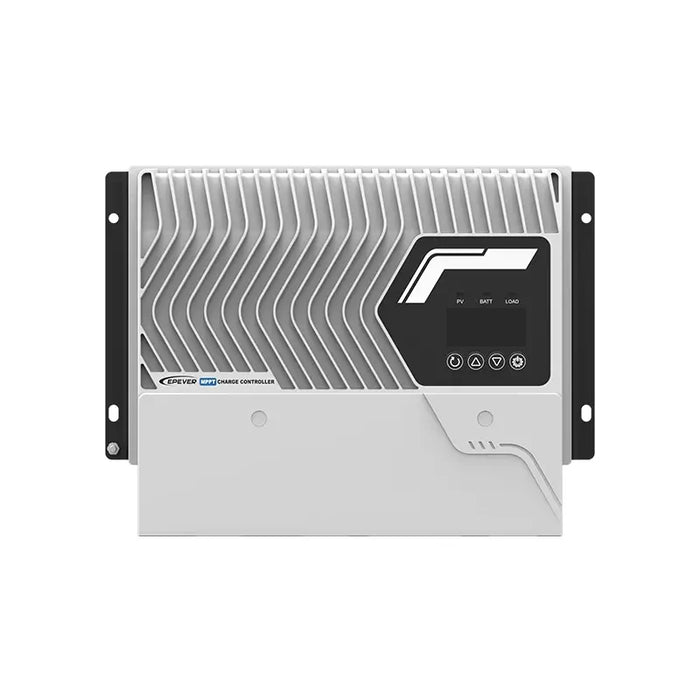

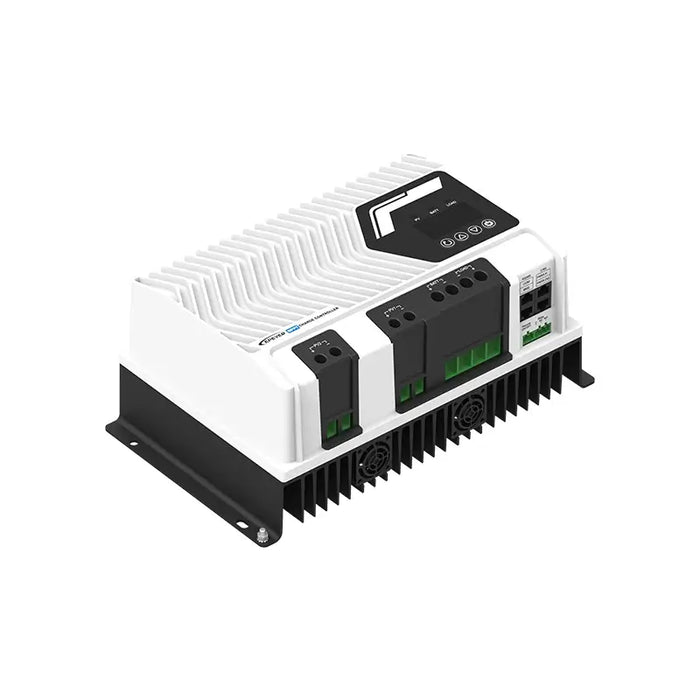

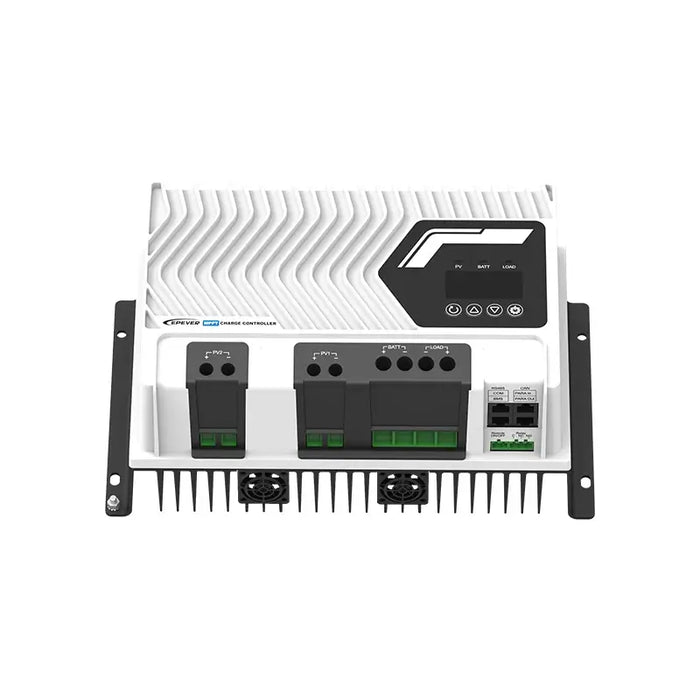

EPEVER iTracer AN G3 60A MPPT Charge Controller
The EPEVER IT-NC G3 Series (60A) is a high-performance Maximum Power Point Tracking (MPPT) solar charge controller designed to ensure the stability and longevity of your off-grid power system. Engineered with a new generation of control algorithms, this unit delivers superior tracking efficiency of up to 99.5%, ensuring you capture the maximum available energy from your solar array even in rapidly changing sunlight conditions. Built with a robust, die-cast aluminum shell, this controller offers excellent heat dissipation without compromising on durability, making it an ideal choice for larger RV setups, marine applications, and off-grid cabins.
This "G3" (Generation 3) model has been optimized for modern energy storage, offering full compatibility with Lead-acid (AGM, Gel, Flooded) and Lithium batteries (LiFePO4, Li-NiCoMn). It features independent voltage stabilization, allowing the load output to function correctly even if the battery is disconnected (provided adequate PV input exists). With comprehensive electronic protections against reverse polarity, overcharging, and overheating, the iTracer AN G3 provides professional-grade reliability for your critical power needs.
Key Features & Benefits:
- Advanced MPPT Technology: Ultra-fast tracking speed and guaranteed tracking efficiency of ≥99.5% to maximize solar yield.
- High Conversion Efficiency: Achieves a peak conversion efficiency of 98.6% with full-load efficiency up to 98%.
- Broad Compatibility: Supports 12V, 24V, and 48V battery systems with auto-recognition (36V and 48V supported manually).
- Lithium Ready: Features self-activation for lithium batteries and robust BMS protection logic.
- Dual Load Control: Includes a programmable DC load output for controlling lights or small appliances directly.
- Communication Ports: Equipped with isolated RS485 and CAN ports for parallel operation and remote monitoring (modules sold separately).
- Power Limiting Protection: Automatically limits charging power to the rated value if the PV array exceeds the controller's capacity, preventing damage.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | iTracer AN G3 60A MPPT |
| Manufacturer | EPEVER |
| Manufacturer Part # | IT6415NC G3 |
| Rated Charge Current | 60A |
| System Voltage | 12V / 24V / 48V DC (Auto or User Selectable) |
| Max PV Open Circuit Voltage | 150V (at minimum operating temperature) |
| Max PV Input Power | 780W (12V) / 1560W (24V) / 3120W (48V) |
| Battery Types Supported | Sealed (AGM), Gel, Flooded, Lithium (LiFePO4/Li-NiCoMn), User |
| Self-Consumption | ≤ 46mA (48V System) |
| Grounding | Common Negative |
| Communication | RS485, CAN (Isolated) |
| Terminal Size | 6 AWG (16mm²) |
| IP Rating | IP32 (IP43 with optional terminal cover) |
| Dimensions | 320 x 212 x 134 mm (12.6 x 8.3 x 5.3 in) |
Reliable Power Management for Serious Off-Grid Systems
