Unlock Remote Monitoring for Your Solar System.

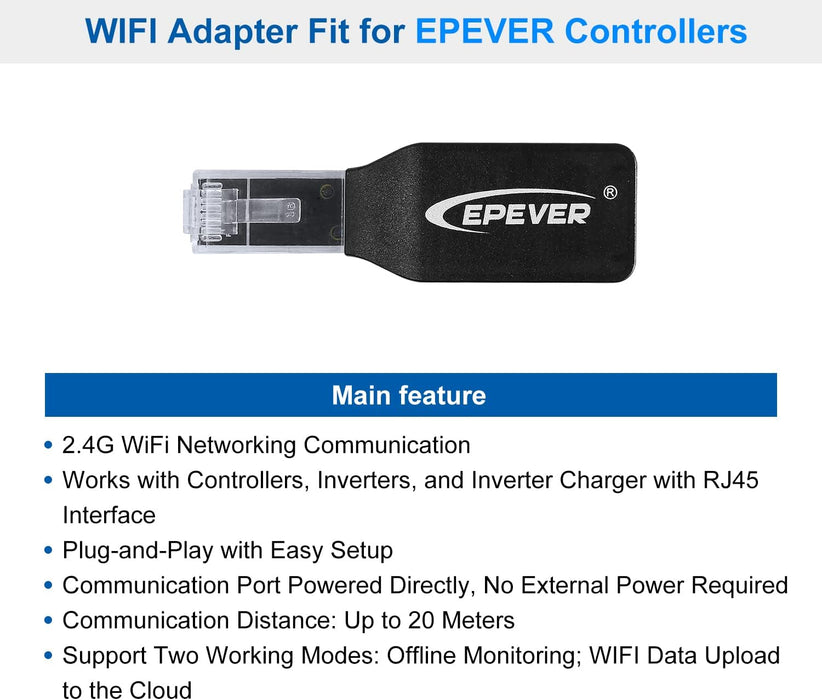

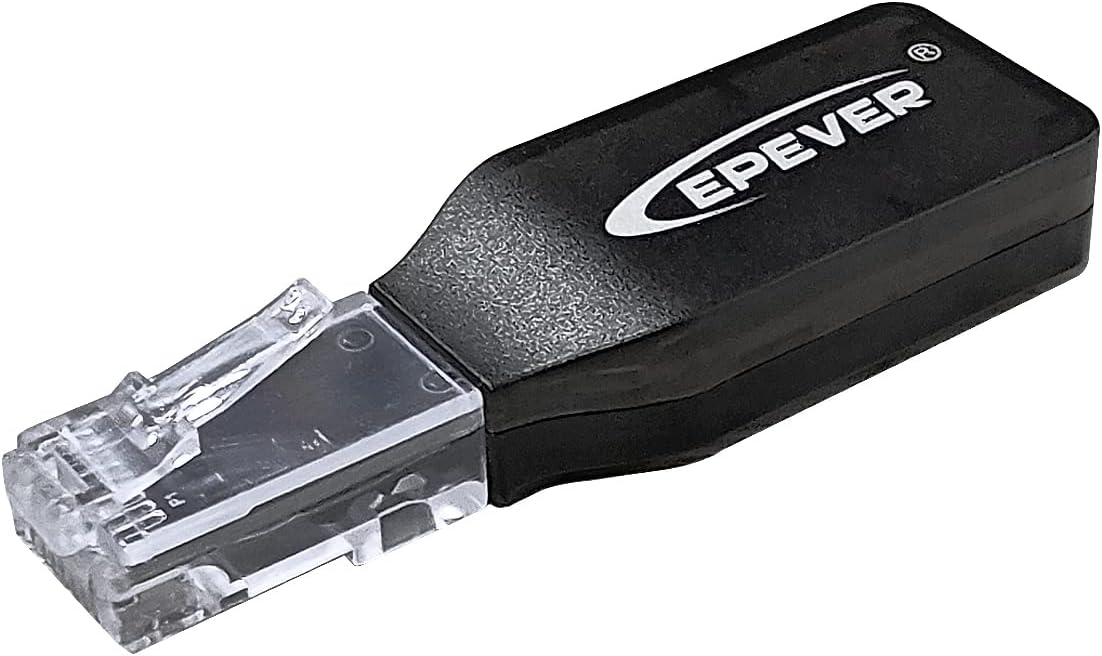

The 2025 model of the EPEVER eBox-WIFI-01 is a powerful adapter that allows you to connect your EPEVER solar charge controller, inverter, or inverter/charger to the cloud. By utilizing your local 2.4G WiFi network, this device transmits real-time operational data, enabling you to monitor performance and program parameters from anywhere in the world using the EPEVER mobile app. It's a plug-and-play solution for modern, convenient solar system management.
Key Features & Benefits:
- Remote Cloud Monitoring: Access your solar system's data and performance metrics from anywhere via the 'Solar Guardian' mobile app.
- Wireless Programming: Conveniently adjust parameters and settings without needing physical access to your devices.

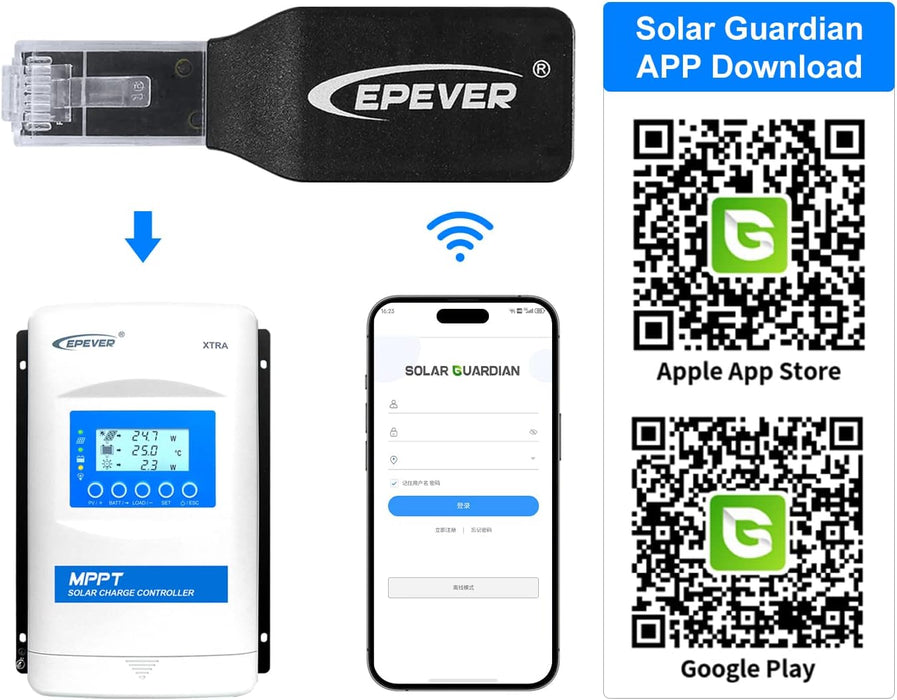

- Plug-and-Play Installation: Simply connect the adapter to the RJ45 port; it's powered directly by the controller, requiring no extra cables.

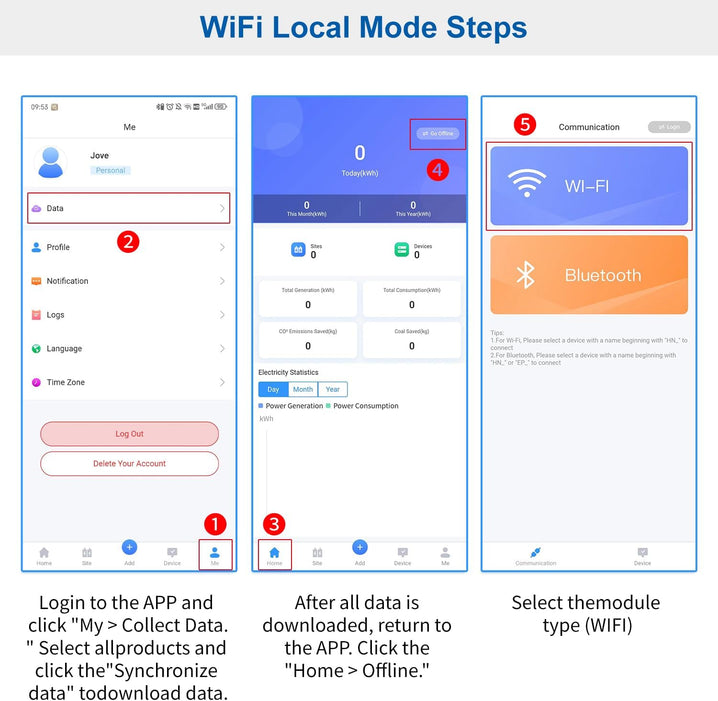

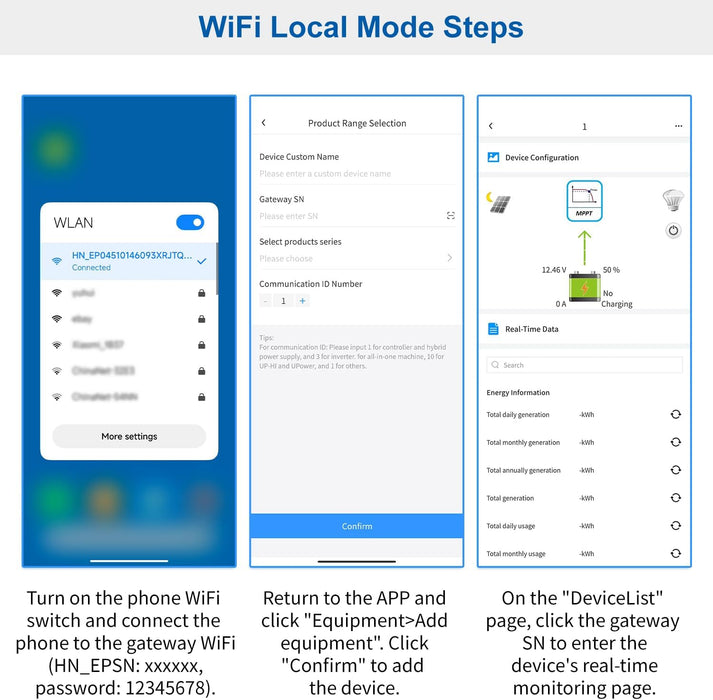

- Dual-Mode Functionality: Supports local offline monitoring within a 20-meter range and a full-featured online mode for remote cloud access.

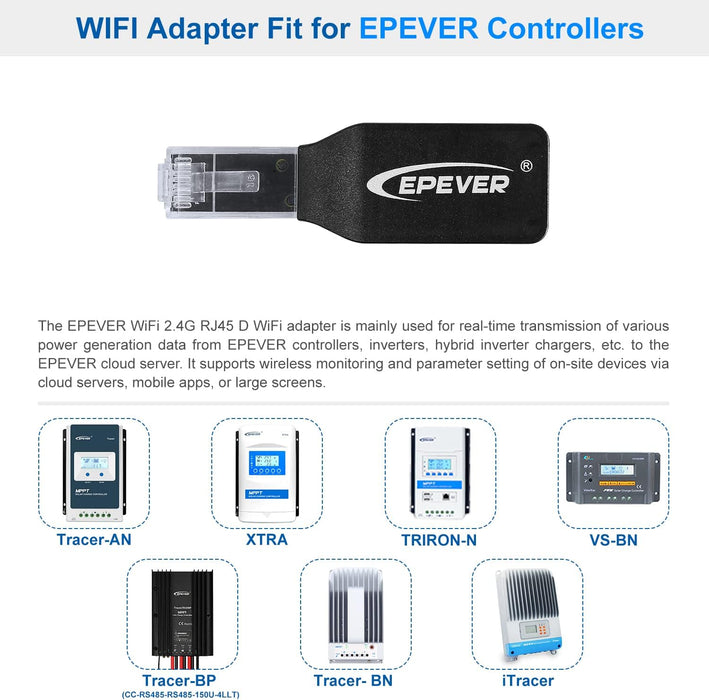

- Wide Compatibility: Designed specifically for EPEVER products, including Tracer-AN, Triron-N, XTRA-N, and Tracer-BN series controllers.
Important Installation Information:

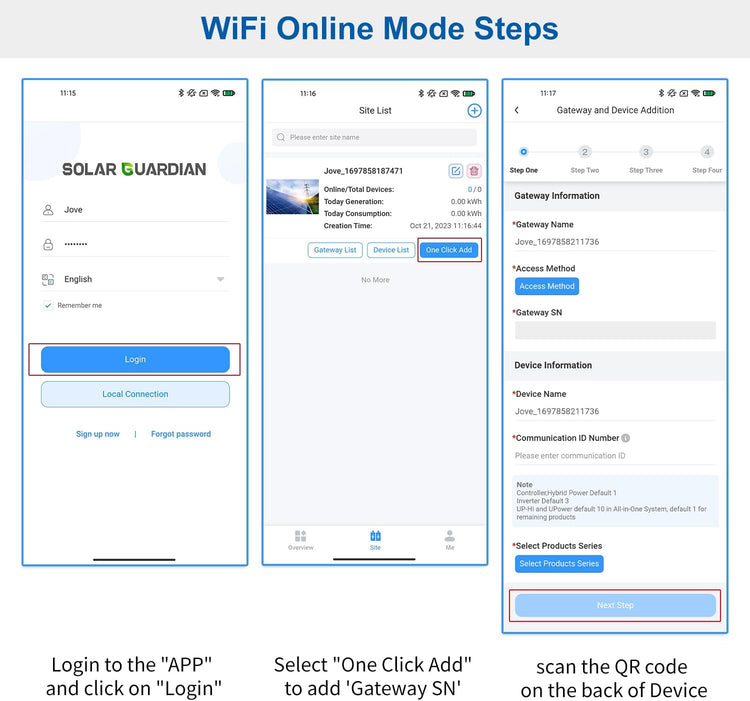

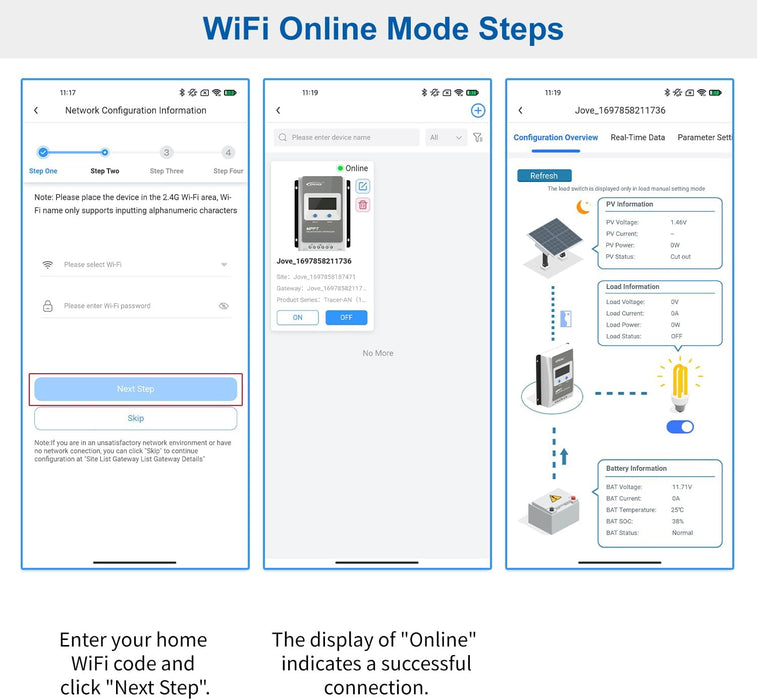

This WiFi adapter is designed exclusively for EPEVER brand controllers and inverters equipped with an RJ45 communication port. For the initial setup of the online cloud mode, it is highly recommended to watch the video tutorials to ensure a smooth connection process. The 'Solar Guardian' app is available for both Android and iOS devices.

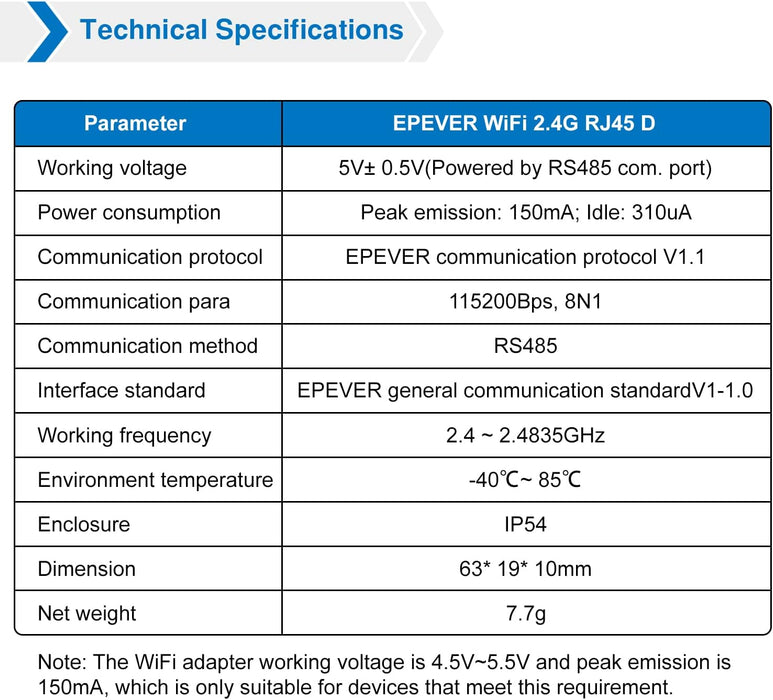

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | EPEVER WiFi Adapter (eBox-WIFI-01) - 2025 Model |
| Manufacturer | EPEVER |
| Manufacturer Part # | EPEVER-WiFi-2.4G-RJ45-D |
| Application | Remote WiFi Monitoring & Programming |
| Compatibility | EPEVER controllers/inverters with RJ45 port (Tracer-AN/BN, Triron-N, XTRA-N, etc.) |
| Working Voltage | 5V±0.5V (Powered by RS485 Port) |
| Power Consumption | Peak: 150mA; Idle: 310uA |
| Work Frequency | 2.4 ~ 2.4835GHz |
| Communication | RS485 |
| Enclosure | IP30 |
| Dimensions | 63mm x 19mm x 10mm |
| Net Weight | 7.7g |
| Mobile App | Solar Guardian (Android & iOS) |
| Contents | 1 x EPEVER WiFi Adapter, 1 x Manual |
The smart, simple way to manage your EPEVER solar system.
