MidNite Solar Powerflo5 48V Server Rack Battery - MNPOWERFLOW5
UL 1973, UL 9540, and UL 9540A certified!
Intelligent, Seamless, and High-Performance Energy Storage for Your Advanced Solar System.
The new MidNite MNPowerflo5 Lithium Iron Phosphate server rack battery redefines home and off-grid energy storage, offering unparalleled ease of integration and robust performance. Designed for seamless closed-loop operation with MidNite's MNROSIE and MN15-12K-AIO inverters, this battery also integrates effortlessly with any inverter supporting the Pylontech communication protocol. Built with premium Grade A+ Eve cells, the Powerflo5 is engineered for superior longevity and reliability.
Unmatched Simplicity and Integration:
- Truly Plug-and-Play: Experience unparalleled ease of installation. With no dip switches to set or complex programming required, simply connect the communication cable, and the system is ready to operate.
- Unified System Monitoring: The MidNite Pro app provides a comprehensive, single-point view of your entire energy system. Monitor the status of your charger, inverter, loads, MPPTs, and battery all from one intuitive interface, eliminating the need to access multiple platforms.
- Seamless Firmware Updates: Say goodbye to compatibility issues during system updates. MidNite Solar ensures fully tested, glitch-free firmware updates for both battery and inverter, allowing for continuous access to new features and enhancements with complete peace of mind.
- Versatile: The MNPowerflo5 is compatible with standard 19" server rack configurations, but also includes corner brackets which can be installed to used for stand-alone or stacking of multiple batteries without the added expense of a server rack!
Robust Performance and Advanced Features:
- High-Capacity LFP Technology: Features a 51.2V nominal voltage with 100Ah (5,120Wh) capacity, utilizing durable Lithium Iron Phosphate (LFP) chemistry for stable and efficient power delivery.
- Exceptional Cycle Life: Designed for long-term reliability with an impressive 6000 cycles at 77°F (25°C), ensuring over a decade of dependable performance.

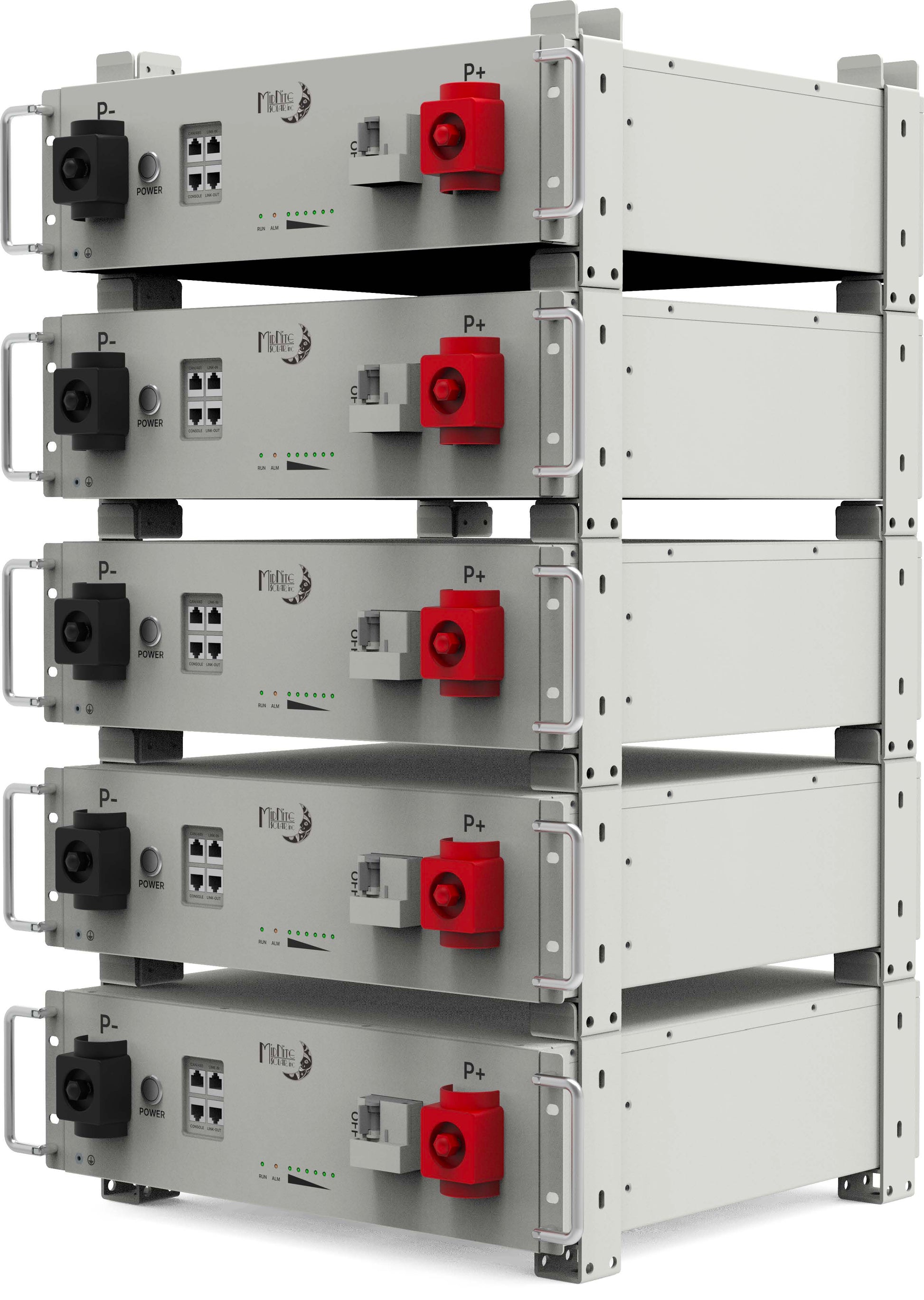

- Scalable Architecture: Easily expand your energy storage by stacking up to 16 units, providing immense capacity for diverse energy demands.
- Efficient Power Delivery: Offers a nominal discharge and charge current of 75A, with a maximum discharge current of 100A, capable of handling significant power loads.
- Intelligent Communications: Supports CAN, RS485, and RS232 communication protocols for robust system integration.
- Low Idle Draw: Consumes less than 35mA in idle mode, optimizing energy retention.
- Built for Durability: Features a natural convection cooling system and is rated Indoor Type 1 (IP20), with a non-heated operating temperature range of 32°F to 122°F (0°C to 50°C).
- Certified Safety: Complies with stringent industry standards including UL 1973, UL 9540A, and UL 9540 for assured safety and reliability.
- Real-Time Monitoring and Control: Access and manage your system remotely through MidNite Solar's web-based app, or view inverter performance directly from its built-in display. MidNite's commitment to innovation ensures ongoing product adaptations based on customer feedback, delivering cutting-edge, reliable solar solutions.
Ideal for advanced home energy systems, off-grid cabins, and backup power solutions, the MidNite Solar Powerflo5 battery offers unparalleled performance, ease of use, and future-proof design.
Key Features and Benefits:
- 51.2V Nominal
- 100Ah capacity
- Absorb Voltage 56.4V, Absorb Time 5 minutes, Float Voltage 54V
- 5,120Wh capacity
- LFP Lithium Iron Phosphate
- 6000 Cycles @ 77F (25C), 0.5C / 0.5C
- Communication using Can / RS485 / RS232
- Stack up to 16 units
- =< 35mA idle draw
- Nominal Discharge Current 75A
- Nominal Charge Current 75A
- Max Discharge Current 100A
- Indoor Type 1 rated, IP20
- Non Heated Operating temperature 32F to 122F (0C to 50C)
- Storage temperature 14F to 113F (-10C to 45C)
- Max Altitude 9,843 feet (3,000 m)
- Natural convection cooling
- Rack mount installation
- Passive Balancing
- Compliance UL 1973,UL 9540A, UL 9540
