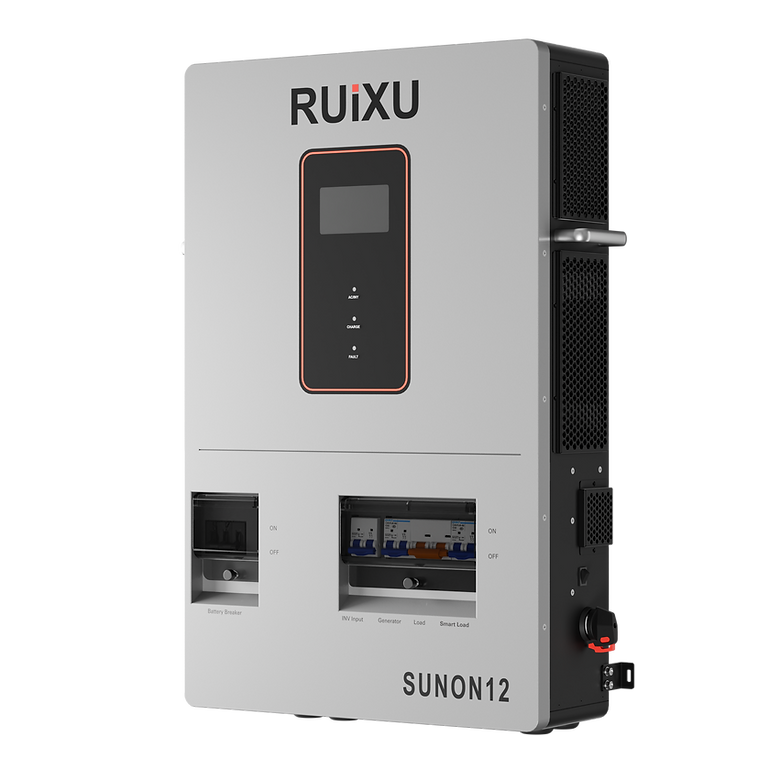

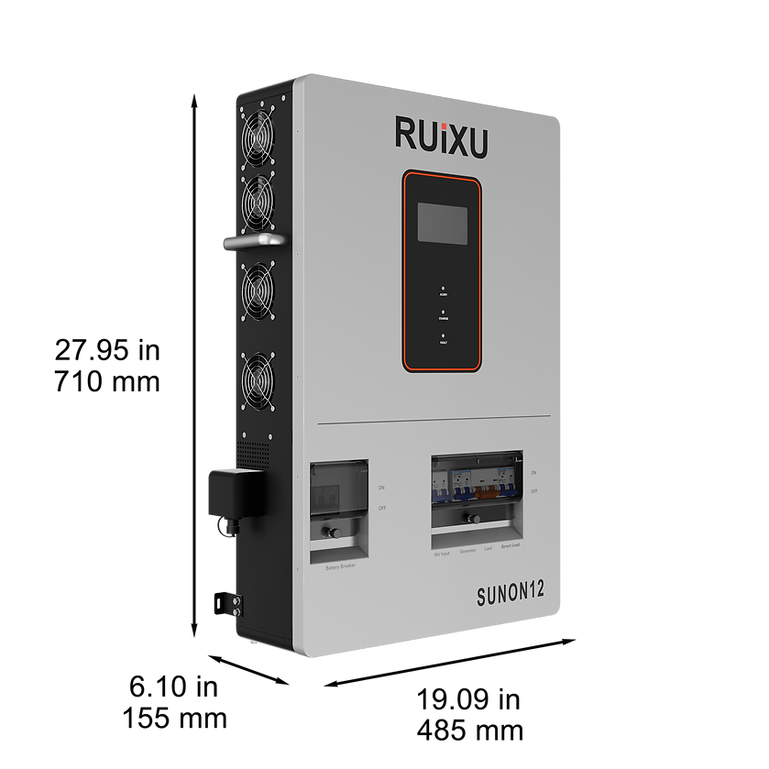

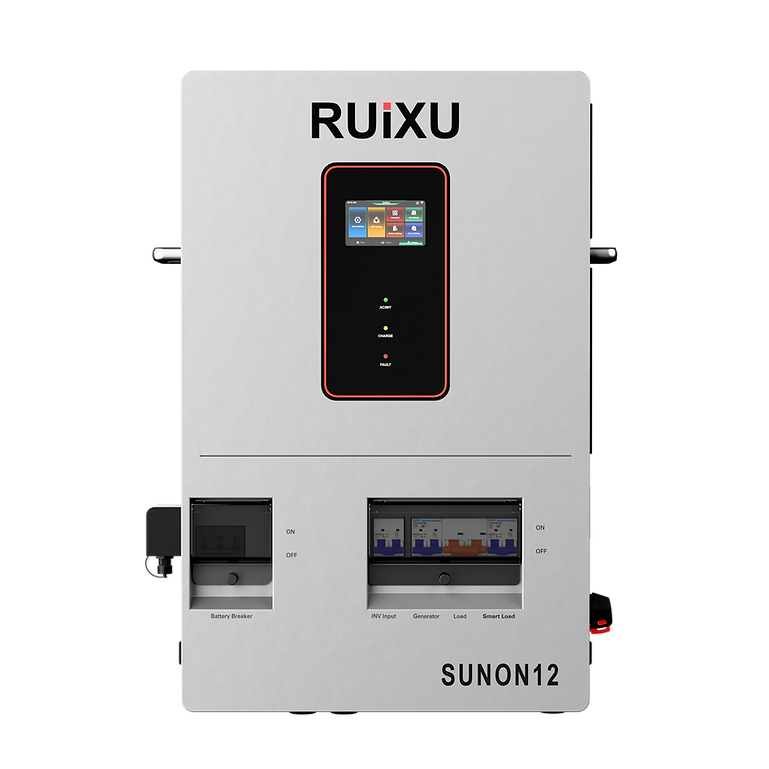

RUiXU SUNON12 12kW Off-Grid Inverter
Run your entire home, workshop, or off-grid property without worrying about overloading your power system. The RUiXU SUNON12 delivers 12,000W of clean 120V and 240V household electricity—enough muscle to power central air conditioning, well water pumps, full-size refrigerators, and heavy tools at the same time.
The SUNON12 comes ready with built-in circuit breakers for your battery, home loads, and generator. Pair it with any 48V battery bank for fast solar charging, seamless outage backup, and easy phone monitoring.
- Whole-Home 120V & 240V Power: Delivers 12,000W continuous power and an 18,000VA surge to easily start heavy appliances and motors up to 6 HP without tripping.
- Built-In Breakers Save Money & Install Time: Battery, main load, smart load, and generator circuit breakers are already built inside the unit—saving hundreds on extra electrical boxes.
- Massive 24,000W Solar Panel Capacity: Dual solar inputs let you hook up plenty of panels so your batteries still recharge quickly during short, overcast winter days.
- Flicker-Free Backup & Auto Generator Start: Switches to battery power in 10 milliseconds so your Wi-Fi and TV won't even blink, and automatically starts your backup generator when batteries get low.
- Phone Monitoring & Room to Grow: Includes a plug-in Wi-Fi dongle to track your power from anywhere, plus you can link up to 6 units together for up to 72kW as your power needs grow.
- 1× RUiXU SUNON12 12kW Off-Grid Inverter with Built-In Circuit Breakers
- 1× Plug-In Wi-Fi Monitoring Module & 6.5 ft Battery Communication Cable
- 1× Heavy-Duty Wall Mounting Bracket Kit, Hole Template & Anchor Hardware
- 4× SC70-8 Copper Battery Lugs, Allen Wrenches & User Manual
| Model & Certification | RUiXU SUNON12 • UL 1741 & FCC Certified |
| Continuous / Surge Output | 12,000W Continuous • 18,000VA Peak • Starts up to 6 HP Motors |
| AC Output Voltage | 120V / 240V Split-Phase, 60Hz • Pure Sine Wave |
| Max Solar Panel Input | 24,000W Total • Dual MPPT • 90–450V DC Operating • 500V Max |
| Battery Compatibility | 48V Lithium-Ion & Lead-Acid • 250A Max Combined Charging |
| Built-In Circuit Breakers | 300A Battery • 125A Main Load • 63A Smart Load • 63A Generator |
| Backup Speed & Expansion | 10 ms UPS Switchover • Link up to 6 Units for 72kW Total |
| Smart & Safety Features | 60A Smart Load / AC-Coupling Port • Auto Gen Start • Built-In RSD & AFCI |
| Operating Temperature | 14°F to 131°F / -10°C to 55°C • Indoor Rated IP20 |
| Dimensions | 30.9" H × 19.1" W × 6.3" D • 785 × 485 × 161 mm |
| Net Weight | 84.9 lbs • 38.5 kg |
