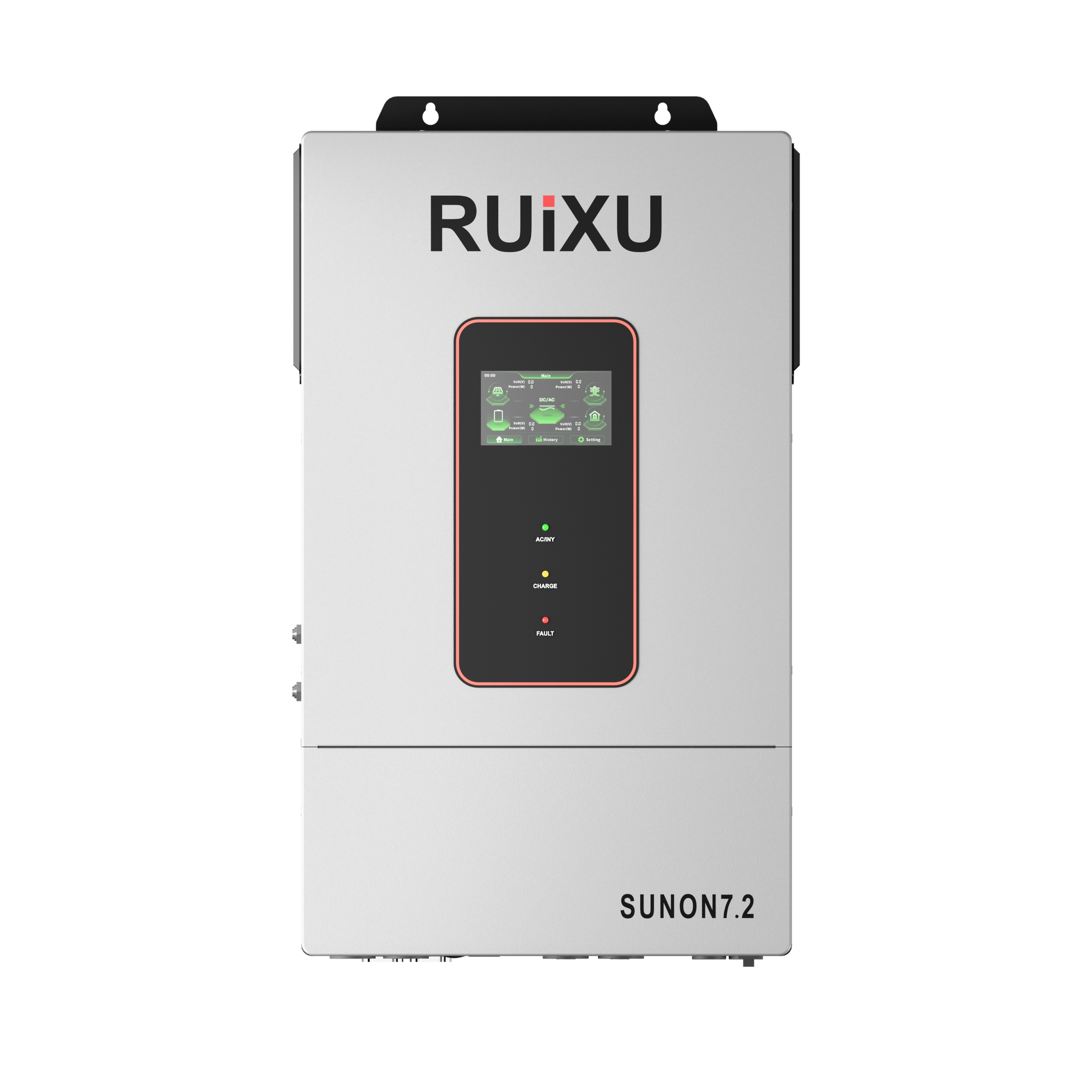

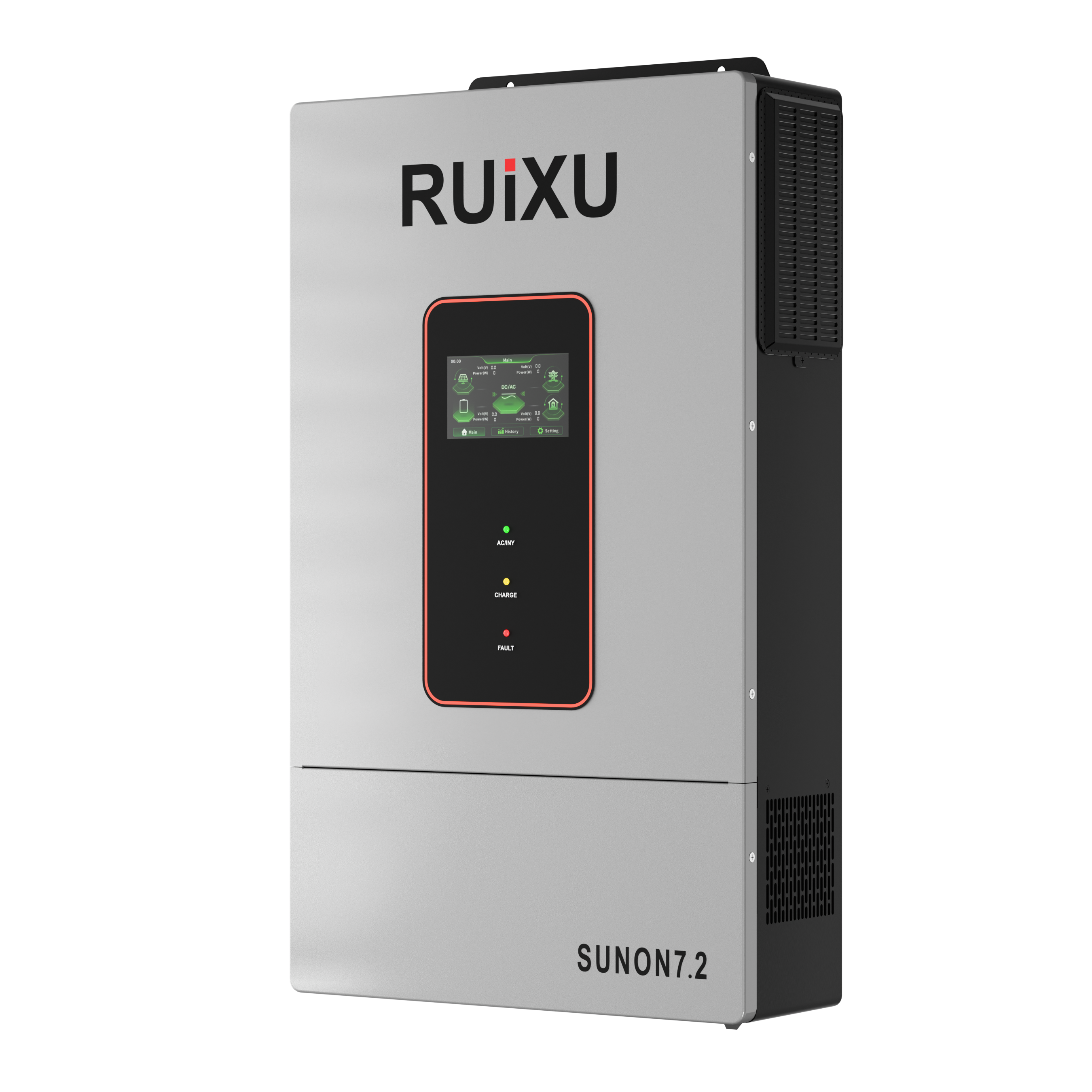

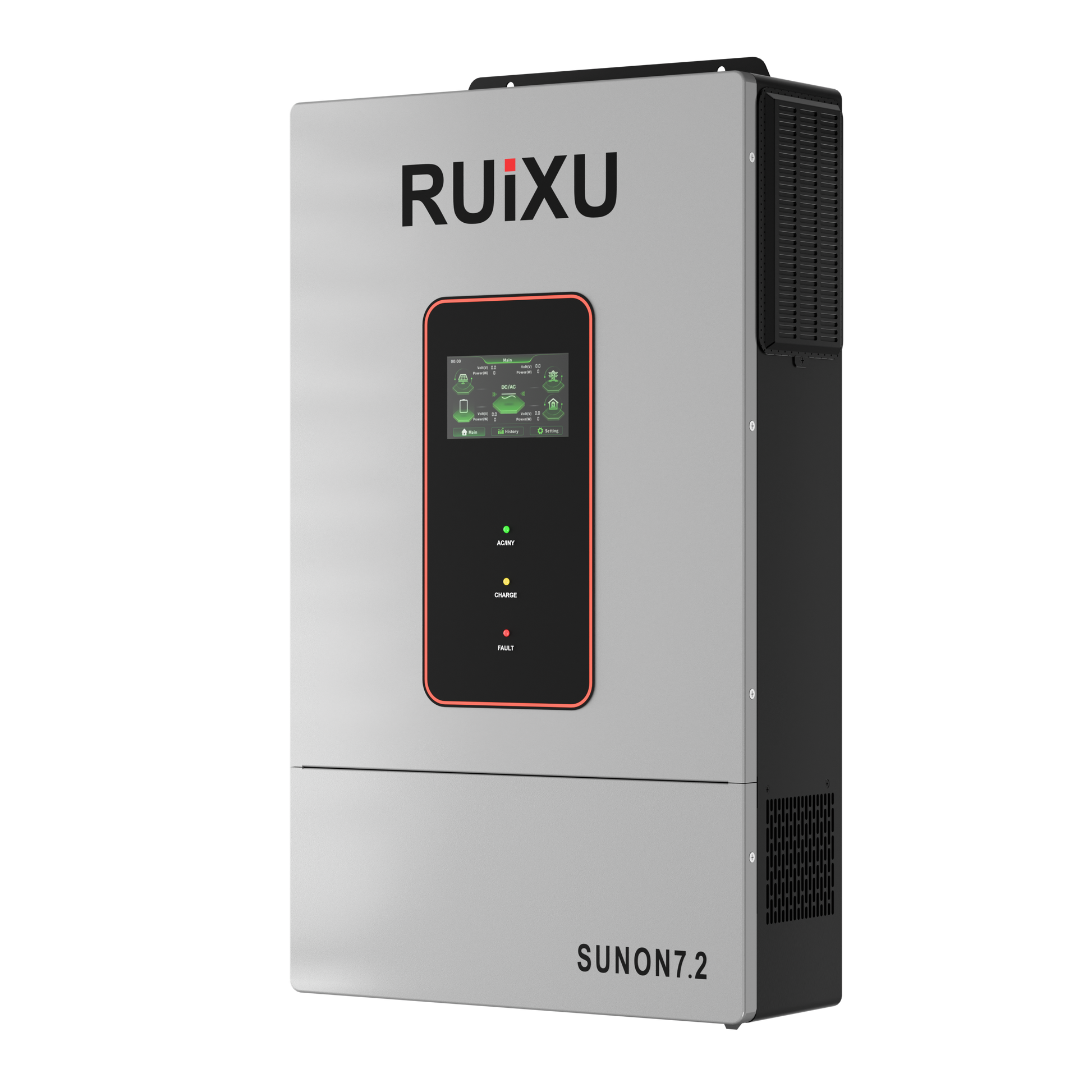

RUiXU SUNON7.2 Single/Split-Phase Off-Grid Inverter
7.2kW | 48V | Dual MPPT
The SUNON7.2 is an advanced all-in-one solar energy storage solution designed for modern off-grid cabins, cottages, and residential backup systems. This 7.2kW powerhouse is compatible with 48V battery banks and features a high-capacity 150A charger.
Engineered for versatility, the SUNON7.2 offers innovative hybrid charging that blends grid and solar sources, while its intelligent time-sharing function allows you to schedule charging and discharging to optimize energy usage and costs. With the ability to output both 120V and 240V split-phase power natively (no transformer required) and support for parallel connections up to 6 units (43.2kW total), this inverter scales perfectly with your energy needs.
Hybrid Charging
Supports up to 150A charging, intelligently combining solar and grid inputs for rapid replenishment.
Dual MPPT
Two independent MPPT trackers ensure optimal solar utilization with 99.9% efficiency.
120V/240V Output
Native split-phase output provides standard household power for all your appliances.
Stackable Design
Connect up to 6 units in parallel for a massive 43.2kW total output capacity.
Smart Control
Integrated WiFi & App support allows for easy remote monitoring and management.
Time-Sharing
Programmable timed charging/discharging to maximize efficiency based on usage patterns.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | SUNON7.2 |
| Rated Output Power | 7200W (Split Phase) / 6000W (Single Phase) |
| System Voltage | 48V DC (Nominal) |
| AC Output Voltage | 120V / 240V Split-Phase (Pure Sine Wave) |
| Surge Power | 10,800VA |
| Max PV Input Power | 9000W (4500W x 2) |
| Max PV Open Circuit Voltage | 500V DC |
| MPPT Voltage Range | 90VDC ~ 450VDC |
| Max Charging Current | 150A (AC + PV) |
| Transfer Time | 10ms (Typical) |
| Parallel Capability | Yes, up to 6 units (Single or Split Phase) |
| Dimensions (L x W x D) | 613mm x 360mm x 128mm (24.1" x 14.2" x 5.0") |
| Weight | 16kg (35.3 lbs) |
| Certifications | UL 1741, FCC Part 15 Class B |
| Warranty | 3 Years (Limited Manufacturer Warranty) |
What's in the Box
| Quantity | Item |
|---|---|
| 1x | SUNON7.2 7.2kW Inverter |
| 1x | 200CM CAT6 Communication Cable (Battery to Inverter) |
| 1x | WiFi Dongle Module |
| 1x | Operation Manual |
Efficiently harness and manage solar energy for maximum savings and performance.
