SBI 3” X 90° Pellet Elbow (Unpainted)
SBI 3” X 90° Pellet Elbow (Unpainted)
Couldn't load pickup availability
Navigate Obstacles with a Secure, Leak-Proof Turn.

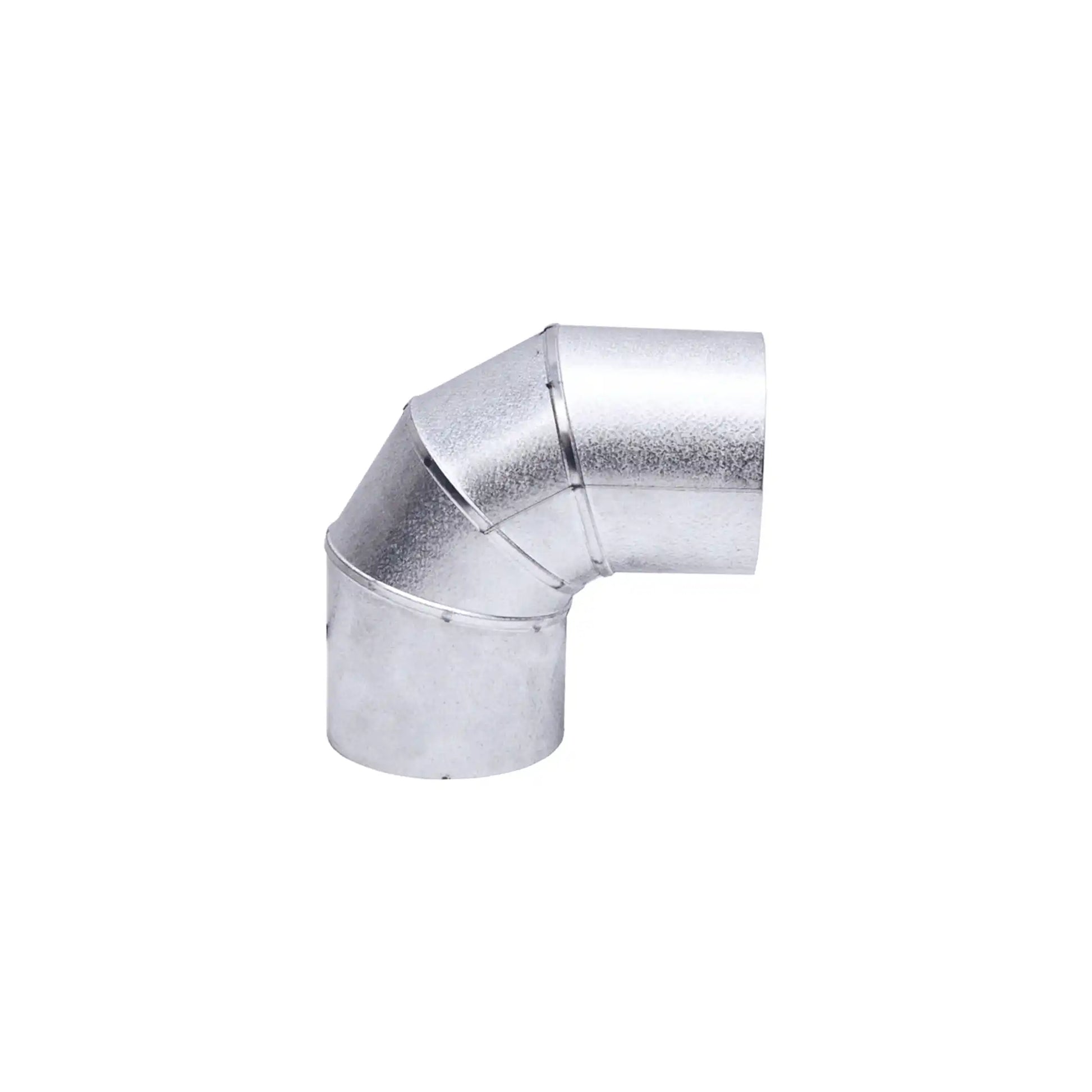

The SBI 3" x 90° Pellet Elbow is expertly engineered for when a sharp turn or offset is required in your pellet stove venting system. Constructed with a durable galvalume steel outer wall and a corrosion-resistant stainless steel inner wall, this elbow is built for longevity. It features a revolutionary gasket system that creates a tight seal, preventing any leaks without the need for messy silicone, while its smooth-weld technology ensures a clean, seamless appearance for a professional finish.
Key Features & Benefits:
- Superior Construction: Features a strong galvalume steel outer casing and a stainless steel inner lining for maximum durability.
- Leak-Proof Gasket System: An advanced sealing system eliminates the need for silicone, ensuring a secure, leak-free connection.
- Clean, Professional Look: Smooth-weld technology creates virtually invisible seams for a high-quality finish.
- Precision Engineered: Designed with precision-formed ends to guarantee a perfect fit with other components.
- Fully Certified: Complies with NFPA 211, CSA B365, UL 641, CAN/ULC S609, and ULC/ORD C441 standards for safety and performance.
Important Installation Information:
This component is intended for creating a 90-degree offset in a pellet vent system. Always maintain a minimum 1" clearance to combustible materials. For complete installation guidelines, please refer to the official SBI Vortex Pellet Vent installation manual.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 3” X 90° Pellet Elbow (Unpainted) |
| Manufacturer | SBI (Stove Builder International) |
| Application | Create a 90-degree offset in a 3" pellet vent system |
| Materials | Inner Wall: Stainless Steel Outer Wall: Galvalume Steel |
| Certifications | NFPA 211, CSA B365, UL 641, CAN/ULC S609, ULC/ORD C441 |

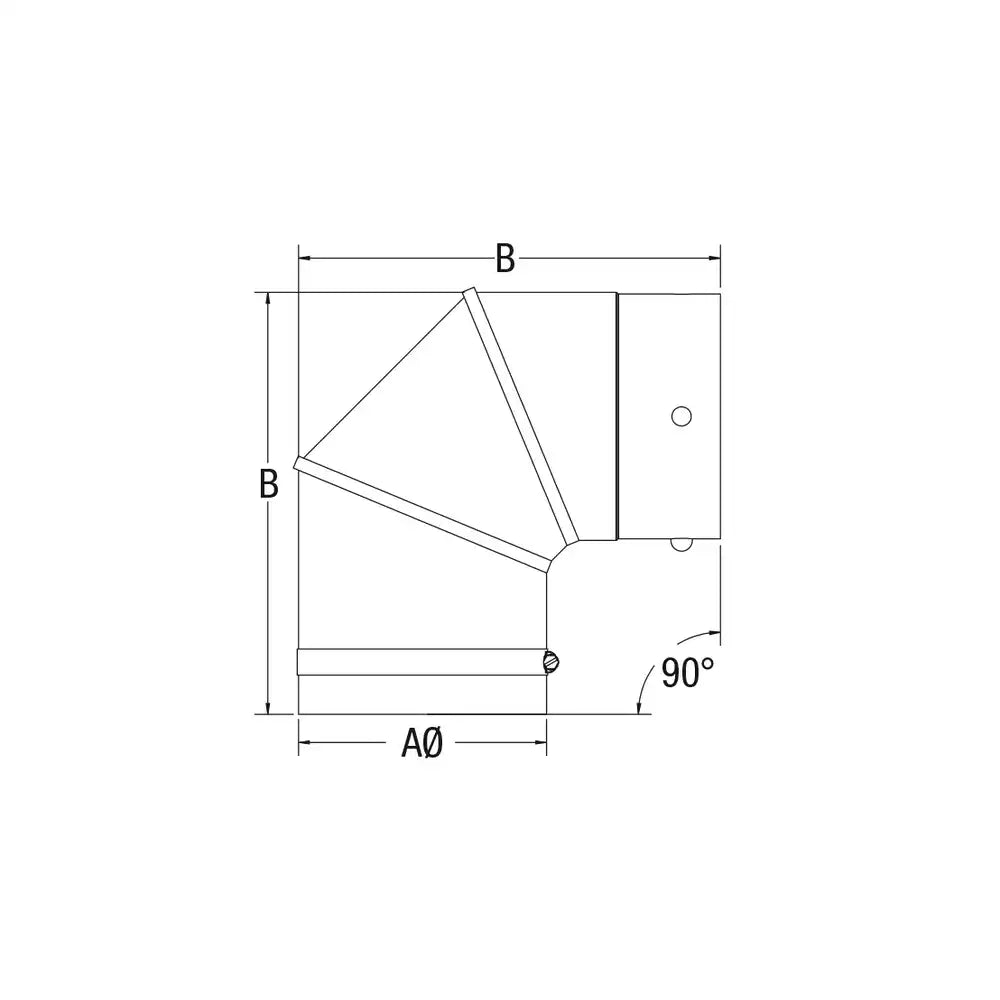

| Inner Diameter (AØ) | 3.75" |
| Dimension (B) | 7" |
| Warranty | Limited Lifetime |
The reliable solution for making tight turns in your venting installation.
