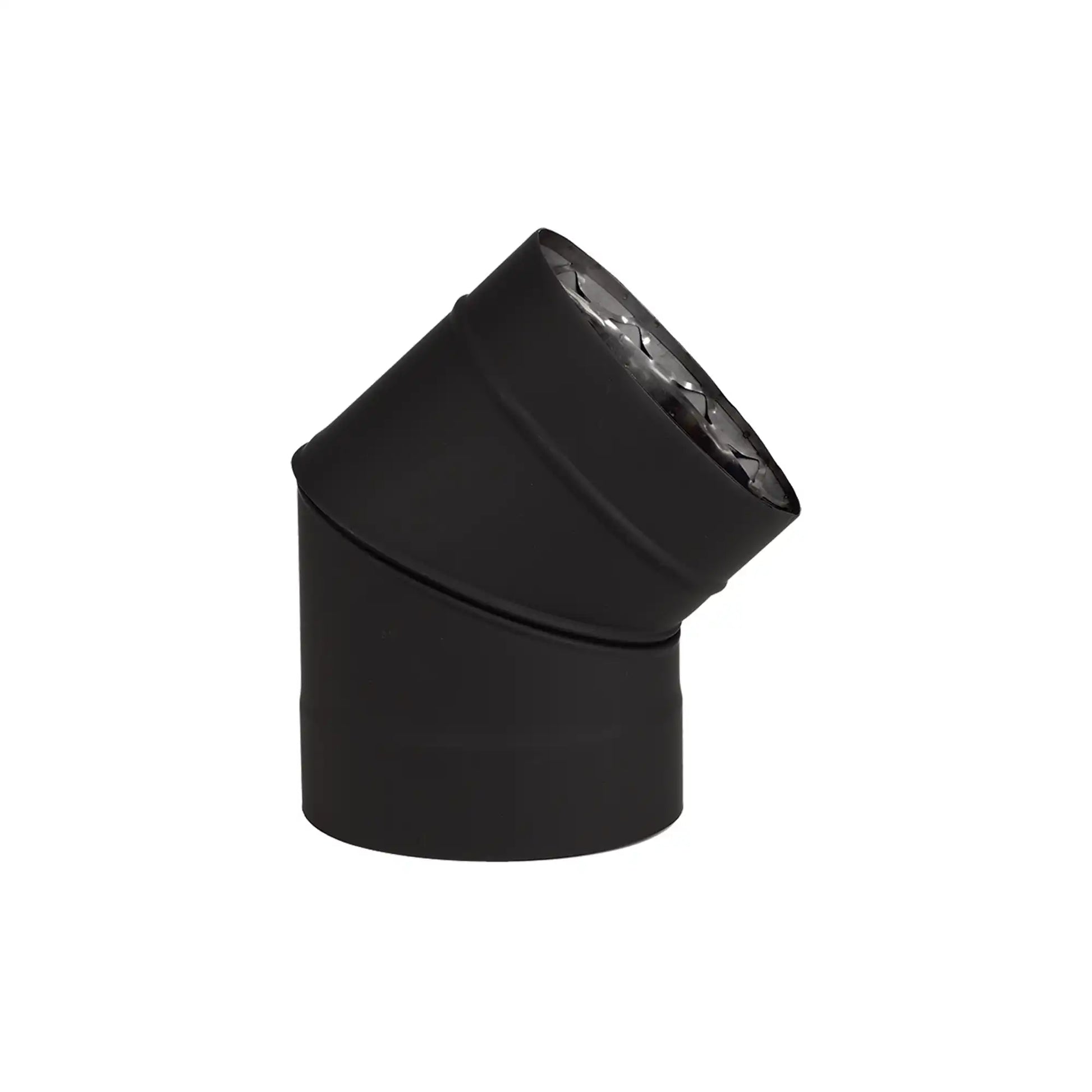

SBI 45 Degree Elbow 6" Vortex Double Wall
SBI 45 Degree Elbow 6" Vortex Double Wall
Couldn't load pickup availability
Create Safe & Efficient Offsets in Your Venting
Create a safe and efficient offset for your wood-burning appliance with the SBI Vortex 45 Degree Double Wall Elbow. This component is essential for navigating around studs, joists, or other obstructions, allowing you to achieve the ideal vent path. It features the same premium construction as the Vortex straight pipes, including an innovative thermal weave to reduce outer wall temperatures and a durable, metallic black powder-coated finish for a seamless look.
Key Features & Benefits:
- Essential for Offsets: Allows you to safely and efficiently create a 45-degree bend in your connector pipe system to bypass obstructions.
- Improves Flow: Using two 45-degree elbows is often preferable to a single 90-degree elbow, as it creates less turbulence and restriction in the exhaust flow.
- Advanced Thermal Weave: The stainless-steel inner wall features an exclusive thermal weave that promotes even airflow and significantly lowers outer wall temperatures for safer operation.
- Simplified Installation: Designed with easy-to-connect parts to simplify the assembly process, saving you time and effort.
- Durable Aesthetic Finish: Finished with a metallic black powder coat that provides a premium, corrosion-resistant look that complements any stove.
- Seamless Laser-Welded Joints: State-of-the-art laser welding provides discreet, solid, and incredibly durable joints, guaranteeing long-term system integrity.
- Fully Certified: Complies with major safety standards for solid-fuel appliances, including NFPA 211, CSA B365, UL 103 HT, and ULC S629.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | SBI 45 Degree Elbow 6" Vortex Double Wall |
| Model Number | VOD0090 |
| Application | 45-Degree Elbow for Wood-Burning Appliances |
| Angle | 45° |

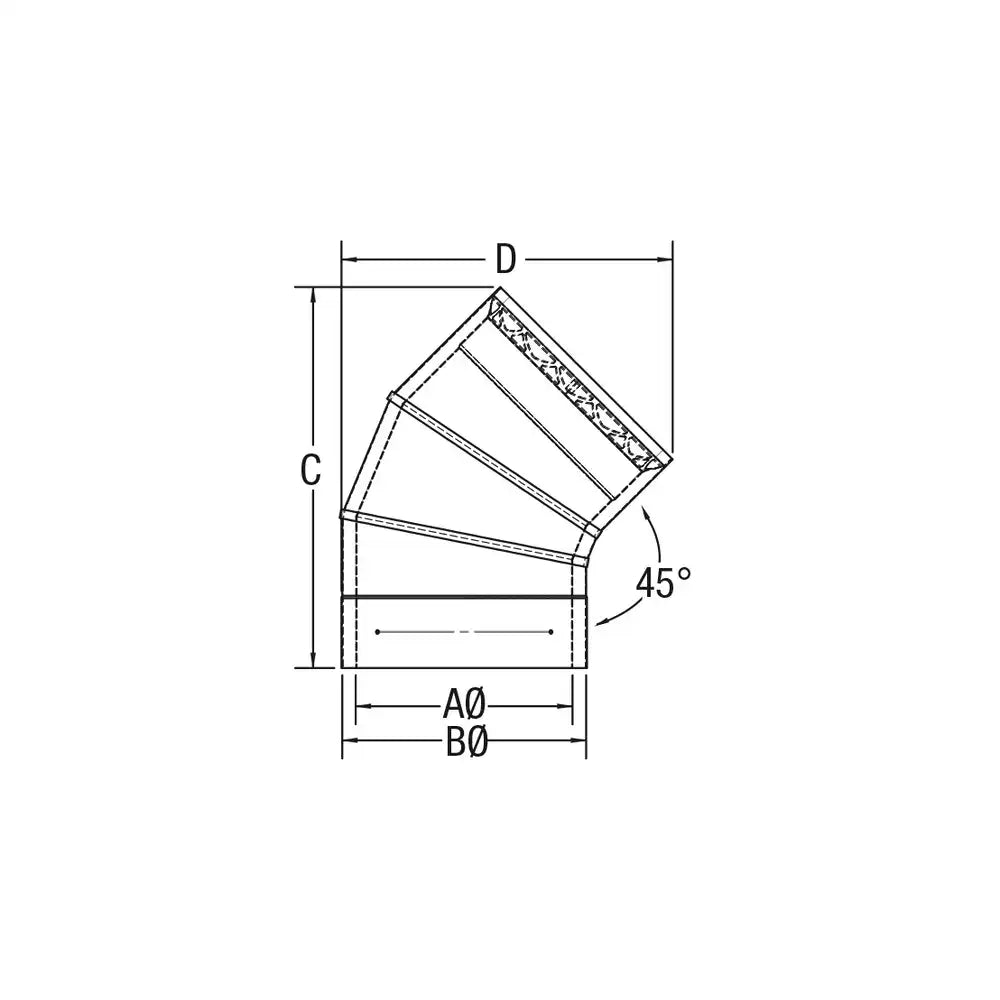

| Inner Diameter (AØ) | 6" |
| Outer Diameter (BØ) | 7" |
| Centerline Height (C) | 10.5" |
| Offset Length (D) | 9" |
| Minimum Clearance | 6" to Combustible Materials |
| Construction | Double Wall Stainless Steel w/ Thermal Weave |
| Finish | Metallic Black Powder Coat |
| Certifications | NFPA 211, CSA B365, UL 103 HT, ULC S629 |
| Warranty | Limited Lifetime Warranty |
The essential component for a clean, safe, and custom stove installation.
