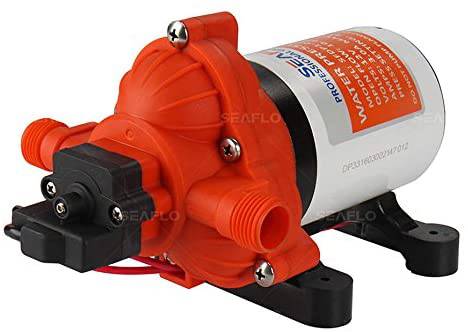

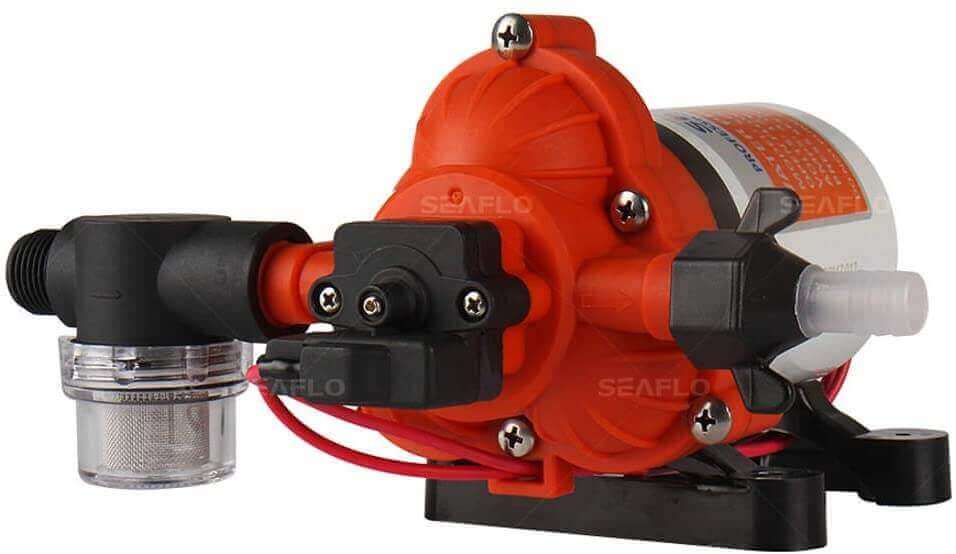

SEAFLO 115vAC Diaphragm Pump 5GPM 55PSI
SEAFLO 115vAC Diaphragm Pump 5GPM 55PSI
Couldn't load pickup availability
Powerful 5.0 GPM Flow in a Compact AC Pump
Meet the newest addition to our diaphragm pumps: the SEAFLO 42 series. This 115V AC model retains the raw power and pressure of its predecessors but can also adapt to situations where high flow is not needed. Compact but capable, it is a great fit for tight spaces and a wide variety of applications.

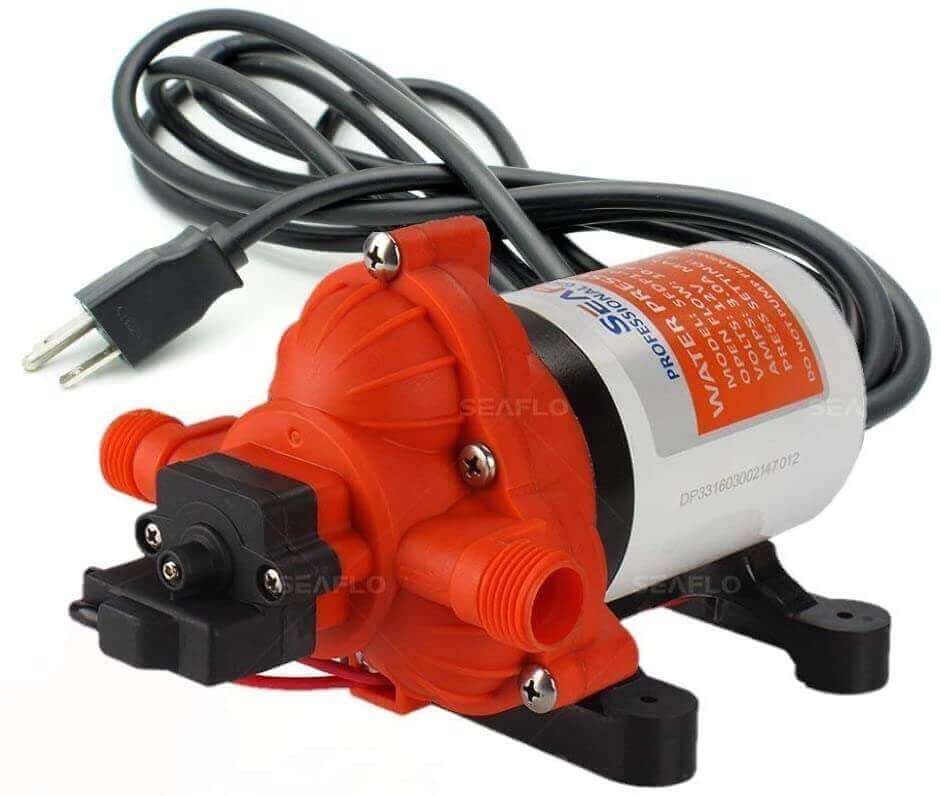

*Note: This is the 115V AC version and comes with a standard 36" (3-foot) cord with a 3-prong plug. It is designed to plug directly into a standard household 110-120V AC electrical outlet.
Key Features & Benefits:
- High Performance: Delivers a smooth 5.0 GPM flow with a 55 PSI shut-off pressure.
- 115V AC Plug-in Power: Includes a 36" grounded power cord with a 3-prong plug for easy installation to any standard 110-1V outlet.
- Smart Control: Features a pressure switch for automatic operation and a bypass control for smoother, quieter flow and reduced cycling.
- Robust Design: 4-chamber positive displacement diaphragm pump that is self-priming up to 6 feet and capable of being run dry.

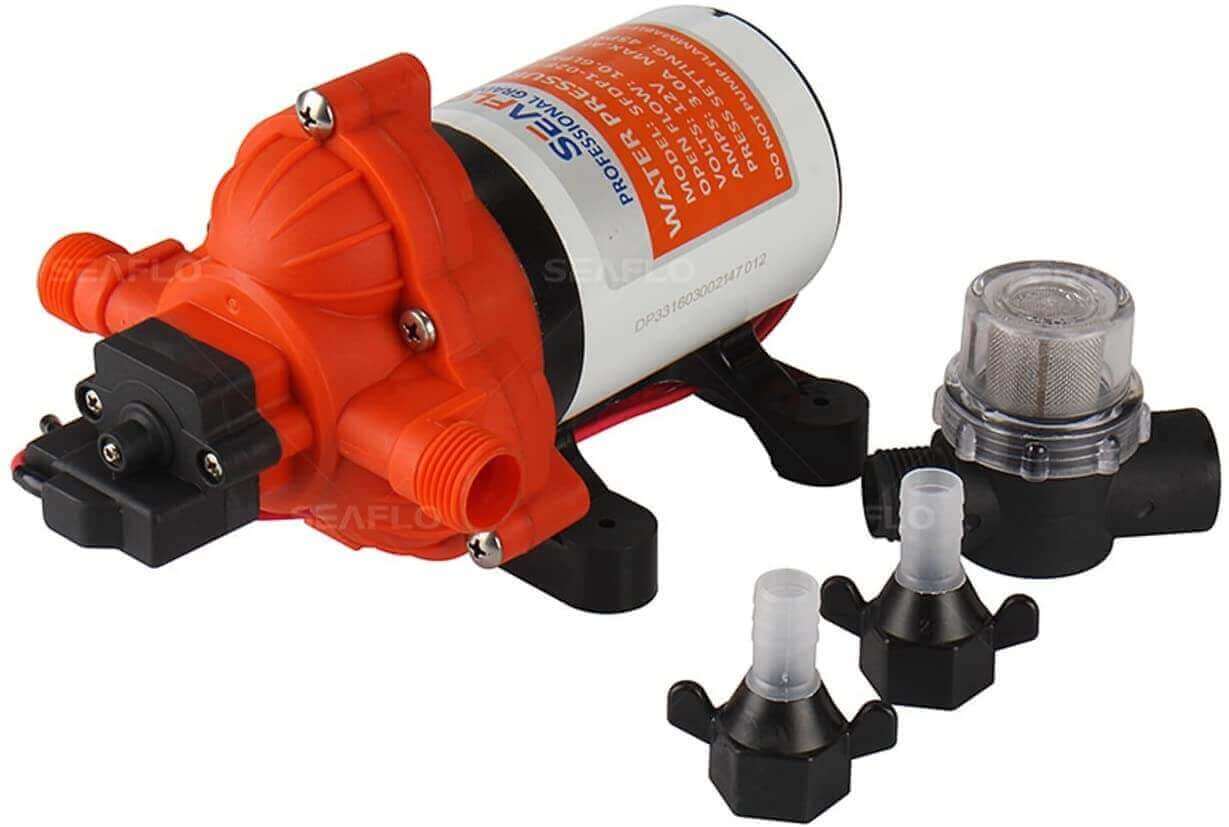

- Compact & Versatile: A great fit for tight spaces and can be configured with different inlet types for any application.
- Quiet Operation: Built with an industry-standard mounting pattern to minimize noise and vibration.
Common Applications:
- Pressurized water systems (RV, caravan, boat, cabin)
- Sprayer fixtures (vehicle-mounted, electric)
- Cleaning machines and humidifiers
- Water purification
- Food beverage filling & liquid transfer
- Any other pressurization system requiring AC power
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | SEAFLO Diaphragm Pump 42 Series 115AC |
| SKU | SFDPA1-050-055-42 |
| Performance | 5.0 GPM (18.9 LPM) |
| Voltage | 115V AC (Plugs into standard 110-120V outlet) |
| Power Cord | 36" grounded electrical cord with 3-prong plug |
| Max. Amp Draw | 1.1 A |
| Control Type | Pressure Switch & By-pass Control |
| Shut-off Pressure | 55 PSI (3.8 bar) |
| Re-start Pressure | 41 PSI (±5 PSI) |
| Pump Type | 4 Chamber Positive Displacement Diaphragm |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Run Dry Capable | Yes |
| Inlet/Outlet Ports | 1/2" -14 MNPT |
| Max Recommended Temp. | 140° F (60° C) |
| Duty Cycle | Intermittent |
| Weight | 6 lbs (2.7 kg) |
The perfect 115V AC pump for your cabin, RV, or general transfer needs.
