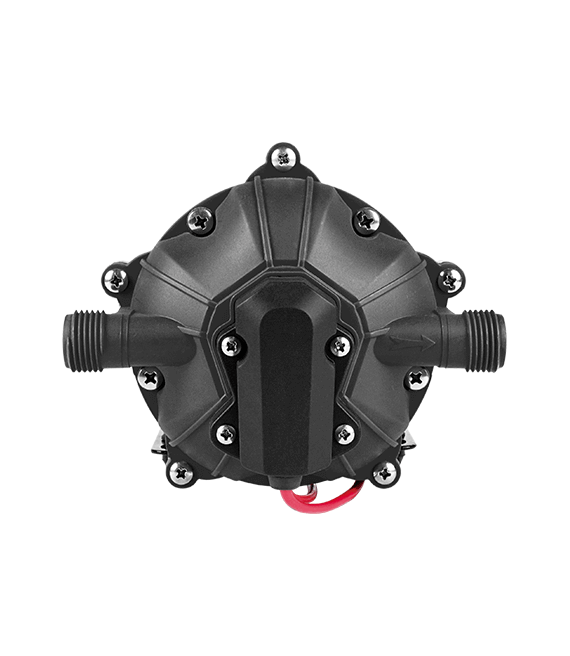

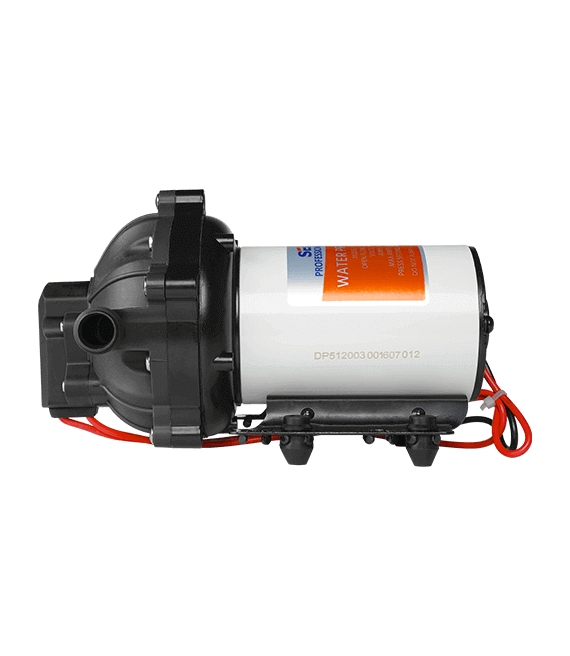

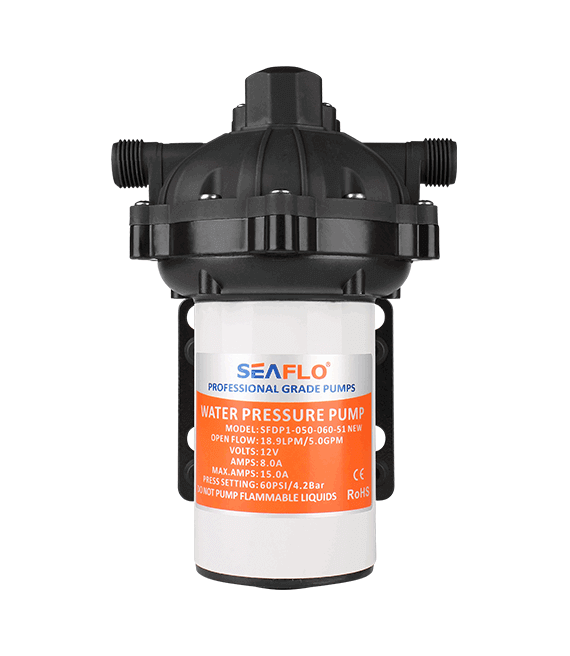

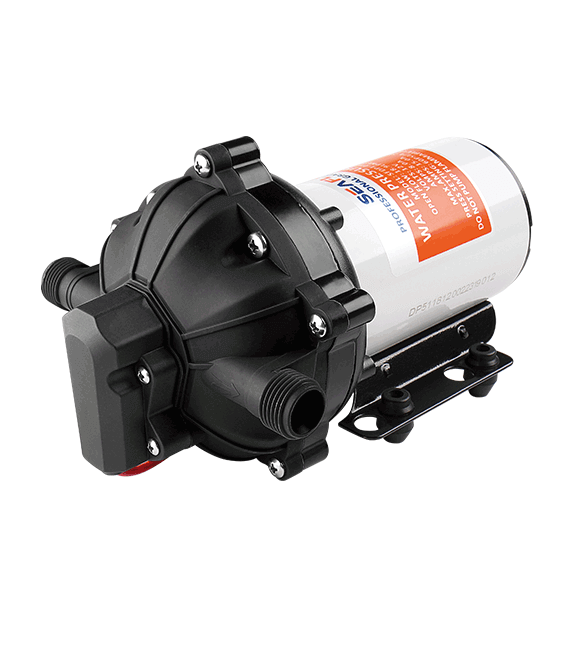

SEAFLO 12V 5GPM 51 Series Diaphragm Pump 60PSI

The Seaflo 51 Series is our new Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 51-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install, service, and winterize.

Voltage：12 VDC (Max draw 15 A)

Open Flow：5.0 GPM

Shut-off Pressure：60 PSI / 4.2 BAR

Priming Capabilities：6 feet (1.8 m) suction lift

Max Recommended Temperature：140° F (60° C）Max.

Material：EPDM(Valves) / Santoprene(Diaphragm)

Ports：1/2" MNPT

MORE FEATURES & BENEFITS

•  Precise pressure control and stable performance

•  Good sealing performance, waterproof and dustproof

•  Low starting pressure, reduces cycling

•  Good heat dissipation

•  Longer pump life

•  Run dry capable for normal workloads

•  Very quiet operation

•  On-demand only

•  Fresh water or salt water available

•  16 AWG, 9"(22.8 cm) long leads

•  2 Year Warranty

•  Meets or exceeds RoHS, SGS, and ISO standards

…

…

…
