Summum Pro 16" Adjustable Wall Bracket
Exterior Extended Standoff Lateral Wall Stabilizer (Up to 16" Clearance) — Model SC-6AWB16

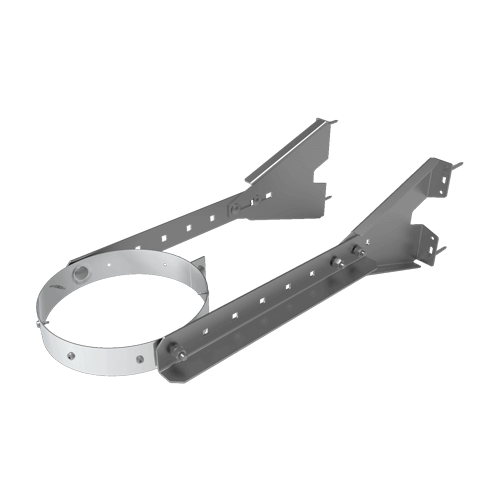

Effortlessly navigate deep roof eaves, wide soffits, and architectural wall projections with the official Summum Pro 16" Adjustable Wall Bracket (Model #SC-6AWB16). Precision-engineered in Canada, this extended mounting assembly pairs a heavy-gauge 304 mirror-finish stainless steel clamping band with reinforced, extra-long galvanized extension arms. Sized to fit the 9-inch outer casing of Summum Pro 6" insulated chimney pipe, it provides continuous wall standoff adjustability up to a full 16 inches—allowing your exterior vertical stack to bypass deep overhangs without cutting into eaves, framing custom standoff blocks, or introducing draft-reducing elbow offsets.

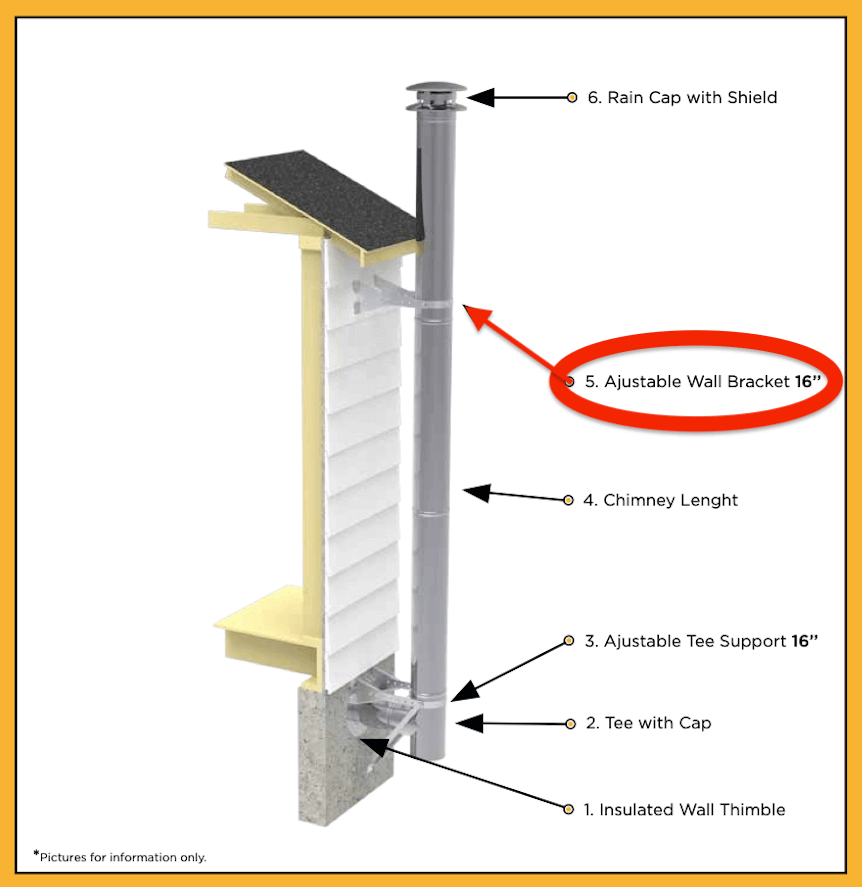

Summum Pro 16" Extended Wall Bracket Dimensions, Standoff Range & Clamping Profile
- Extended 16" Standoff Reach: Continuous adjustment up to 16 inches from the wall plane allows chimneys to clear wide roof overhangs, fascia, and gutters without cutting into eaves or framing custom wooden bump-outs.
- Eliminates Unnecessary Elbow Offsets: Preserves straight, high-velocity vertical drafting by ascending straight past rooflines instead of introducing draft-restricting 30° or 45° offset elbows.
- Mandatory 8-Foot Spacing Component: Essential safety component required every 8 feet of vertical chimney stack rise (minimum 2 brackets per system) to lock pipes firmly against buffeting winds and heavy Canadian winter snow loads.
- 100% True 304 Stainless Steel Collar Band: Clamping band is fabricated from premium .019" thick 304 mirror-finish stainless steel, delivering lifetime rust resistance against coastal salt spray, moisture, and creosote wash.
- Heavy Galvanized Mounting Brackets: Thick, structural-grade galvanized steel arms anchor firmly into exterior wall studs or masonry using heavy-duty lag fasteners without flexing or vibrating.
- CAN/ULC-S629 Certified System Component: Fully tested and certified by OMNI Laboratories to withstand intense 2100°F (1150°C) chimney fire conditions with just 2" clearance to combustibles.
- Limited Lifetime Warranty: Backed by Summum Pro's generous 10-year 100% component replacement warranty and 50% replacement coverage thereafter when installed by a certified WETT or APC technician.
