Lynx Distributor (M10)
Modular DC Fuse Distribution. Class-T & Mega Fuse Monitoring.

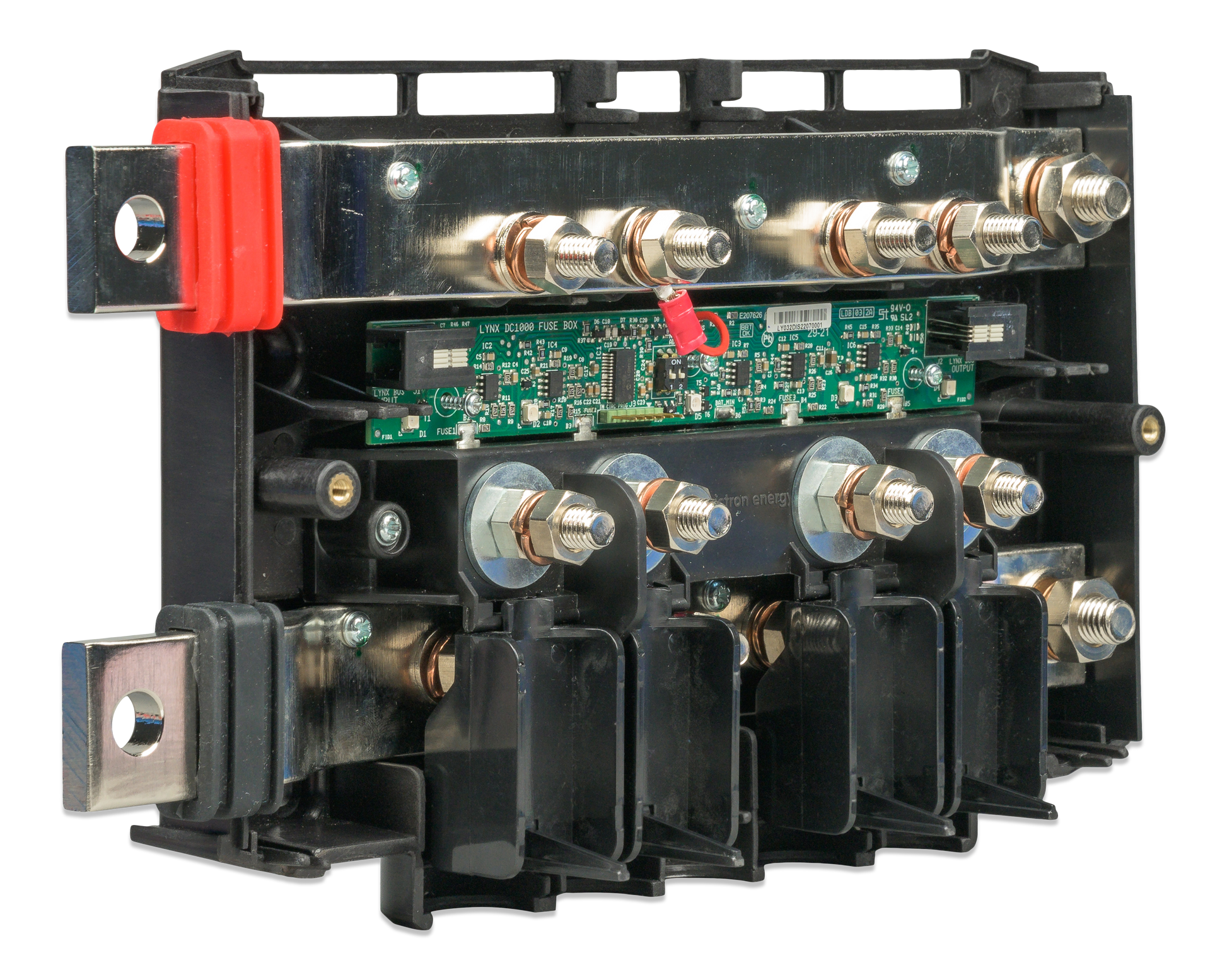

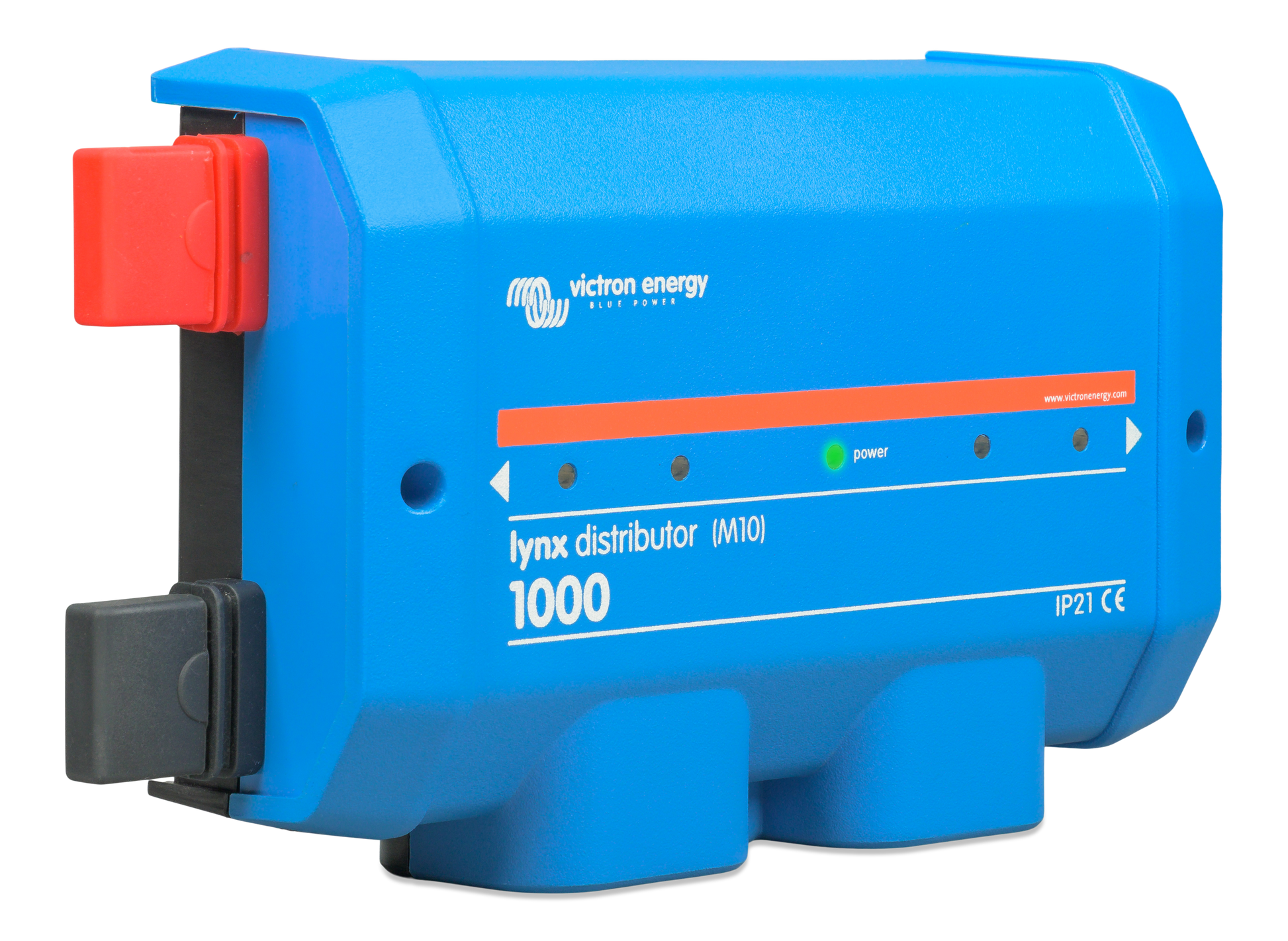

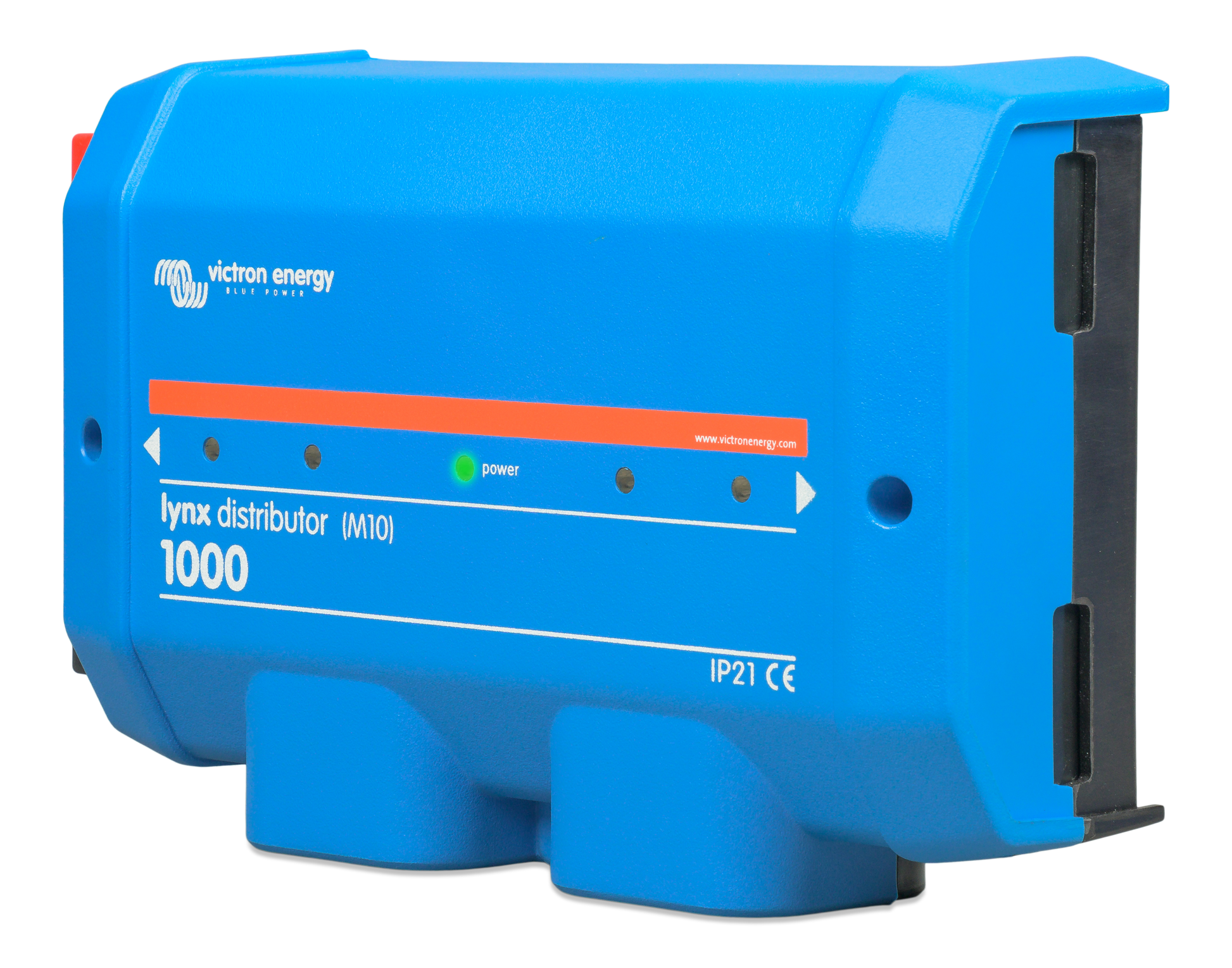

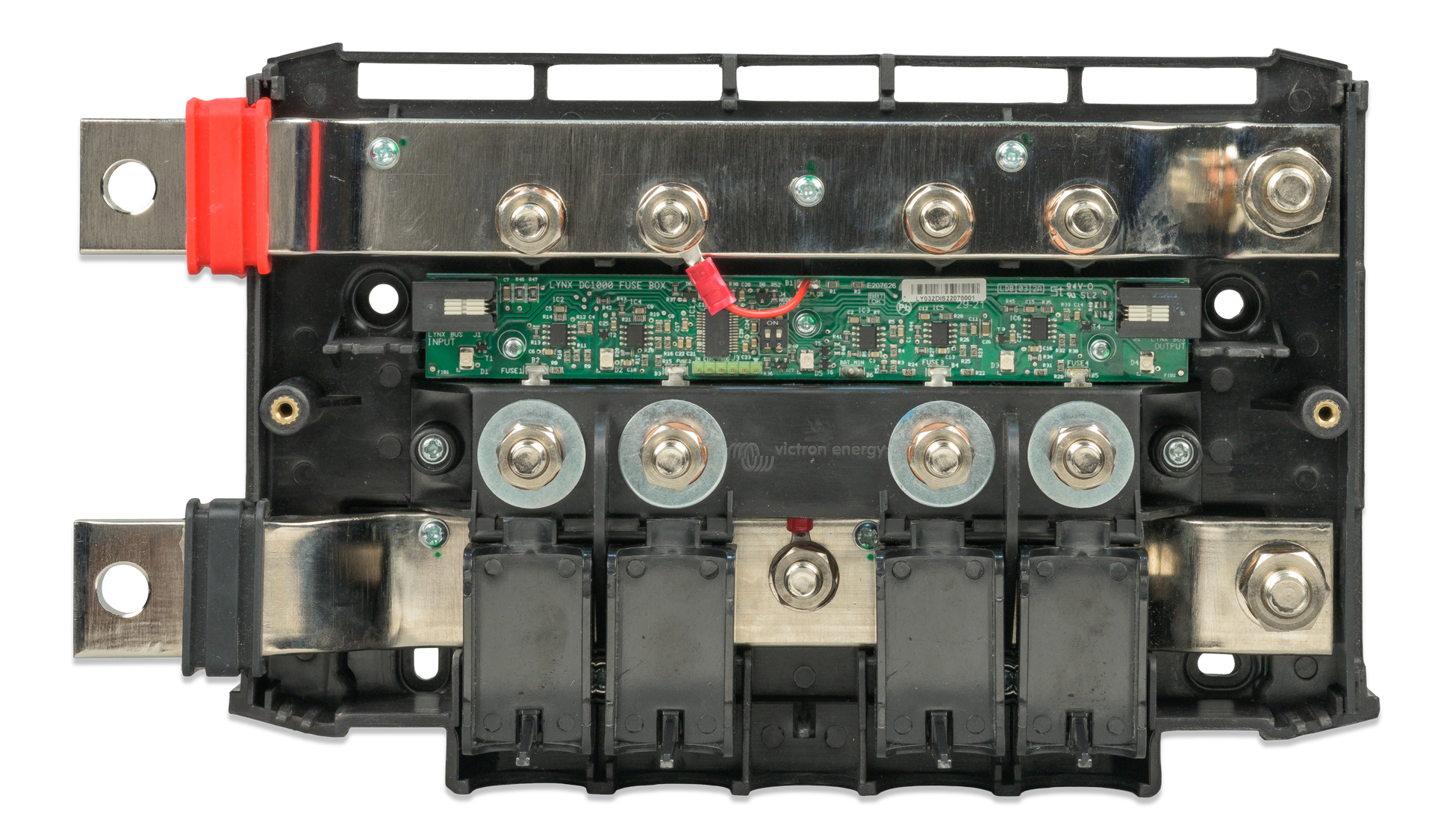

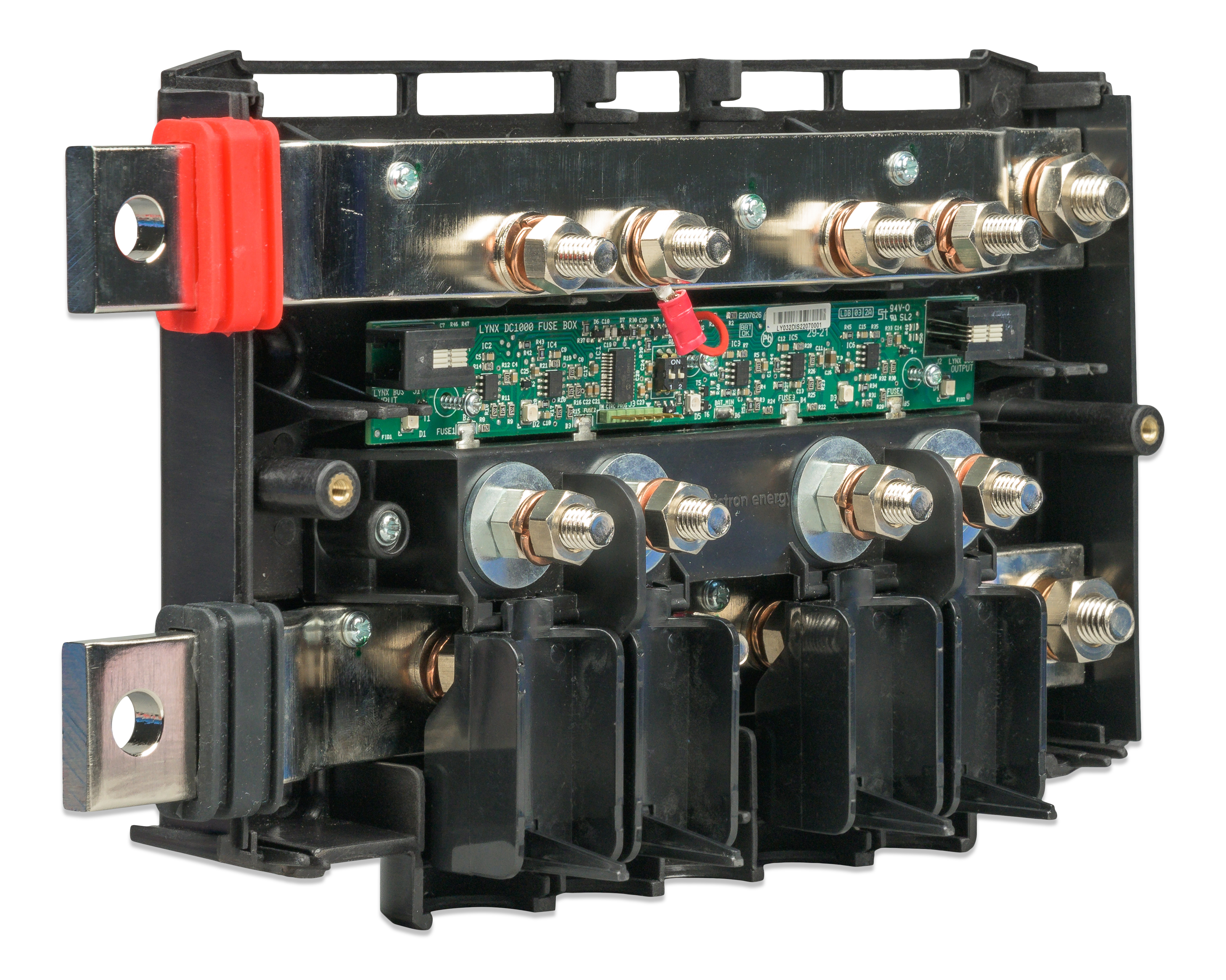

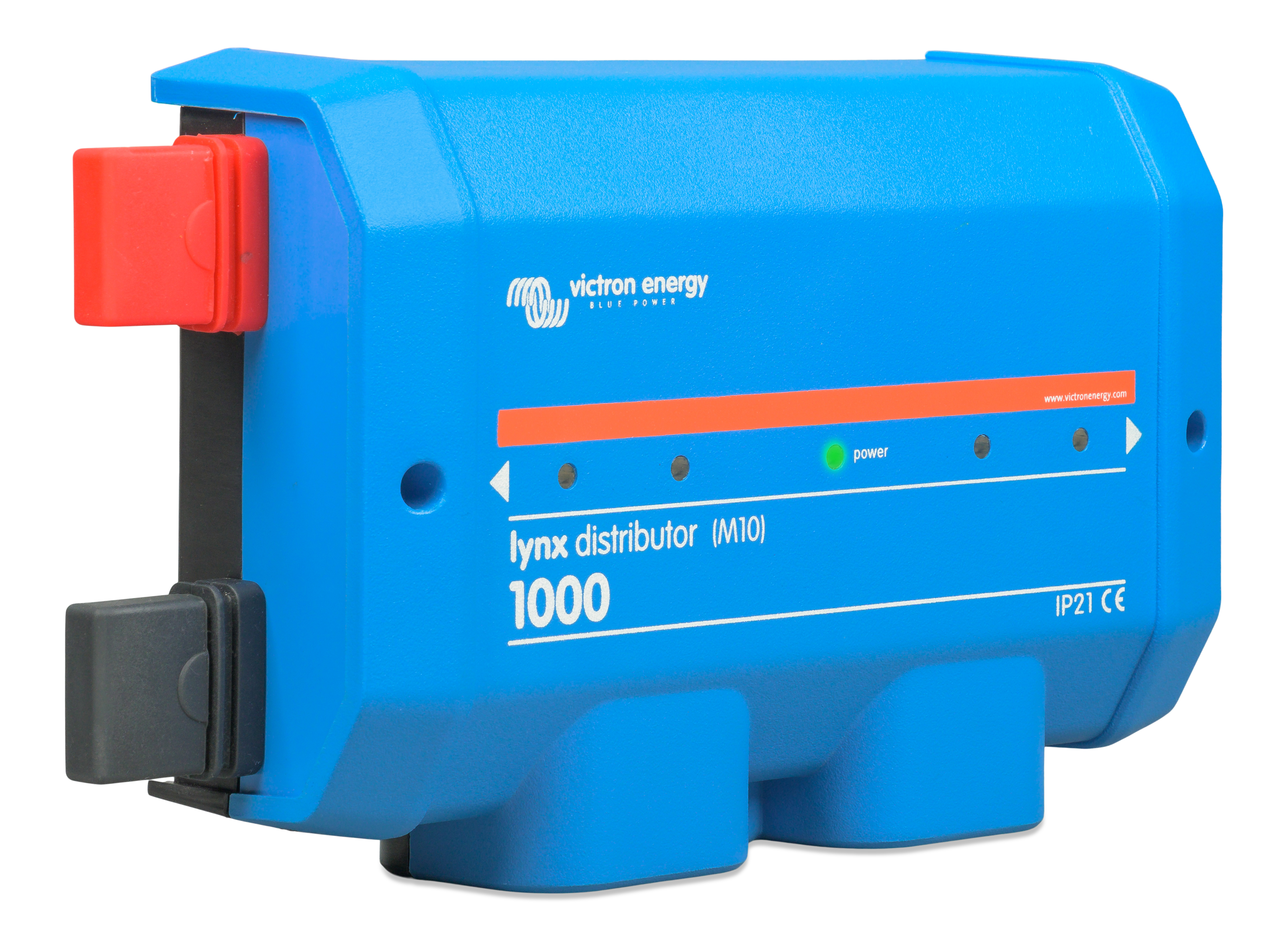

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.
Technical Specifications
Model Configuration
Lynx Distributor (M10) Busbar System
Busbar Rating
1000A Continuous DC Rating
System Voltages
12V | 24V | 48V DC Native Compatibility
Fusing Bays
4 Fused Channels (Accepts MEGA Fuses)
Fuse Status Monitoring
LED Status indicators per channel (Requires connection to Lynx Smart BMS or Lynx Shunt)
Hardware Threading Sizing
M10 Main Busbar Bolts & M8 Fuse Studs
Modular Connection
Pairs directly with Lynx Power In and other M10 Lynx units
Ecosystem Compatibility
Integrates within the larger Lynx modular DC distribution system
