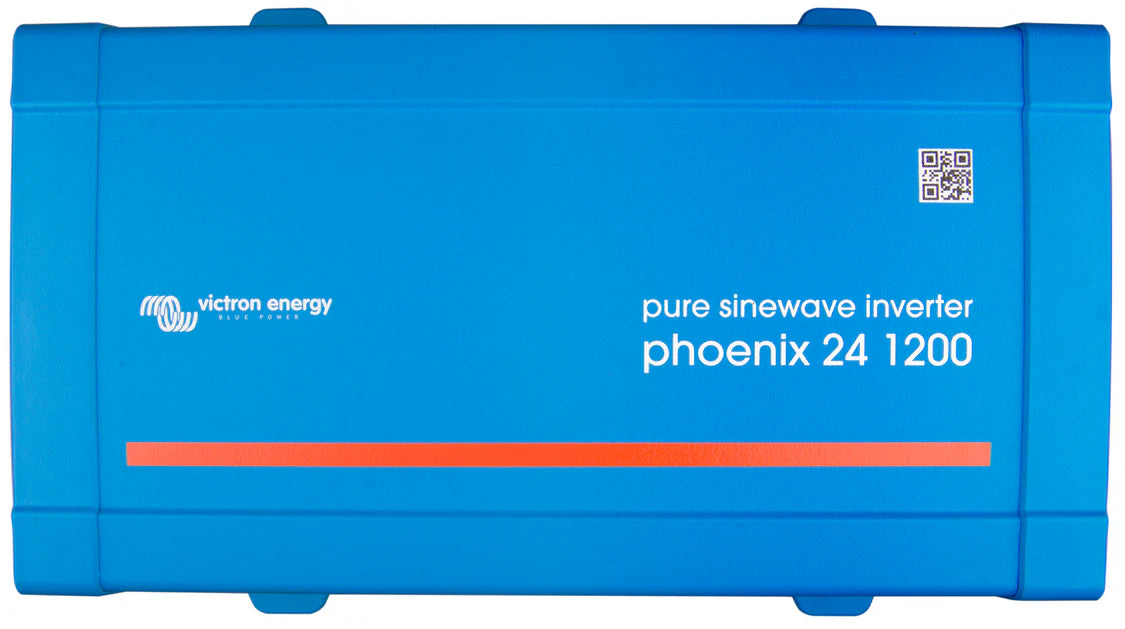

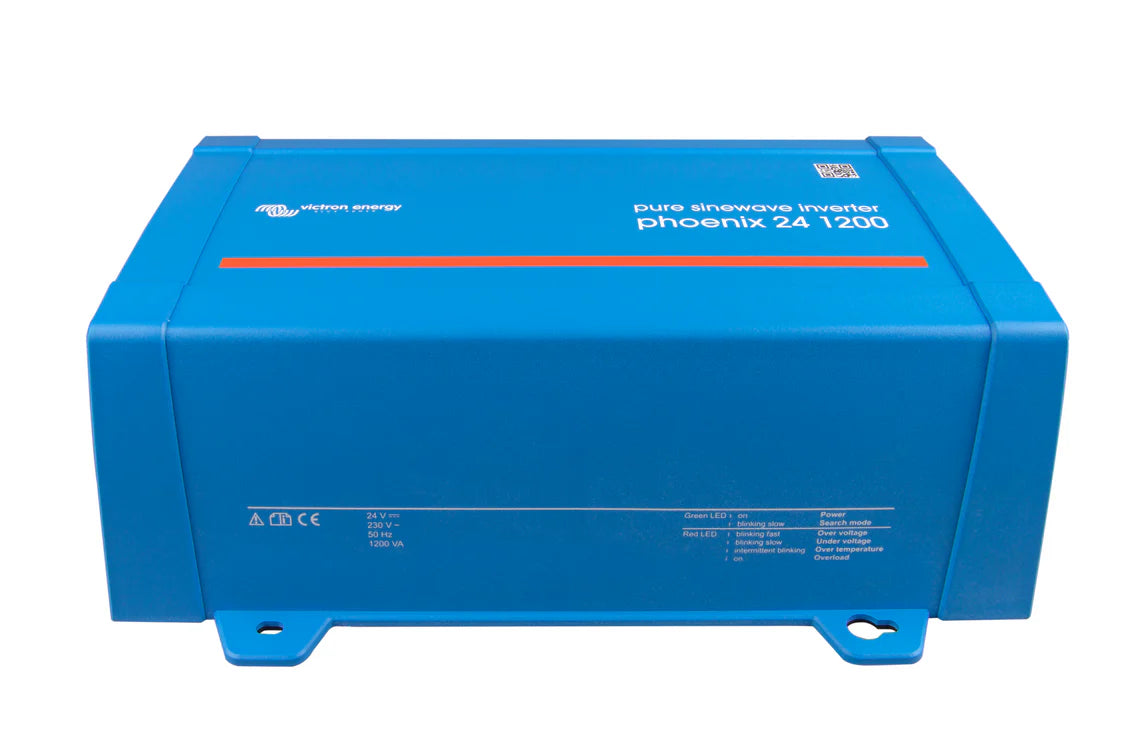

Victron Phoenix Inverter 24/1200 120V VE.Direct
Victron Phoenix Inverter 24/1200 120V VE.Direct
Couldn't load pickup availability
Phoenix Inverter 24/1200 120V VE.Direct
Premium Pure Sine Wave Off-Grid Power. 1200VA Heavy-Duty Surge capacity.
The Victron Phoenix inverter will power up equipment requiring 120V AC using 24V 'leisure' or 'automotive' batteries. It is designed to provide reliable power conversion for various applications, ensuring your equipment runs smoothly and efficiently.
The Phoenix Inverter VE.Direct is a uniquely compact, low-frequency inverter with a built-in full bridge toroidal transformer allowing it to handle large surge capacity from inductive loads. The Phoenix is distinctly efficient, with around 10W standard idle consumption or as low as 1-2W in ECO mode. Compared to larger inverters, idle consumption can often be upwards of 100W+. This feature alone sets this unit apart and makes it perfect for running continuous loads throughout a 24-hour period with the most efficiency possible.
Before installing your system, you can refer to the official documentations: "Orion-Tr-Smart-DC-DC-chargers-isolated-250-400W Datasheet.pdf" and "Victron Orion-Tr_Smart_DC-DC_Charger-Manual.pdf" for wiring guidelines and auxiliary recommendations.
The Victron Phoenix inverter can be connected to Windows or Mac using a USB port (VE.Direct to USB interface cable needed) or a smartphone using a VE.Direct Bluetooth Smart Dongle to configure settings and view system data.
The reliability of the full bridge plus toroidal transformer topology has been proven through years of utilization. All Victron Phoenix inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
The inverter can start loads such as power converters for electric tools, LED lamps, or halogen lamps.
With ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on briefly every few seconds to check for load. If the load exceeds a preset level, the inverter remains on.

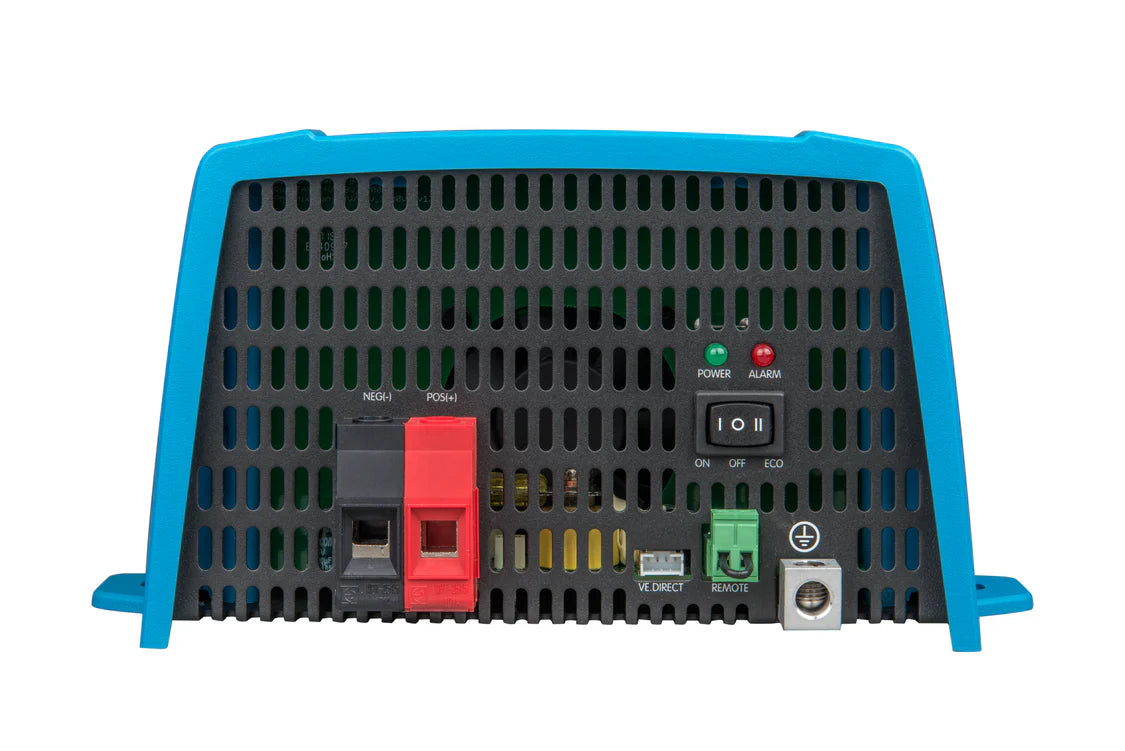

A remote on/off switch can be connected to a two-pole connector or between battery plus and the left-hand contact of the two-pole connector.
Features an LED diagnosis system for easy monitoring. Includes protection metrics against short circuit, overload, low/high battery voltage, and high temperature.
For all low-power inverters, we recommend a Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment continue to operate without disruption.
