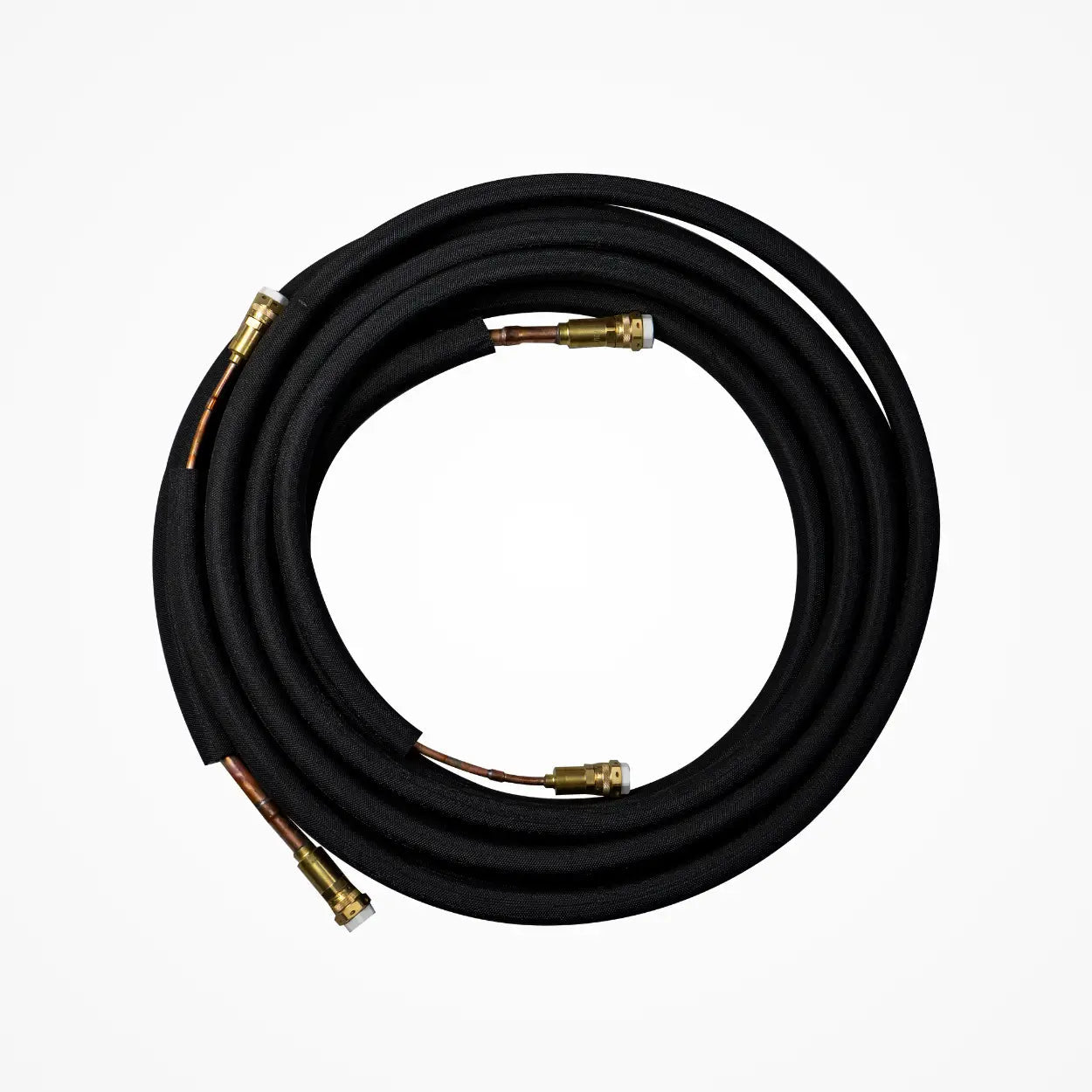

EG4 Mini-Split Line Set Extension Kit - 16.4 ft (5m)

Extend the Reach of Your EG4 Mini-Split System with Seamless, Pre-Vacuumed Connectivity.

The EG4 Line Set Extension Kit provides an additional 16.4 feet (5 meters) of pre-vacuumed lines, offering the flexibility to install your EG4 mini-split air conditioner with greater distance between the indoor and outdoor units than the standard included lines allow. This kit is engineered for straightforward, professional-grade installation without requiring specialized HVAC tools or the services of a technician for initial connection.

Key Features & Benefits:

• Extended Reach: Adds an additional 16.4 ft (5m) to your mini-split's line set, providing greater flexibility for unit placement and installation configurations.
• Pre-Vacuumed Lines: Both the gas and liquid refrigerant lines included in this kit, along with those supplied with EG4 mini-splits, are pre-vacuumed, simplifying the installation process.
• Plug-N-Cool Connectors: Features innovative Plug-N-Cool connectors and includes all necessary adapters to combine line sets, enabling a secure and efficient connection without the need for complex brazing or vacuuming by an HVAC technician for the initial setup.
• Optimized for Performance: Designed to integrate seamlessly with EG4 mini-split systems, maintaining system integrity.
• Note: An approximate 3% loss of efficiency may occur without the addition of refrigerant. A licensed HVAC technician can add refrigerant (0.2 oz./ft.) to compensate for the added volume.
• Durable and Reliable: Constructed for longevity and consistent performance, ensuring a robust connection for your mini-split system.

Product Specifications:

• Extension Length: 16.4 ft (5m)
• Liquid Valve Diameter: 0.25 in. (6.35mm)
• Gas Valve Diameter (12k AC/DC Models): 0.375 in. (9.53mm)
• Gas Valve Diameter (9k/12k AC & 24k AC/DC Models): 0.5 in. (12.7mm)
• Refrigerant: R410A
• Design Pressure: <651 PSI

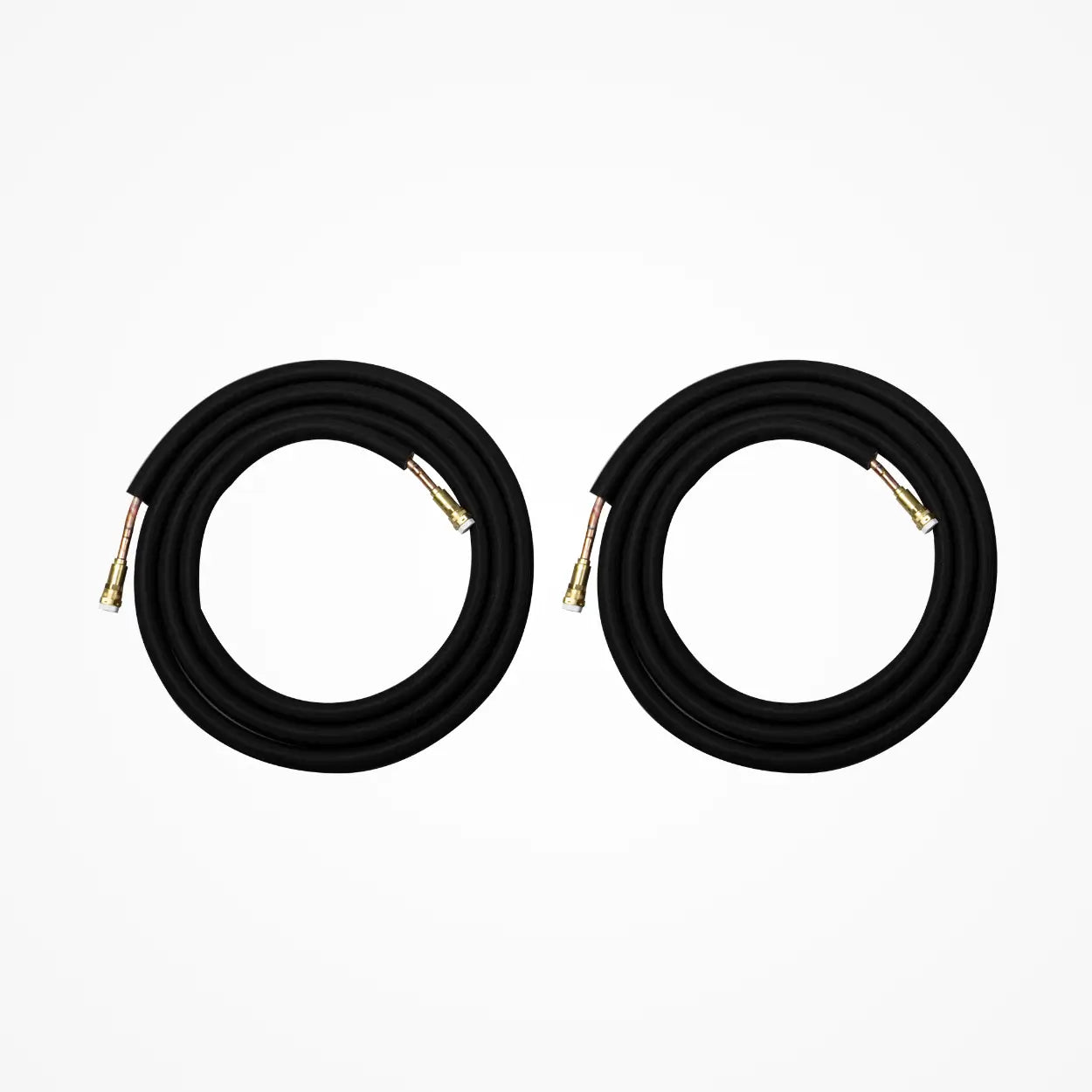

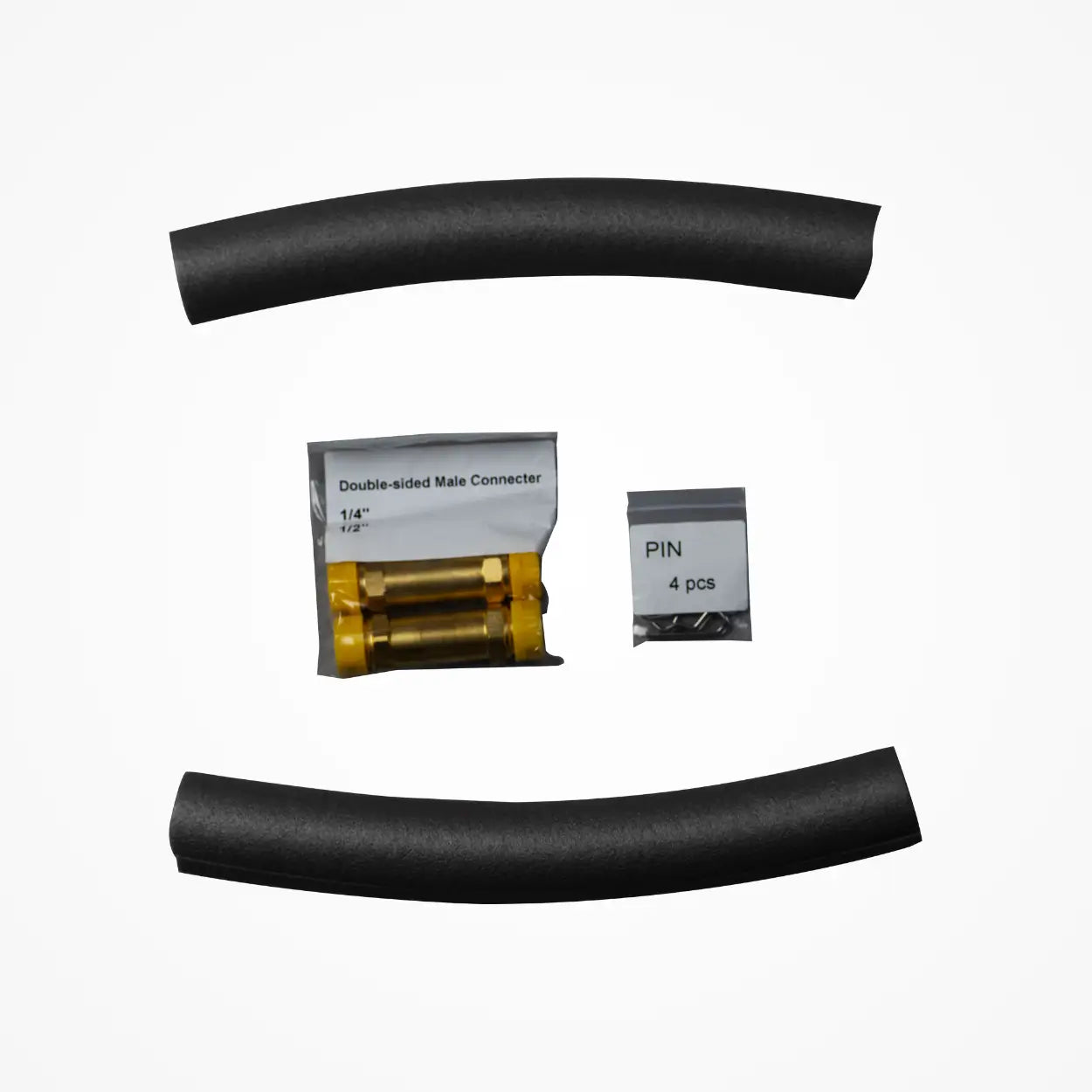

• Included Components: 16.4 ft (5m) gas refrigerant line set, 16.4 ft (5m) liquid refrigerant line set, 2 double-sided male connectors, 4 retaining pins, 2 foam insulation pieces.

Documents:

• Quick Start Guide
• California Proposition 65 Warning

The EG4 Mini-Split Line Set Extension Kit is an indispensable accessory for optimizing the placement and enhancing the efficiency of your EG4 mini-split air conditioning system, ensuring comfort and convenience for your cabin or remote living space.
