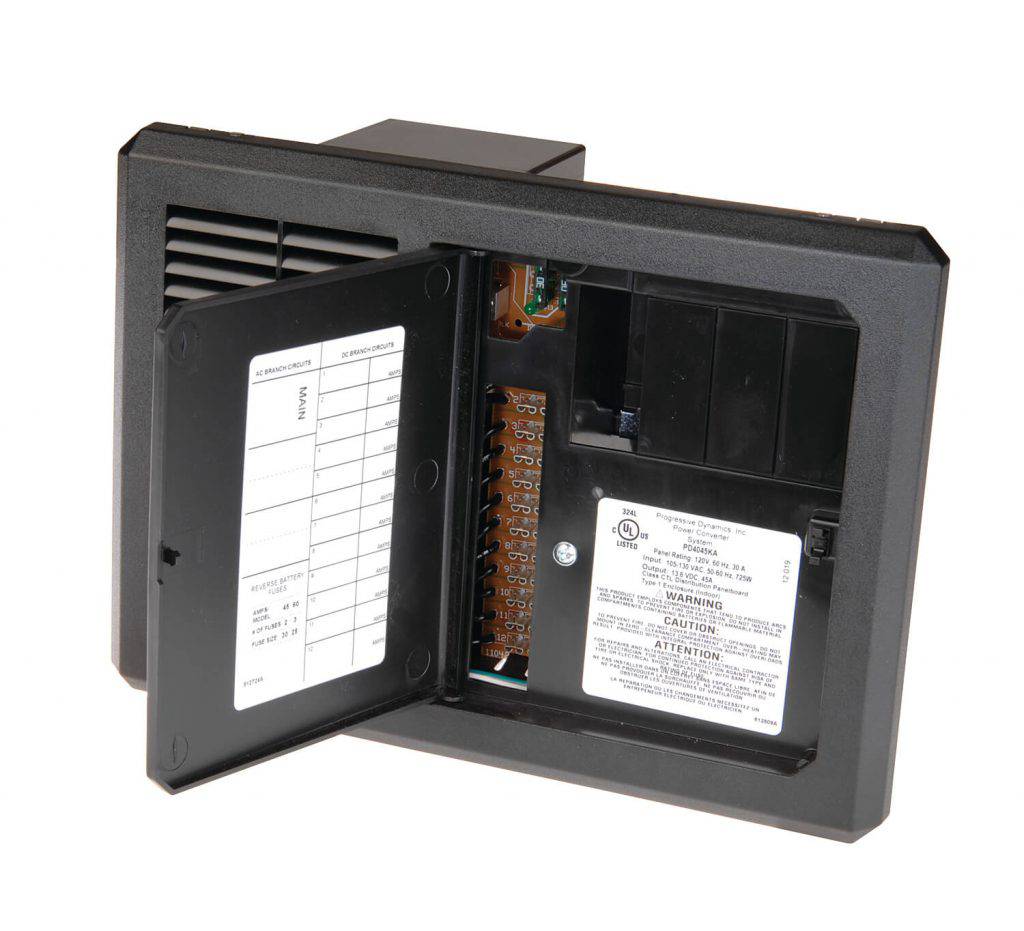

Mighty Mini AC/DC Distribution Panel with 45 Amp Charger by Cabin Depot, showing open front access for Inteli-Power Converter.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Progressive Dynamics Mighty Mini AC/DC Distribution Panel + 45 Amp 120v Charger

Name: Progressive Dynamics Mighty Mini AC/DC Distribution Panel + 45 Amp 120v Charger
Brand: Progressive Dynamics
SKU: PD4045KV
Availability: InStock

Vendor: Progressive Dynamics

SKU: PD4045KV

LOW PRICE GUARANTEE As Canada’s #1 off-grid provider, we won’t be beat on price.

Submit Form Terms

Buy now, Pay later! Just select or at checkout! Learn more

$439.99 CAD

Shipping calculated at checkout.

“Mighty Mini” The Compact All-In-One System…AC/DC Distribution Panel and Inteli-Power Converter with built-in Charge Wizard®

Industry’s smallest all-in-one 45 or 60 Amp distribution panel/converter system. Available with our exclusive built-in Inteli-Power Converter…”The most reliable converter in the RV industry”. The converter section is easily accessible from the front. The AC Distribution Panel is rated for 120 VAC @ 30 Amps with up to 7 branch circuits. The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections. Reverse battery blown fuse indicator.

Inteli-Power 4000 Mighty Mini models can recharge the battery to 90% in 3-6 hours using our patented Charge Wizard technology:

BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
NORMAL Mode 13.6 Volts – Safely completes the charge.
STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
& sulfation – the leading cause of battery failure.

PD4000 Series Features

Compact & lightweight.
Reverse battery protection with easy to replace fuses.
Electronic current limiting.
High and low AC input protection.
Intelligent, variable speed, cooling fan.
Automatic thermal protection.
Front access to large wiring compartment.
Snap-lock cover stays shut while traveling – opens with a touch.
Attractive lightweight panel design made from black impact-resistant high temperature polymers.
Covered by one or more of the following U.S. Patents: 7,782,002 and RE39,461.

Inteli-Power AC Features

AC Distribution Panel rated for 120 VAC @ 30 AMPS.
Accepts up to 7 branch circuit breakers.
AC Panel features built-in push and lock strain relief wiring connectors for quick installation.
Saves over 50% on installation cost.

Inteli-Power DC Features

Converter/Charger section is accessible from the front.
The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections.
Reverse Polarity LED, an industry first, indicates blown fuses, a leading cause of perceived converter failure.
No more guessing. Replace the fuses and the converter is immediately operational.
The 45 AMP Mighty Mini has twelve DC fuse positions.
The Inteli-Power™ 4000 Series Mighty Mini is pre-wired for easy installation.

PD4000 Mighty Mini Inteli-Power Panel Specifications

	PD4045	PD4060
Maximum DC Output Current	45-AMPS	60-AMPS
Maximum Continuous Input Power	725 WATTS	1000 WATTS
No Load DC Output Voltage	13.6 VDC	13.6 VDC
No Load Voltage Tolerance	+/- .3 VDC	+/- .3 VDC
Full Load Output Voltage	> 12.6 VDC	> 12.6 VDC
Ripple and Noise Voltage	< 50 MV RMS	< 50 MV RMS
Input Voltage Tolerance	105 - 130 VAC	105 - 130 VAC
Input Voltage Frequency	50-60 HZ	50-60 HZ
Peak Inrush Current	32-AMPS	47-AMPS
Input Current at Rated Power	˜8.3-AMPS	˜11.4-AMPS
Efficiency (Typical)	> 80%	> 80%
Reverse Battery Protection	YES	YES
Electronic Current Limiting	YES	YES
Cooling Fan	Auto-variable speed	Auto-variable speed
Back Up Thermal Protection	YES	YES
Charge Wizard	YES	YES
Storage Temperature	-20-80C	-20-80C
Operating Temperature	0-50C	0-50C
Hipot Voltage Test	<-------- 1240 V @ INPUT TERMINALS -------->
Over Voltage Protection	YES	YES
Under Voltage Protection	YES	YES
Weight	5.7 LBS.	6.7 LBS.
Cutout Size	10.75W x 7.25H	10.75W x 7.25H
Dimensions	12.28W x 8.875H x 7.25D	12.28W x 8.875H x 7.25D
	YES	YES
AC Distribution Specs:
Rating	120 VAC/30 AMPS	120 VAC/30 AMPS
Breakers	Max. 30 AMP Main... Up to 7 Branch Circuits
DC Distribution Specs:
DC Fuse Positions	2 @ 30 AMP max. each 10 @ 20 AMP max. each	2 @ 30 AMP max. each 10 @ 20 AMP max. each
Reverse Polarity LED	YES	YES
