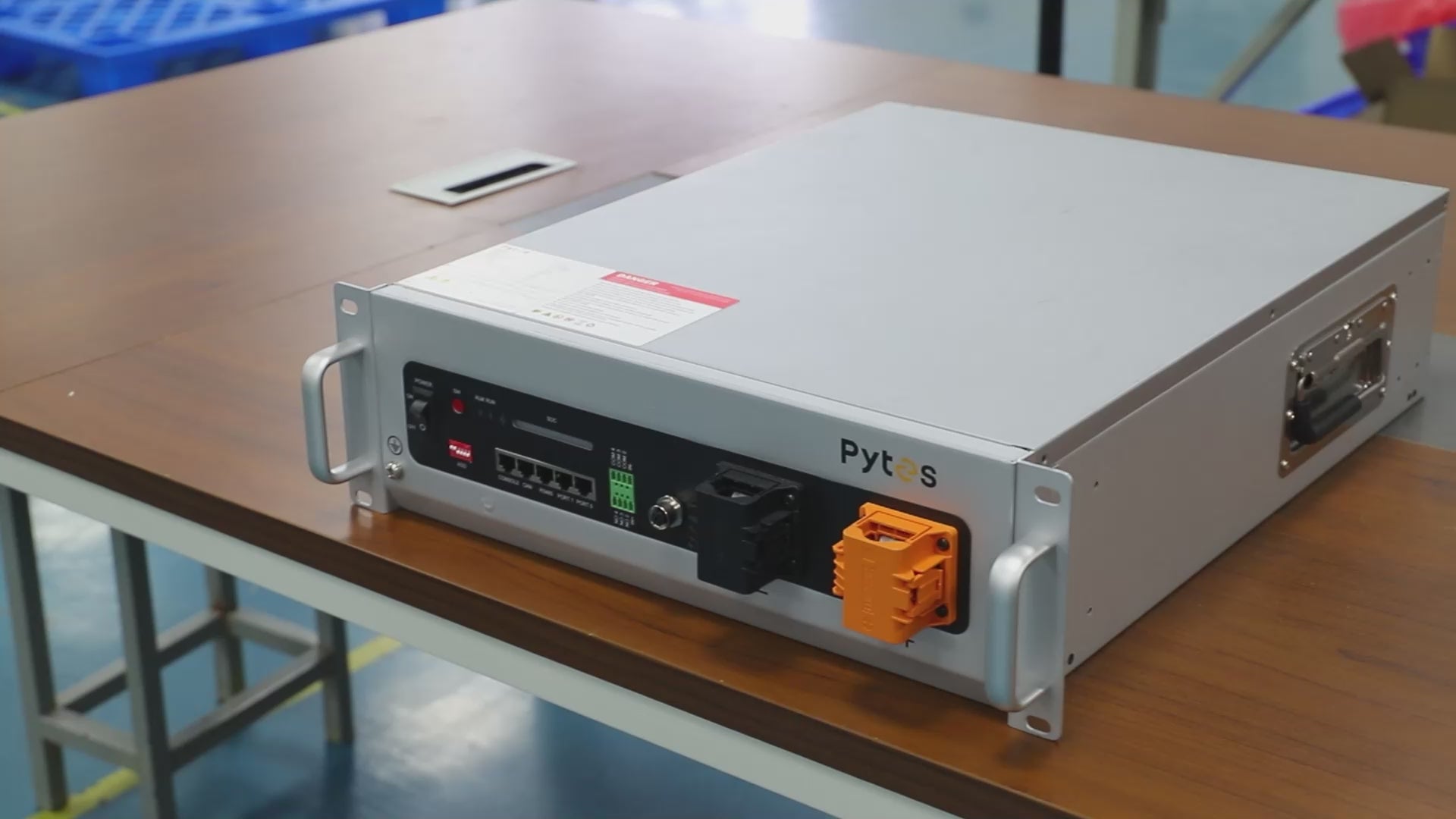

Pytes V5 5.12kWh 48V LFP Server Rack Battery Heated
Pytes V5 5.12kWh 48V LFP Server Rack Battery Heated
Buy now, Pay later! Just select
or
at checkout!
Learn more
Couldn't load pickup availability
Pytes V5 5.12kWh LiFePO4 Battery: Your Cabin's Powerhouse
Leave the grid behind without leaving comfort and convenience behind. The Pytes V5 is the rugged, reliable heart of your off-grid power system, engineered to give you the freedom to live life on your own terms. Whether it's for a weekend retreat or full-time living, this is the power solution built for the wild.
Built for the Canadian Wild
Don't let the weather dictate your power. The Pytes V5 is designed for the demands of a four-season cabin. With a built-in, self-heating function that ensures the battery is ready to charge even when temperatures drop to freezing, it keeps the power flowing. It’s a true all-weather workhorse.
Reliable Power, Day and Night
With a robust 5.12kWh of energy, a single V5 battery can run your essential cabin appliances—lights, a small fridge, water pump, and charging ports—with ease. Backed by top-tier LiFePO4 cells and an advanced Battery Management System (BMS), it's designed for safety and a long, reliable life of over 6000 cycles. This isn't just a battery; it's a long-term investment in your energy independence, backed by a 10-year warranty.
Grows With Your Dream
Your cabin is always a work in progress, and your power system should be too. The Pytes V5 is fully scalable. Start with a single battery and easily add more in parallel as your energy needs grow. Expand up to 16 batteries in a single stack, and combine up to 6 stacks for a massive 492kWh system that can power any dream you can build.
Key Features & Benefits:
- All-Weather Performance: Integrated self-heating allows charging at 0°C (32°F), while the battery can discharge in temperatures as low as -10°C (14°F).
- Long-Lasting Investment: Built to last for over 6000 cycles, providing years of dependable power.
- Powerful Output: A high 100A continuous discharge rate with peak power for demanding tools and appliances.
- Massive Scalability: Connect up to 16 batteries in a single group, and up to 6 groups with a hub for nearly 500kWh of total capacity.
- Certified Safety: Features a sophisticated dual-MCU BMS for protection against overcharging, over-discharging, and short circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Voltage Range | 47.5V - 57.6V |
| Nominal Capacity | 100Ah |
| Max Continuous Charge/Discharge | 100A |
| Peak Discharge Current | 101A-120A (3 min); 121A-180A (15s) |
| Cycle Life | ≥6000 Cycles @ 90% DOD |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -10°C to 50°C (14°F to 122°F) |
| Weight | 97 lbs / 44 kg |
| Dimensions (W x D x H) | 17.32" x 20.87" x 5.51" (440 x 530 x 140mm) |
| Max Operating Altitude | < 13,123 ft / 4000 m |
| Warranty | 10 Years |
