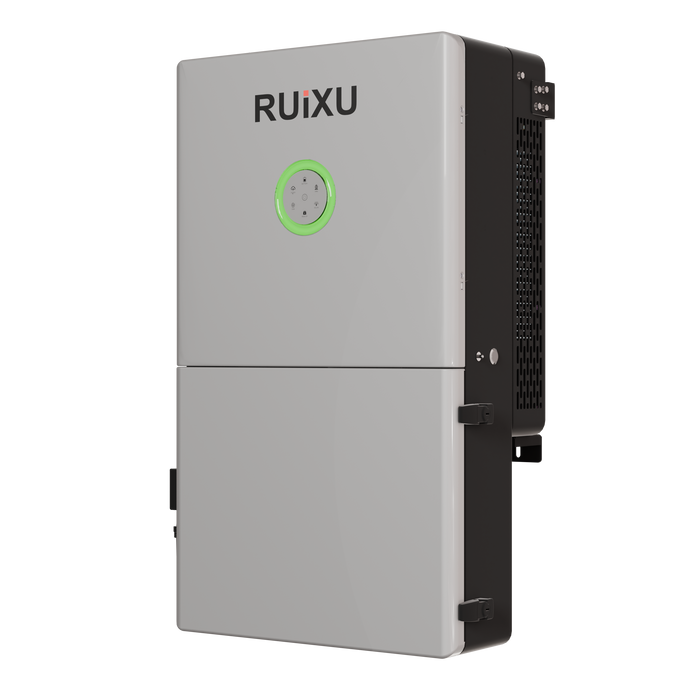

RUiXU RX-12K 17.1KW PV Hybrid Inverter
RUiXU RX-12K 17.1KW PV Hybrid Inverter
Buy now, Pay later! Just select
or
at checkout!
Learn more
Couldn't load pickup availability
The Command Center of Your Off-Grid Sanctuary.
Intelligent, UL 9540 Certified Power.

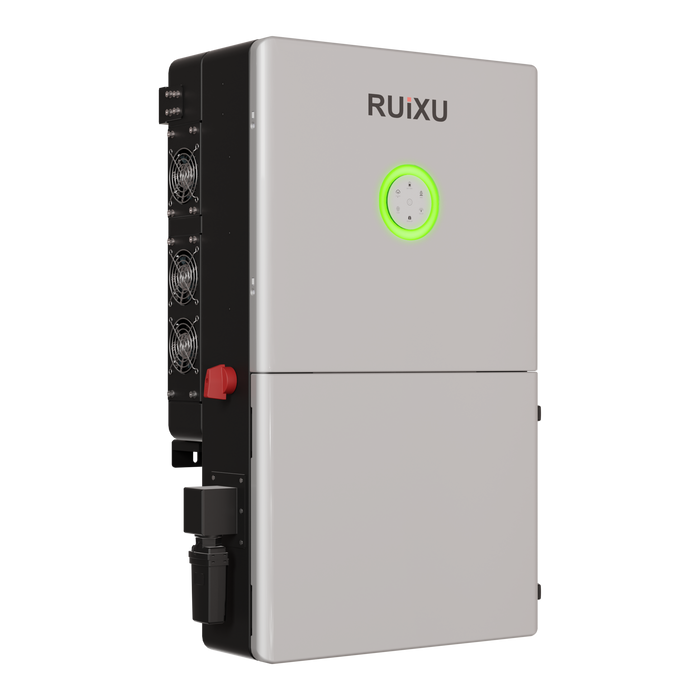

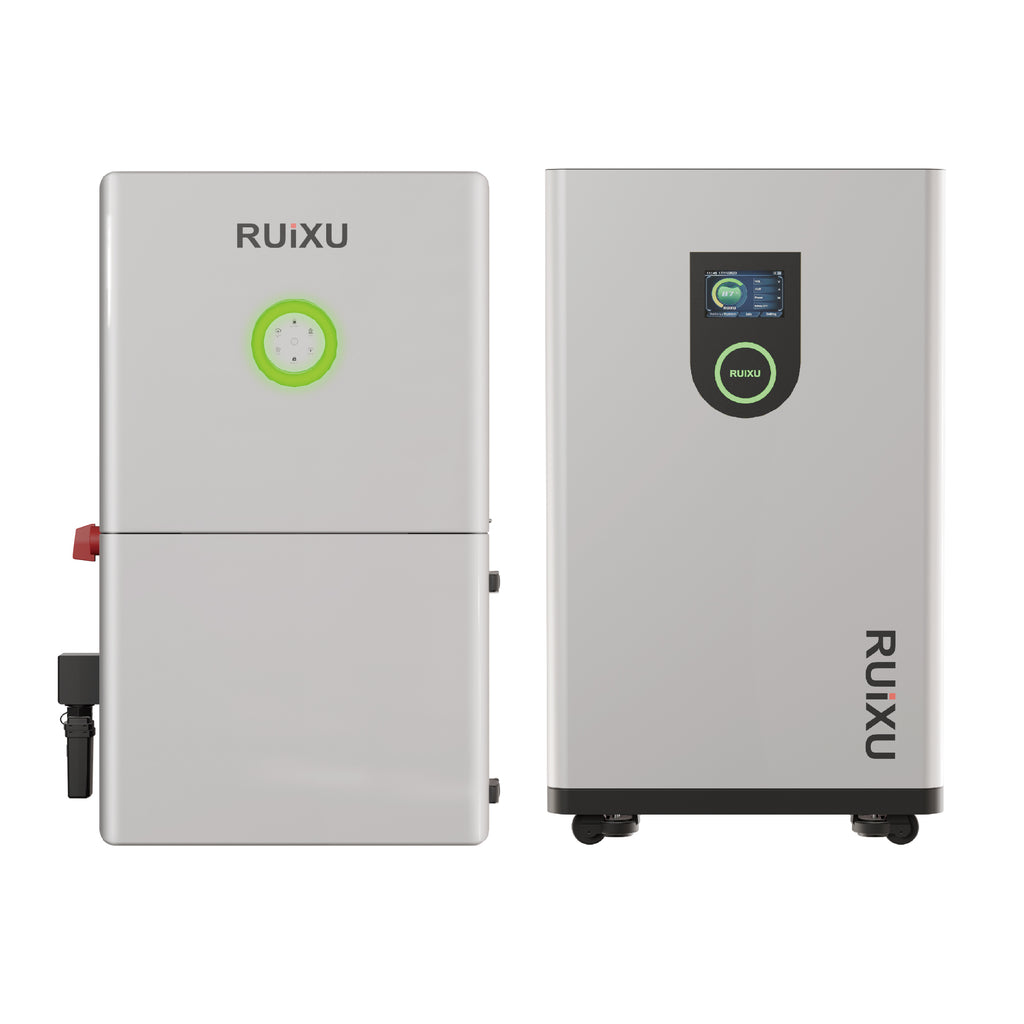

True energy independence requires more than just hardware; it requires a brain. The RUiXU RX-12K Hybrid Inverter is the professional command center for your energy system. It intelligently balances solar, battery, and generator inputs to deliver seamless, uninterruptible power. Now featuring full UL 9540 Certification when paired with RUiXU Lithi2-16 batteries, this inverter meets the highest safety standards for residential and commercial energy storage systems (ESS).
With a massive 12kW output and a built-in 200A transfer relay, the RX-12K provides true whole-home backup. In the event of a grid failure, the switchover happens in less than 10 milliseconds—so fast your sensitive electronics won't even notice. Built for the rugged North American climate with an IP65/NEMA 4X rating, it is the authoritative choice for those who demand reliability and safety without compromise.
Key Performance Features
- 12kW Continuous Output: Enough power to run heavy appliances, pumps, and tools simultaneously.
- UL 9540 Certified ESS: Fully compliant for Energy Storage System (ESS) installations when paired with Lithi2-16 batteries (Supports up to 4 inverters and 12 batteries in a single certified configuration).
- Quad MPPT Tracking: Four independent MPPTs allow for maximum solar harvest even on complex rooflines or partially shaded arrays.

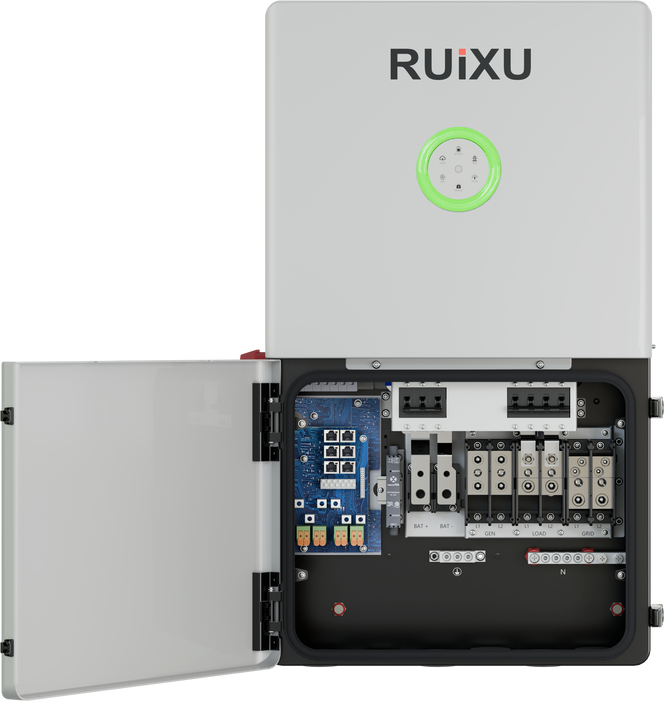

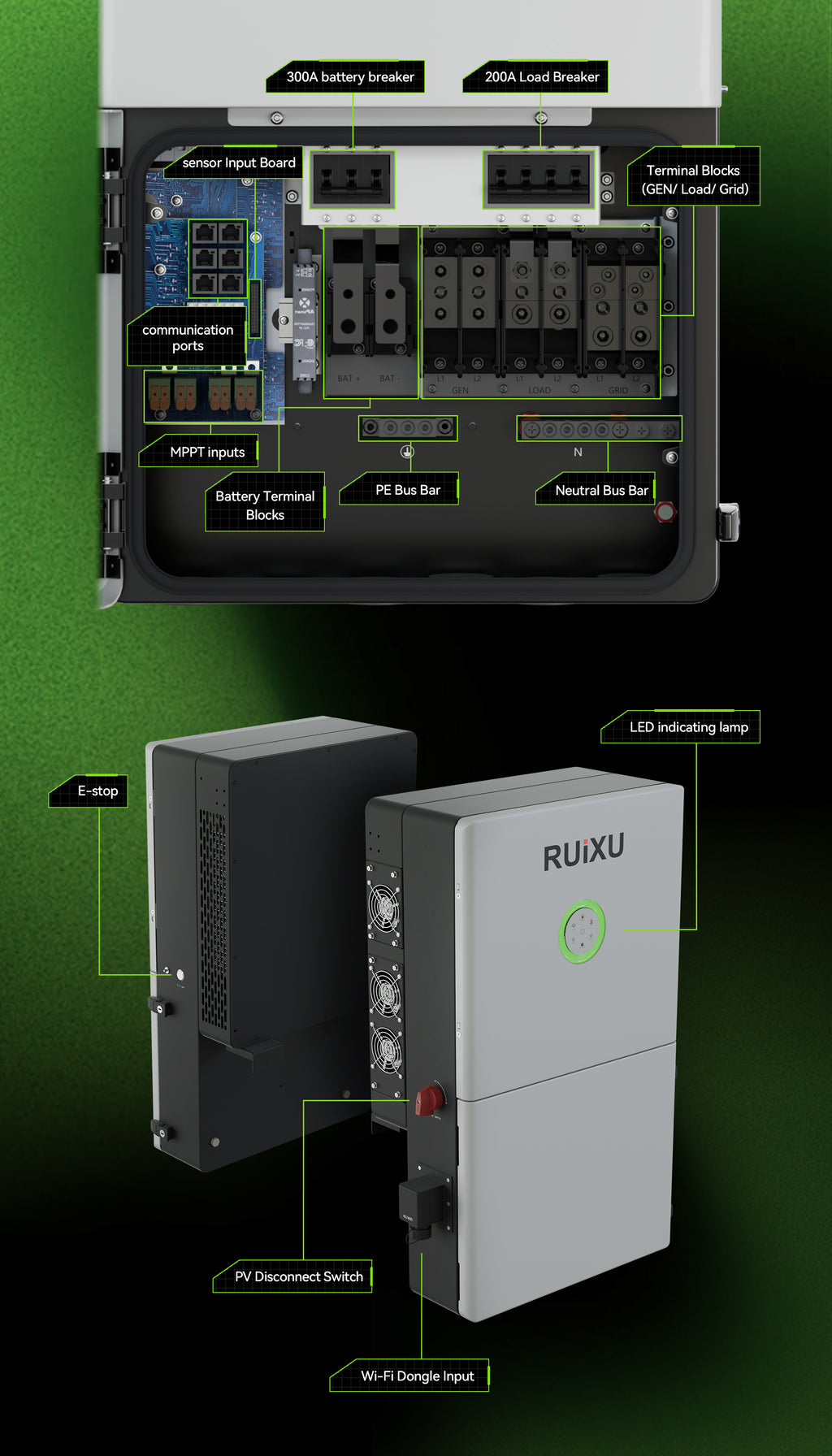

- Whole-Home 200A Transfer Switch: Integrated relay simplifies installation and provides a seamless transition from grid to battery.
- Generator Integrated: Intelligent generator auto-start (G-Start) functionality for multi-layered backup protection.
- Rugged Enclosure: NEMA 4X (IP65) rated for indoor or outdoor installation, capable of withstanding extreme weather (-40°C to +60°C).
Technical Specifications
| Specification | Value |
|---|---|
| Model | RX-12K (Hybrid Solar Inverter) |
| Max PV Array Power | 17,100 Wp |
| Max DC Input Voltage | 600 V |
| MPPT Voltage Range | 90V – 510V |
| Number of MPPTs | 4 (1 String per MPPT) |
| Max Charging/Discharging Current | 228A |
| Rated AC Power (240V) | 11,400 W |
| Peak Backup Power (10s) | 17,100 W |
| Transfer Time (UPS Mode) | < 10 ms |
| Ingress Protection | NEMA 4X / IP65 |
| Weight | 48 kg (105.8 lbs) |
| Safety Certifications | UL 1741, UL 9540 (with Lithi2-16), IEEE 1547, CSA C22.2 |
| Warranty | 10 Years |
What's Included
| Item | Quantity |
|---|---|
| RUiXU RX-12K Hybrid Inverter | 1 |
| Wall Mounting Plate & Hardware | 1 Set |
| Wi-Fi + Bluetooth Communication Module | 1 |
| External Current Transformers (CTs) | 2 |
| User Manual (V1.1) & Warranty Card | 1 Set |
⚠️ ESS System Scalability
The RX-12K is designed for growth. Under the UL 9540 listing, this inverter can be paralleled up to 4 units with up to 12 RUiXU Lithi2-16 batteries. While the hardware can physically support up to 32 batteries in parallel, the UL 9540 system-level certification covers configurations up to 12 batteries for residential and commercial compliance.
Power your entire retreat with the brain of the off-grid movement.
The RUiXU RX-12K: Authority, safety, and independence.
