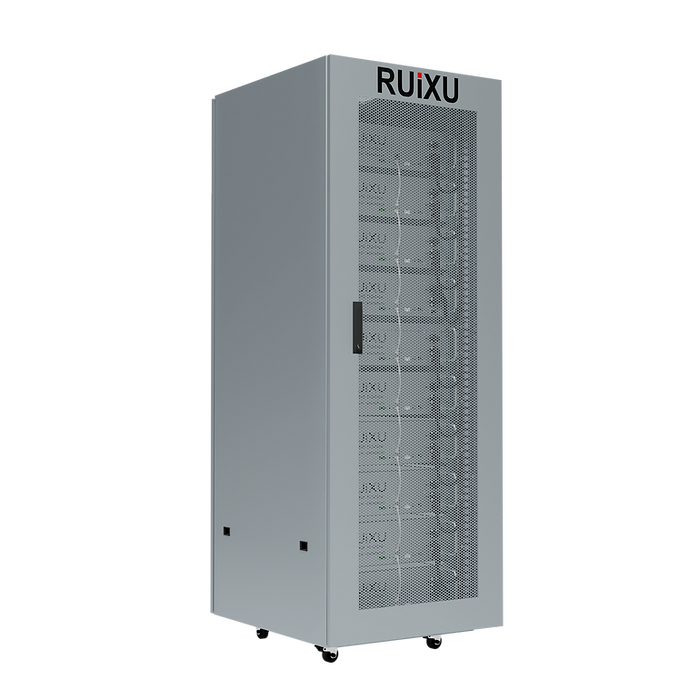

RUiXU RX6075177 10-Slot Server Rack
RUiXU RX6075177 10-Slot Server Rack
Buy now, Pay later! Just select
or
at checkout!
Learn more
Couldn't load pickup availability
Maximum Power, Maximum Potential. The Ultimate Enclosure for Your Off-Grid Ambitions.
For the retreat that demands serious, uncompromising power, you need an enclosure that's up to the task. The RUiXU RX6075177 10-Slot Server Rack is the ultimate housing solution for large-scale off-grid battery banks, providing the capacity, security, and organization needed for the most ambitious power systems.
This is the central hub for your energy independence, capable of housing up to ten RUiXU server rack batteries for a staggering 51kWh of storage. Built from heavy-duty steel, this cabinet is engineered for maximum protection and durability. The lockable, quick-access panels ensure your system is both secure and easy to maintain. Inside, heavy-duty 300A copper bus bars provide a clean, safe, and efficient way to connect your batteries, eliminating cable clutter. With both heavy-duty casters and adjustable leveling feet, installation is straightforward, even for a system of this scale. When you're ready for a powerhouse system, give it the professional foundation it deserves.
Key Features
This 10-slot rack is constructed from heavy-duty steel to securely house a large-scale battery system. Its lockable front door and quick-open side panels provide the perfect balance of security and easy access for maintenance. For clean and safe wiring, the cabinet includes integrated positive and negative 300A-rated copper bus bars with protective covers. The durable grey-white powder-coated finish ensures longevity. A combination of heavy-duty swivel casters and adjustable leveling feet allows for easy placement and rock-solid stability. It's the ideal enclosure for up to ten RUiXU RX-LFP48100-H batteries, allowing you to build a powerful and professional-grade energy storage system.
Technical Specifications
| Specification | Value |
|---|---|
| Model | RX6075177 |
| Capacity | 10 Battery Slots (up to 51.2 kWh) |
| Construction | Heavy-Duty Steel |
| Finish | Grey White Powder-Coat |
| Bus Bars | 300A Rated Copper (Positive & Negative) |
| Doors & Panels | Lockable Front Door, Quick-Open Side Panels |
| Mobility | 4x Heavy-Duty Swivel Casters |
| Stability | 4x Adjustable Leveling Feet |
| Max Load Capacity | 1500 kg (3300 lbs) |
| Dimensions (W x D x H) | 23.6" x 29.5" x 63.4" (without wheels) |
| Height with Wheels | 69.9" |
What's Included
| Item | Quantity |
|---|---|
| RUiXU 10-Slot Server Rack Cabinet | 1 |
| Cage Nuts and Screws Set | 1 |
| Keys for Locks | 2 |
Build a power system as big as your plans.
The 10-Slot RUiXU Server Rack is the ultimate foundation for energy freedom.
