Samlex Battery Guard

BGW-40

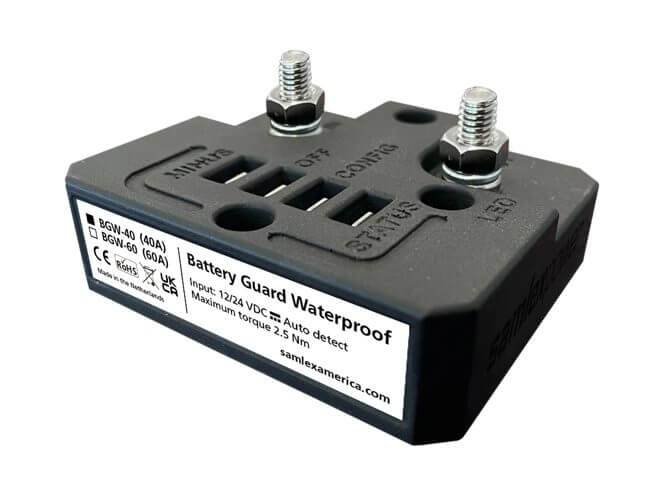

The Battery Guard Waterproof BGW-40 is an intelligent, user programmable, fully waterproof battery guard. The battery guard prevents excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BGW automatically detects the battery voltage (12 or 24V). The BGW-40 battery guard is capable of carrying 40A continuous load and 45A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed. The BGW has additional options for a remote off switch and an alarm output for connecting a buzzer, LED strip or relay. With its new rubberized polyurethane construction and low profile design, the battery guard can be easily mounted in any location. Available in 40A, 60A, or 200A models.

2 Year Limited Warranty

• Features

• Waterproof IP66 rating
• High voltage cut-off of 16 VDC protects equipment from over-voltage conditions.
• Low Profile, sealed and rugged casing – allows flexibility in installation.
• OFF Control input – disconnect battery through a remote switch or relay.
• Status Indicator – output signal allows for external indication lamp or buzzer alarm.
• Load shedding – disconnect non critical equipment early, extending the backup time on critical ones.

Specifications

• Input: 6-35 VDC
• Output: 6-35 VDC
• Amps: 40 Amps
• Weight: 0.34 (lbs)
• Weight: 0.15 (kg)
• Dimensions: 2.8 x 2.4 x 1.3 (in)
• Dimensions: 71 x 61 x 33 (mm)
