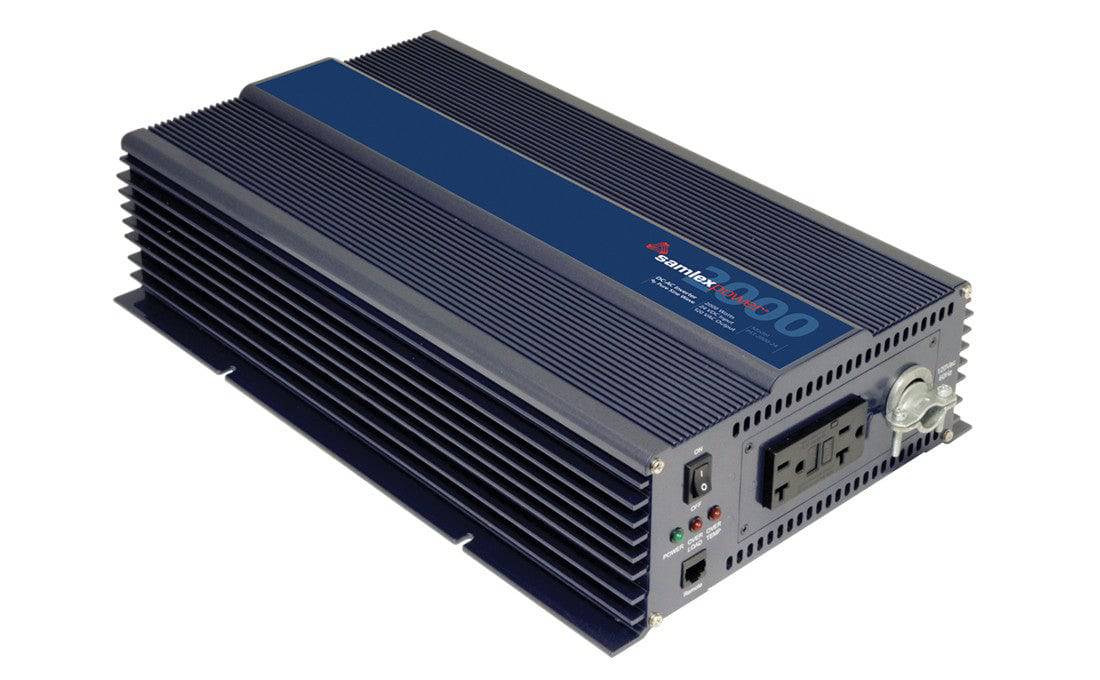

Samlex PST-2000-24

2000 Watt Pure Sine Wave Inverter

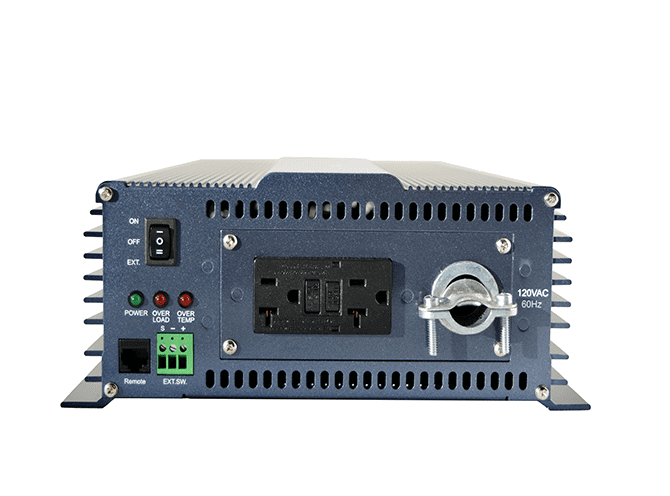

This high efficiency DC-AC inverter converts 24 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.

Optional remote control (sold separately): Model RC-300

Also available in a 12V model and non-remote models

3 Year Limited Warranty

Features

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 – 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-300
• Safety certified to UL standards, FCC compliant
• Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch

Specifications

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2000 Watts
• Surge: 3500 Watts
• Remote Control: RC-300 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to  UL Standard

Applications

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

Downloads

• Owner’s Manual
• Specifications

2,000W 24V PST Pure Sine Inverter (Hardwire Capable)
