Sol-Ark 5,000W All-In-One Hybrid Inverter

Name: Sol-Ark 5,000W All-In-One Hybrid Inverter
Brand: Sol-Ark
Price: 3999.00 CAD
Availability: InStock

Vendor: Sol-Ark

SKU: SA-5K-1P

LOW PRICE GUARANTEE As Canada’s #1 off-grid provider, we won’t be beat on price.

Submit Form Terms

Buy now, Pay later! Just select or at checkout! Learn more

$3,999.00 CAD

$3,999.00 CAD ~~$4,999.00 CAD~~

Shipping calculated at checkout.

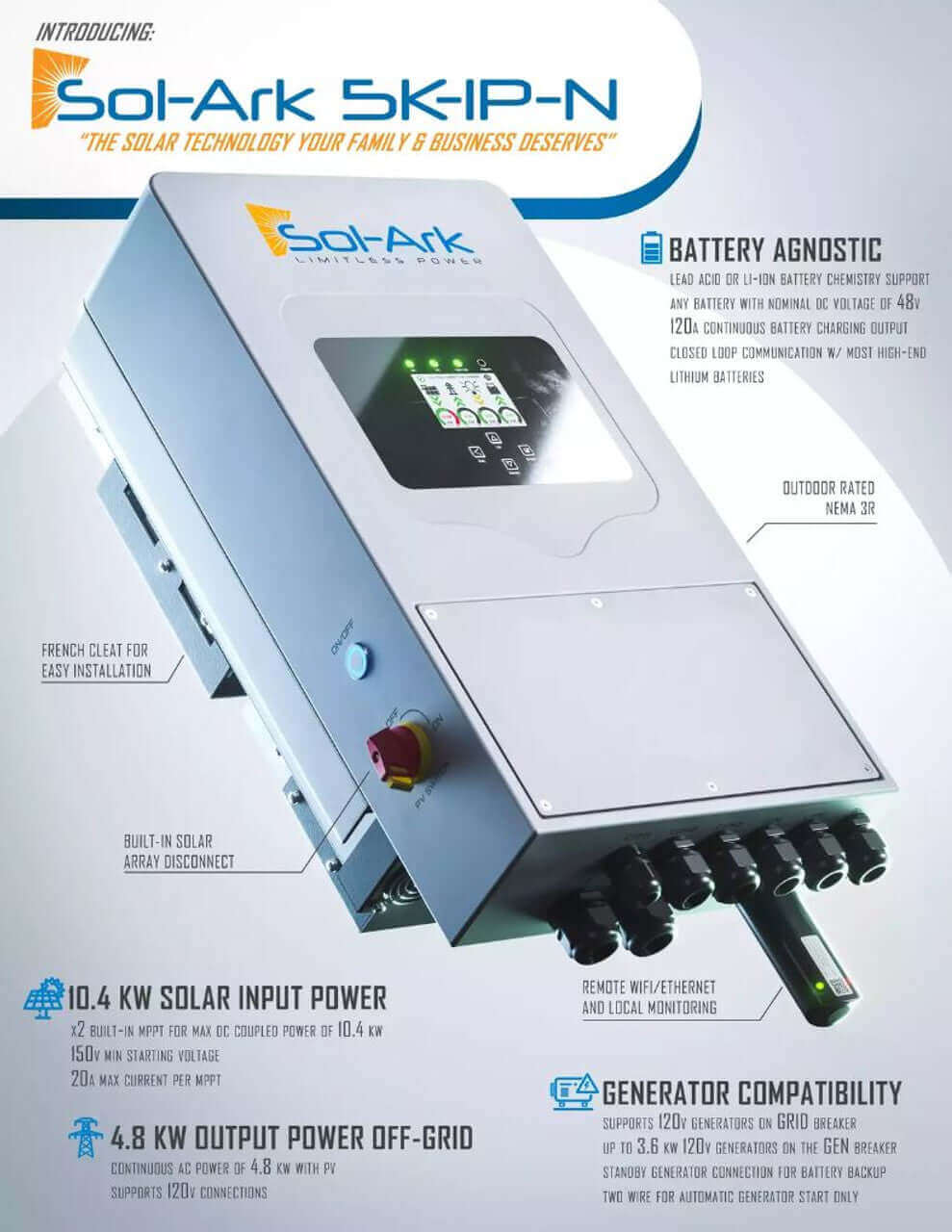

The Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charge controller, and display with remote monitoring which is simple to install! Grid-tied, Off-Grid, or battery backup solar power system, this intelligent system can manage power to and from Solar, Battery, Grid, Loads, and Generator.

DOWNLOADS

Sol-Ark 5k Single-Phase Hybrid Inverter Details

Big power: 33% less weight
Perfect for 120V only setups
120V generator compatible
Blazing 5.0 millisecond transfer time

Characteristics

Manufacturer: Sol-Ark
Model: SA-5K-1P-N
Rated Power Output [W]: 4800
Length [mm (in)]: 579.12 mm (22.8 in)
Width [mm (in)]: 330.2 mm (13 in)
Depth [mm (in)]: 231.14 mm (9.1 in)
Weight [kg (lb)]: 28.12 kg (62lb)
Warranty [Years]: 5

Inverter Features

Inverter Type: Hybrid inverter
Maximum/Peak Efficiency [%]: 97.6
Transformer / Transformerless: Transformerless DC
DC Power Rating [W]: 10400
Max. Input Power [W]: 10400
Max. Input Voltage [V]: 500
Max. Input Current [A]: 40
Min. DC voltage / start voltage [V]: 150
Min. DC voltage / start voltage [V]: 150
Number of DC String Inputs (Inlets): 4
Number of MPP Trackers: 2
Max. Input Power per MPPT [W]: 5200
Max. Input Voltage per MPPT [V]: 500
Max. Input Current per MPPT [A]: 20
Voltage Lower Limit for MPP Range [V]: 125
Voltage Upper Limit for MPP Range [V]: 425
DC Disconnection Type: Integrated
Reverse-Polarity Protection: true
AC Power Rating [W]: 4800
Nominal AC Power [W]: 4800
Max. AC Power [W]: 4800
AC voltage range [V]: 114-123
AC grid frequency [Hz]: 60
Max. output current [A]: 40
Nominal AC Voltage [V]: 120
Maximum AC Voltage Range [V]: 123
Nominal AC Frequency [Hz], range [Hz-Hz]: 60
Max. AC Line Current [A]: 50
AC Connection Type: L1/Neutral/Ground
AC Input Wire Gauge Range [AWG]: 8 AWG - 6 AWG
Sleep (Night) Consumption [W]: 60
NEMA Enclosure Rating: IP65 / NEMA 3R
Cooling Method: Integrated Fans
Ambient Temperature Range [°C(°F)]: -25°C to +60°C (-13°F to +140°F)
Display: LCD Touch Screen
Communication: Wi-Fi, LAN, CanBus, RS485
Basic Warranty [Years]: 5
Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B
AC grid range [Hz]: 55-65
Max. recommended PV power (@ module STC): 10400
