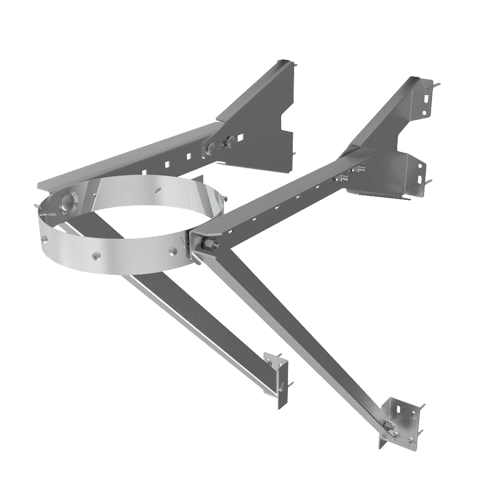

Summum Pro 16" Adjustable Tee Support
Exterior Extended Standoff Deadload Base Support (Up to 16" Clearance) — Model SC-6ATS
Establish a rock-solid, code-compliant foundation for through-the-wall exterior chimney installations on homes with wide roof overhangs using the official Summum Pro 16" Adjustable Tee Support (Model #SC-6ATS). Precision-engineered in Canada, this heavy-duty extended mounting assembly pairs a heavy-gauge 304 mirror-finish stainless steel clamping collar with reinforced, extra-long structural galvanized base support arms. Sized to fit the 9-inch outer casing of Summum Pro 6" insulated chimney pipe, it provides continuous wall standoff adjustability up to a full 16 inches—carrying the entire vertical deadweight of your chimney stack while allowing your flue to ascend straight past deep roof eaves, wide soffits, and gutters without cutting into roof structures or framing custom wooden standoff bump-outs.

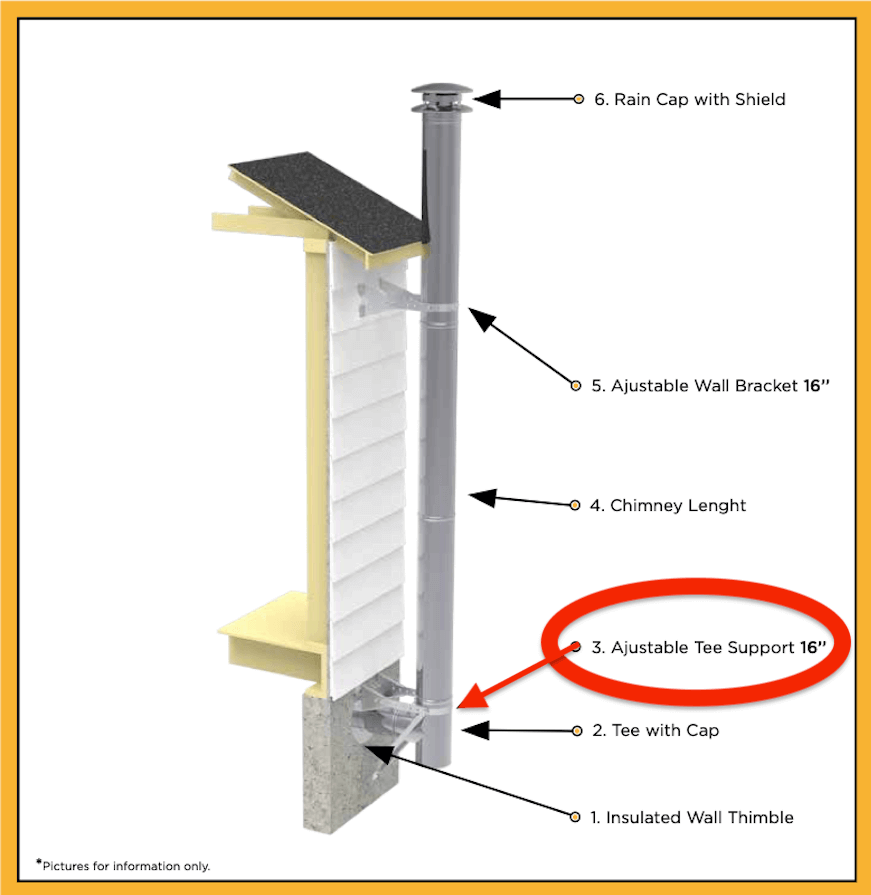

Summum Pro 16" Extended Tee Support Dimensions, Standoff Range & Base Clamping Profile
- Extended 16" Standoff Reach: Continuous adjustment up to 16 inches from the exterior wall plane allows chimneys to clear wide roof overhangs, fascia, and gutters without cutting into eaves or framing custom wooden bump-outs.
- Primary Deadweight Foundation: Engineered with structural-grade galvanized steel base arms designed to carry the full vertical deadload of exterior chimney stacks starting above through-the-wall cleanout tees.
- Eliminates Draft-Restricting Offsets: Preserves straight, high-velocity vertical drafting by ascending straight past rooflines instead of introducing draft-restricting 30° or 45° offset elbows.
- 100% True 304 Stainless Steel Collar Band: Clamping band is fabricated from premium .019" thick 304 mirror-finish stainless steel, delivering lifetime rust resistance against coastal salt spray, moisture, and creosote wash.
- Heavy Structural Galvanized Brackets: Thick, reinforced galvanized steel arms anchor firmly into exterior wall studs or masonry using heavy-duty lag fasteners without flexing or vibrating under winter snowpacks.
- CAN/ULC-S629 Certified System Component: Fully tested and certified by OMNI Laboratories to withstand intense 2100°F (1150°C) chimney fire conditions with just 2" clearance to combustibles.
- Limited Lifetime Warranty: Backed by Summum Pro's generous 10-year 100% component replacement warranty and 50% replacement coverage thereafter when installed by a certified WETT or APC technician.
