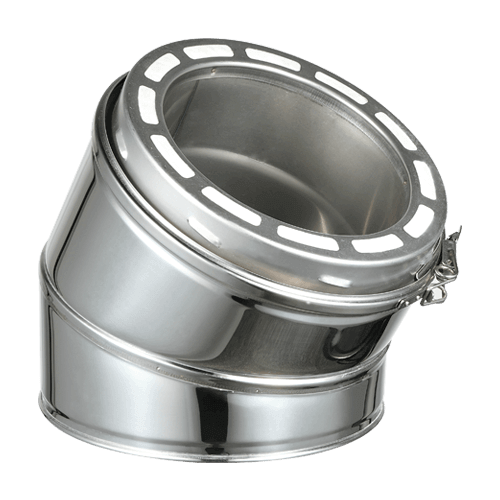

Summum Pro 6" Insulated Elbow Set (2 Pieces)
All-Weather 304 Stainless Steel Offset Package with Locking Bands — Series SC-6EL
Safely navigate ceiling joists, roof rafters, and architectural structural obstacles without compromising drafting efficiency or fire safety using the official Summum Pro 6" Insulated Elbow Set (Series SC-6EL). Precision-engineered in Canada from heavy-gauge 304 stainless steel inside and out, each kit includes a matched pair of insulated elbows and factory mechanical locking bands. The first elbow angles the chimney run away from framing obstructions, while the second returns the stack to true vertical alignment. Filled with 1 ½" of solid high-density ceramic wool insulation between double 304 stainless steel walls, it maintains hot flue gas temperatures to prevent cold-hearth sluggish drafting while keeping exterior temperatures code-compliant.
Summum Pro 6" Insulated Elbow Dimensions, Offset Angles & Clearance Geometry

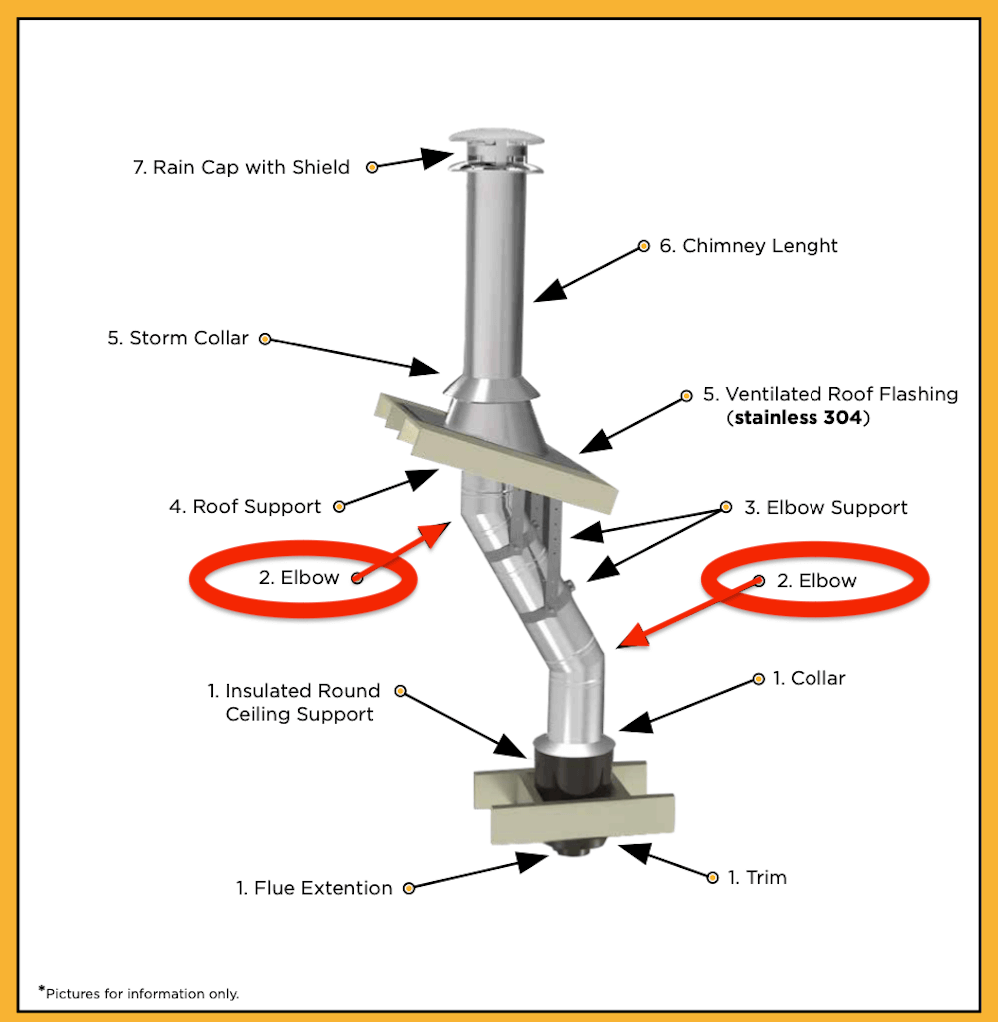

- Matched 2-Piece Offset Solution: Complete kit supplies both elbows needed to establish a code-compliant offset—the first elbow angles the stack away from framing obstacles and the second re-centers the flue to vertical.
- 100% True 304 Stainless Steel (Inside & Out): Both the inner flue liner and mirror-polished outer jacket are fabricated from premium .019" thick 304 stainless steel for lifetime resistance against acidic condensation, creosote wash, and coastal salt spray.
- 1 ½" High-Density Ceramic Wool Blanket: Solid-pack non-combustible ceramic blanket maintains high flue gas temperatures through angled sections, preventing draft deceleration and cold-air stalling.
- Official Locking Bands Included: Every package comes standard with Summum Pro stainless steel mechanical locking bands to positively clamp joints against roofline wind vibration.
- Smooth Robotic Seam Welds: Laser-guided automated continuous welds create airtight, leak-free joint transitions with zero rivets or seam gaps.
- Indoor & Outdoor Versatility: Certified for interior installations (alcove, ceiling, or attic pass-throughs) and harsh outdoor sub-zero Canadian winter conditions.
- CAN/ULC-S629 Certified System Component: Fully tested and certified by OMNI Laboratories to withstand intense 2100°F (1150°C) chimney fire conditions with just 2" clearance to combustibles.
- Limited Lifetime Warranty: Backed by Summum Pro's generous 10-year 100% component replacement warranty and 50% replacement coverage thereafter when installed by a certified WETT or APC technician.
