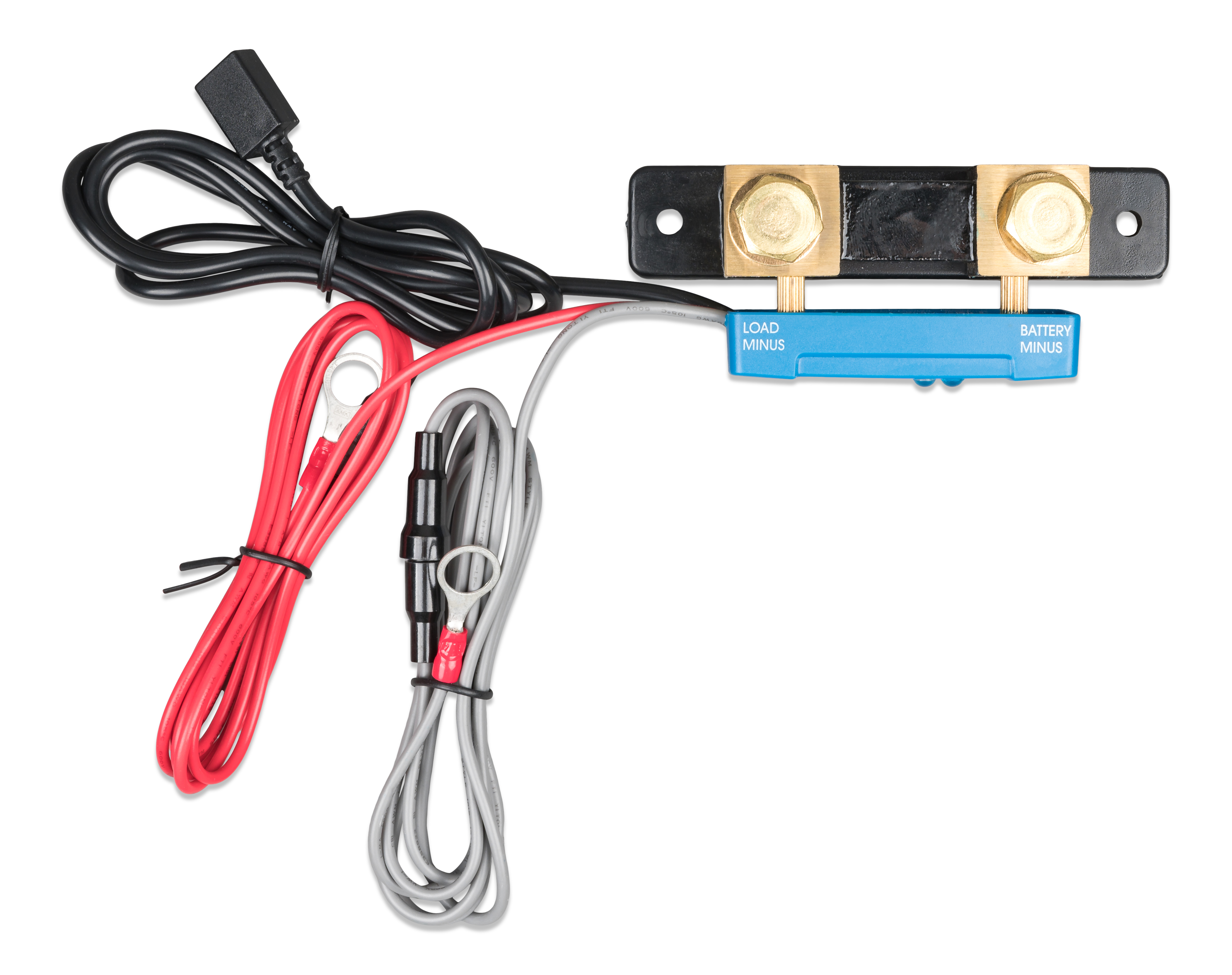

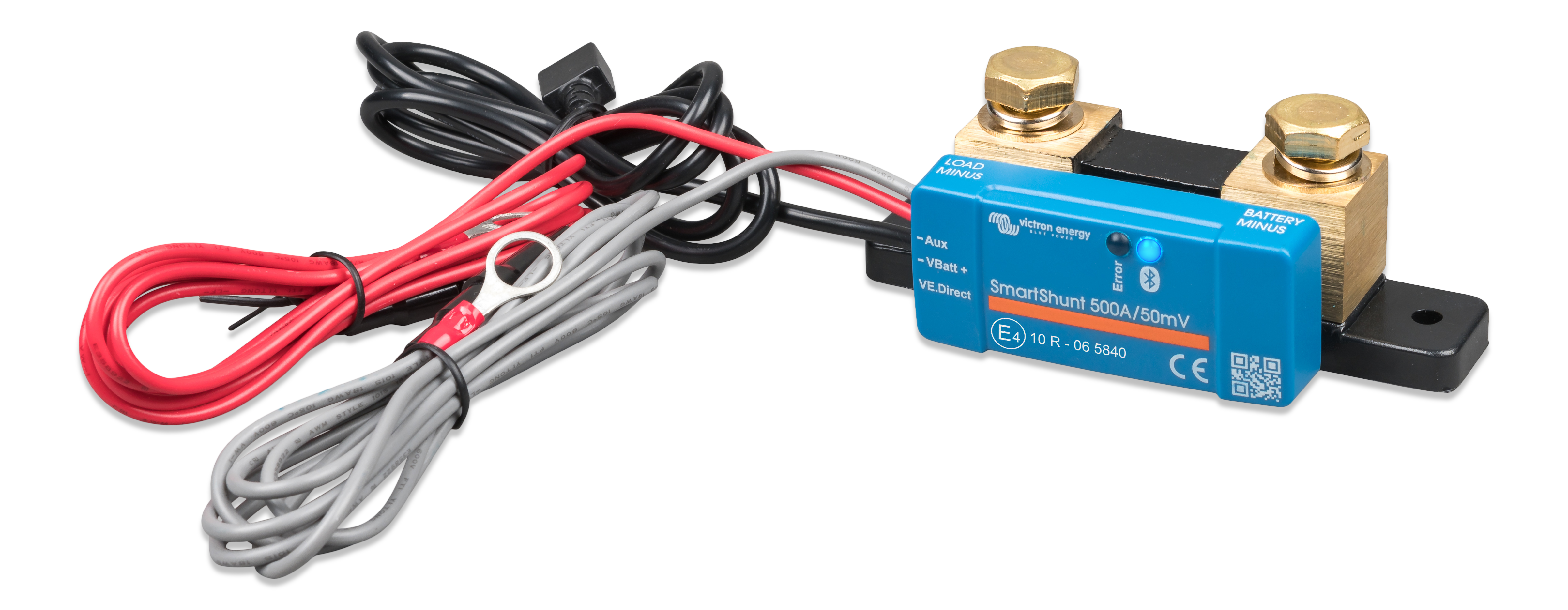

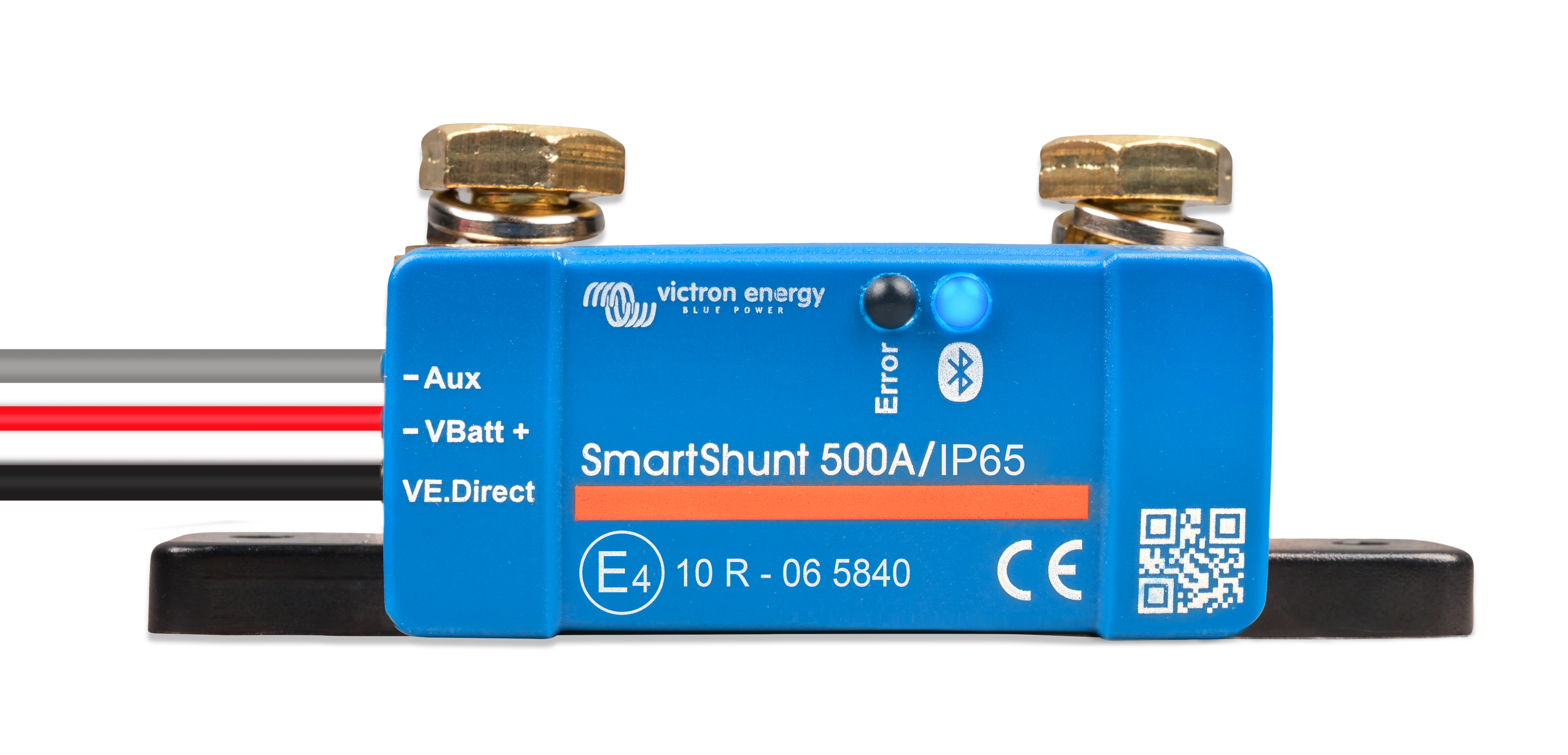

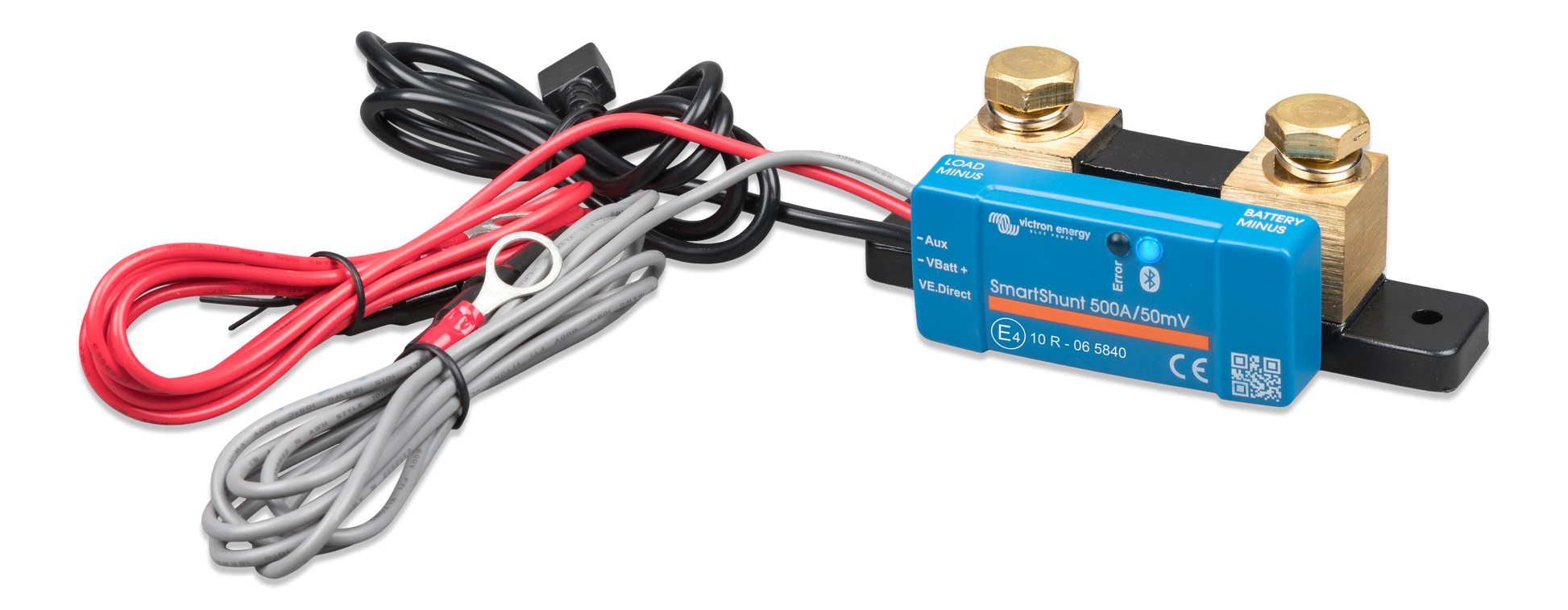

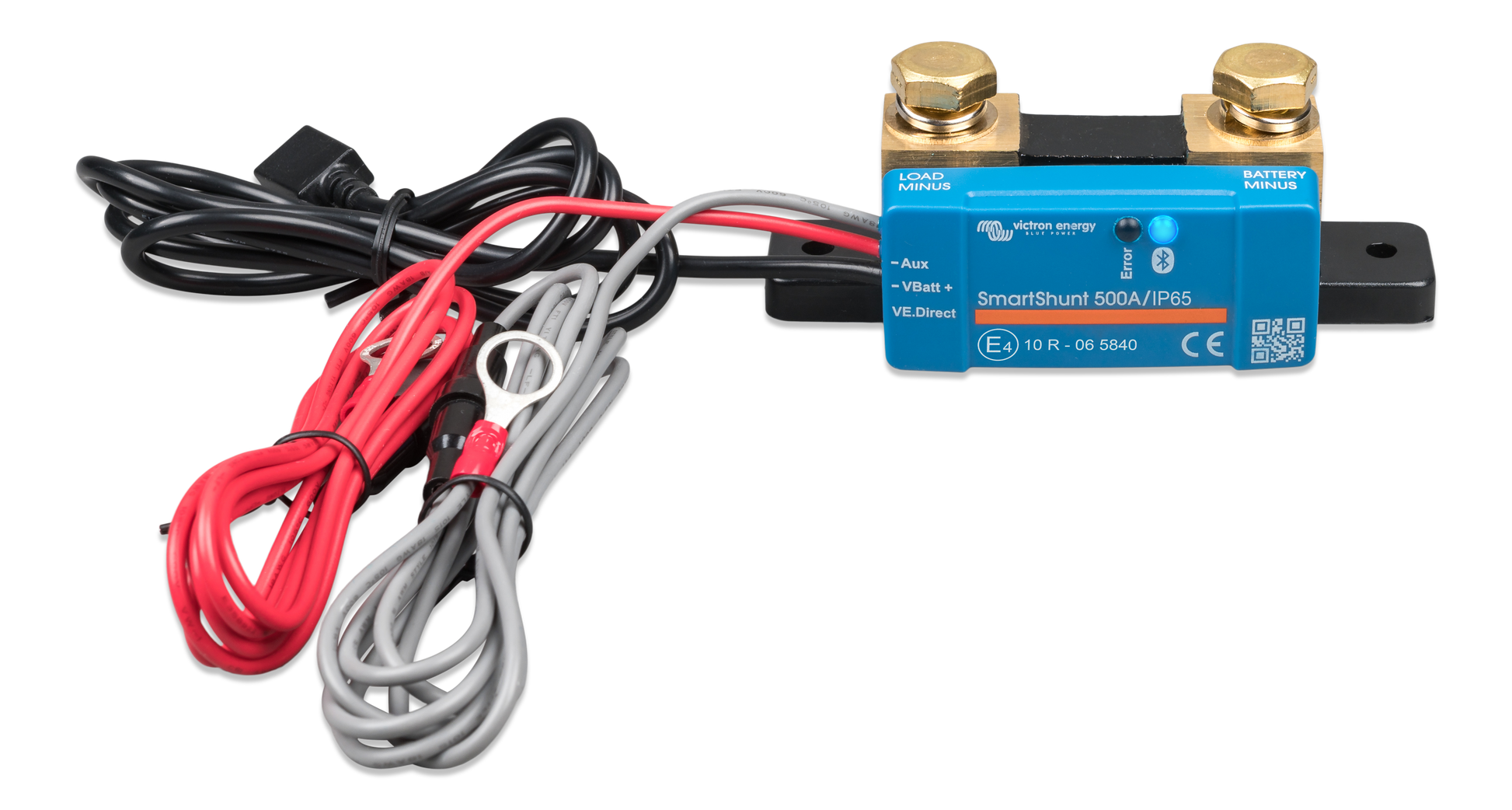

Victron SmartShunt 500A/50mV IP65

Name: Victron SmartShunt 500A/50mV IP65
Brand: Victron
SKU: SHU065150050
Availability: InStock

Fournisseur: Victron

UGS: SHU065150050

$141.49 CAD

Expédition calculée au moment du paiement.

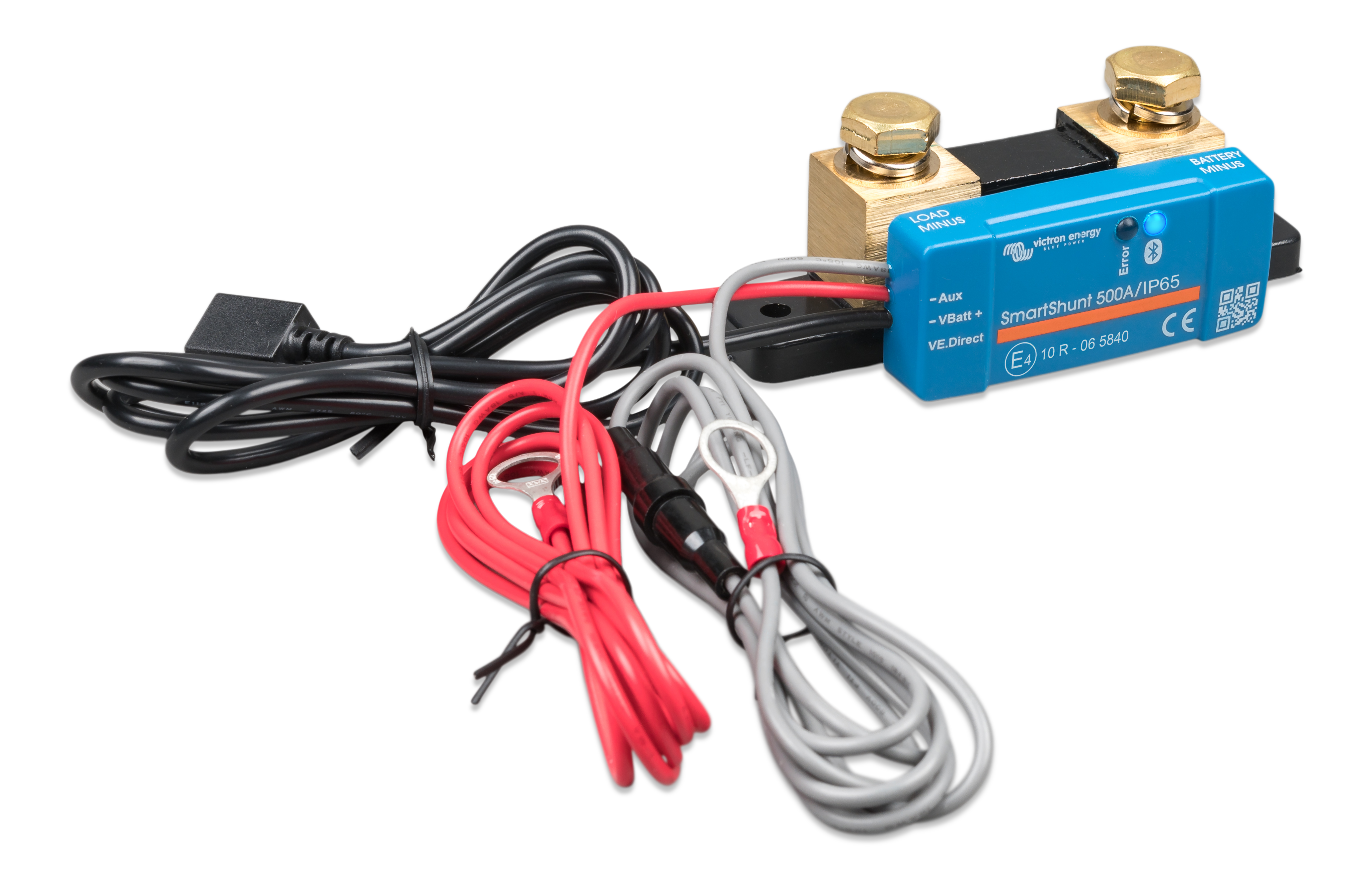

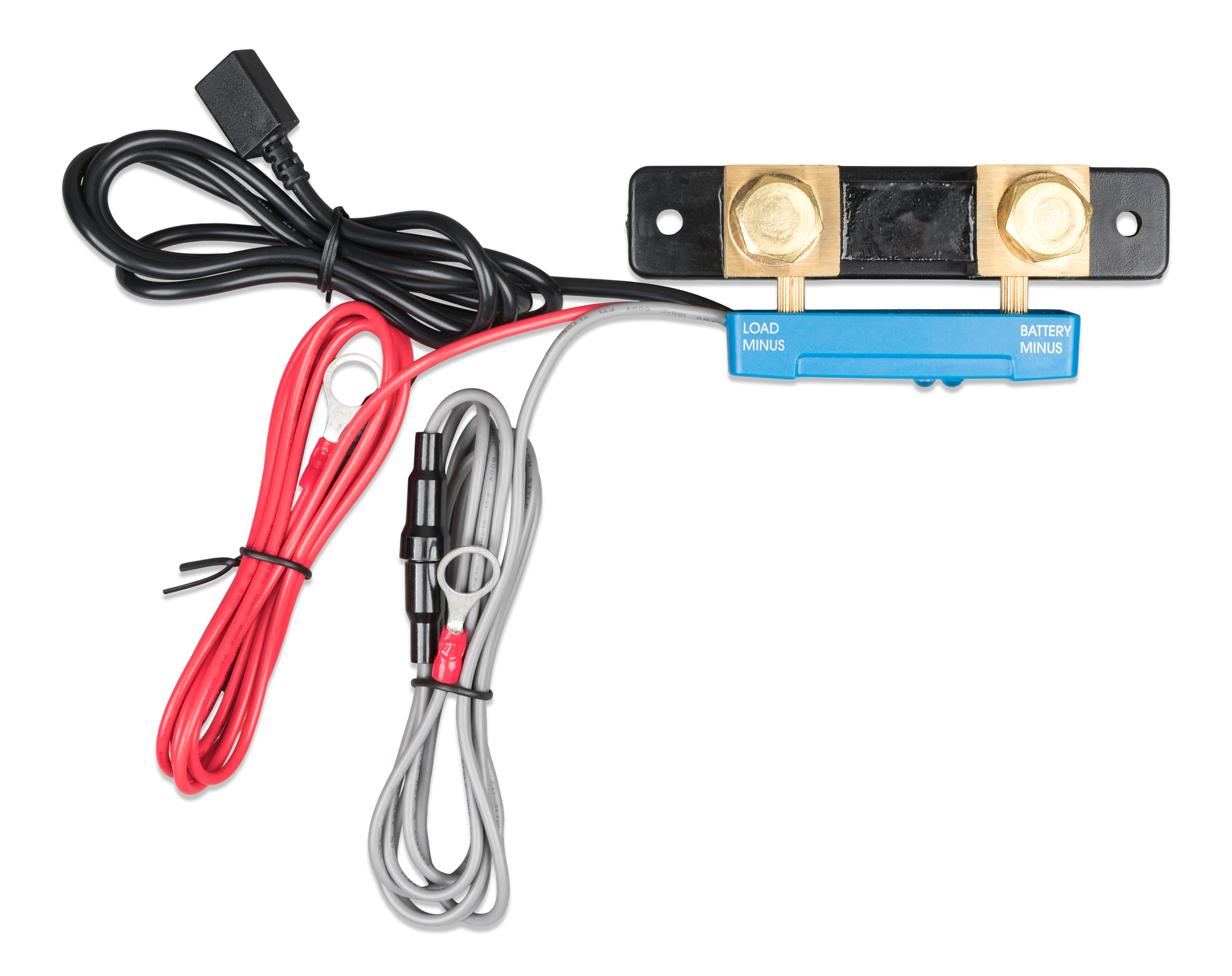

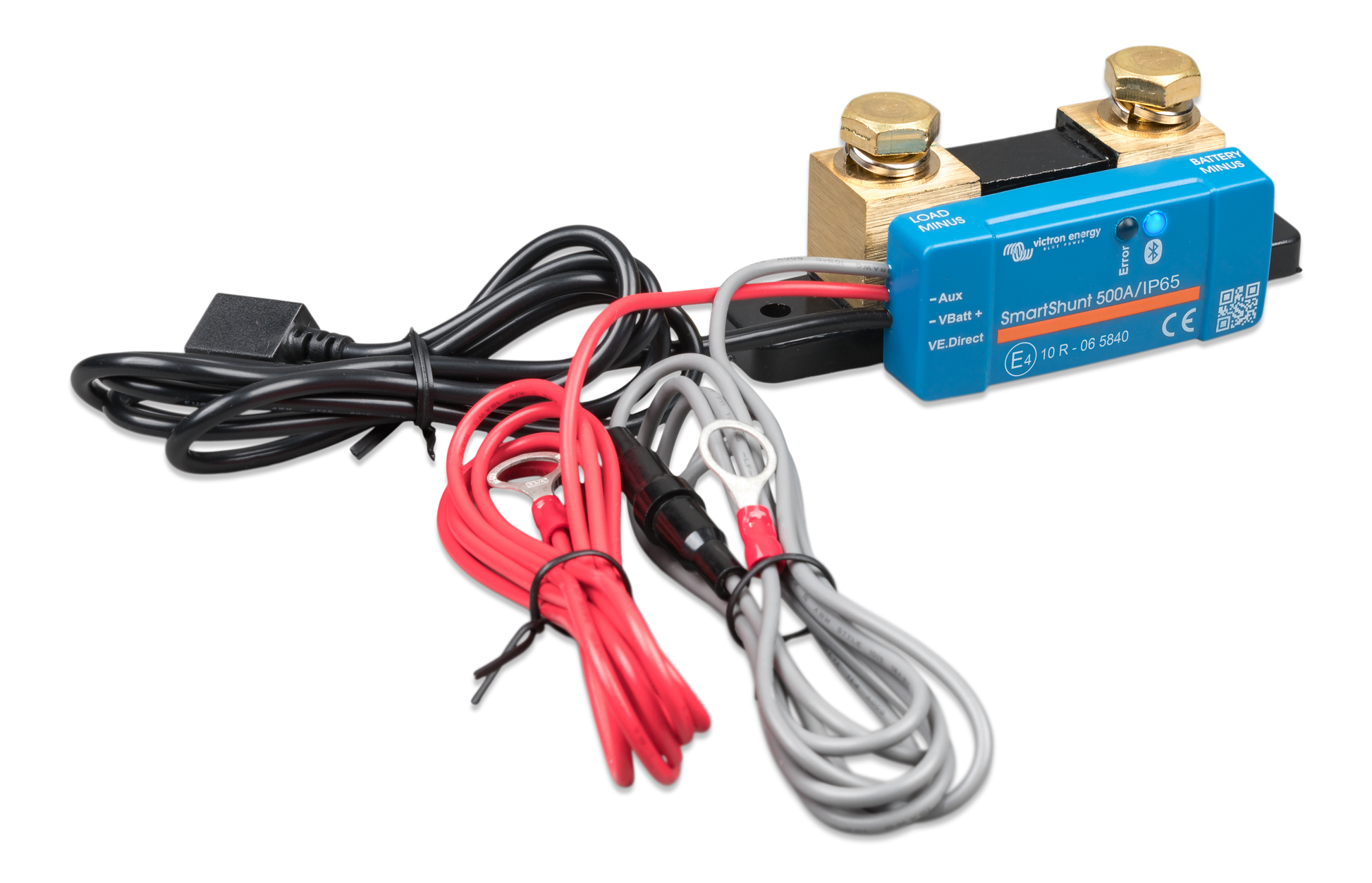

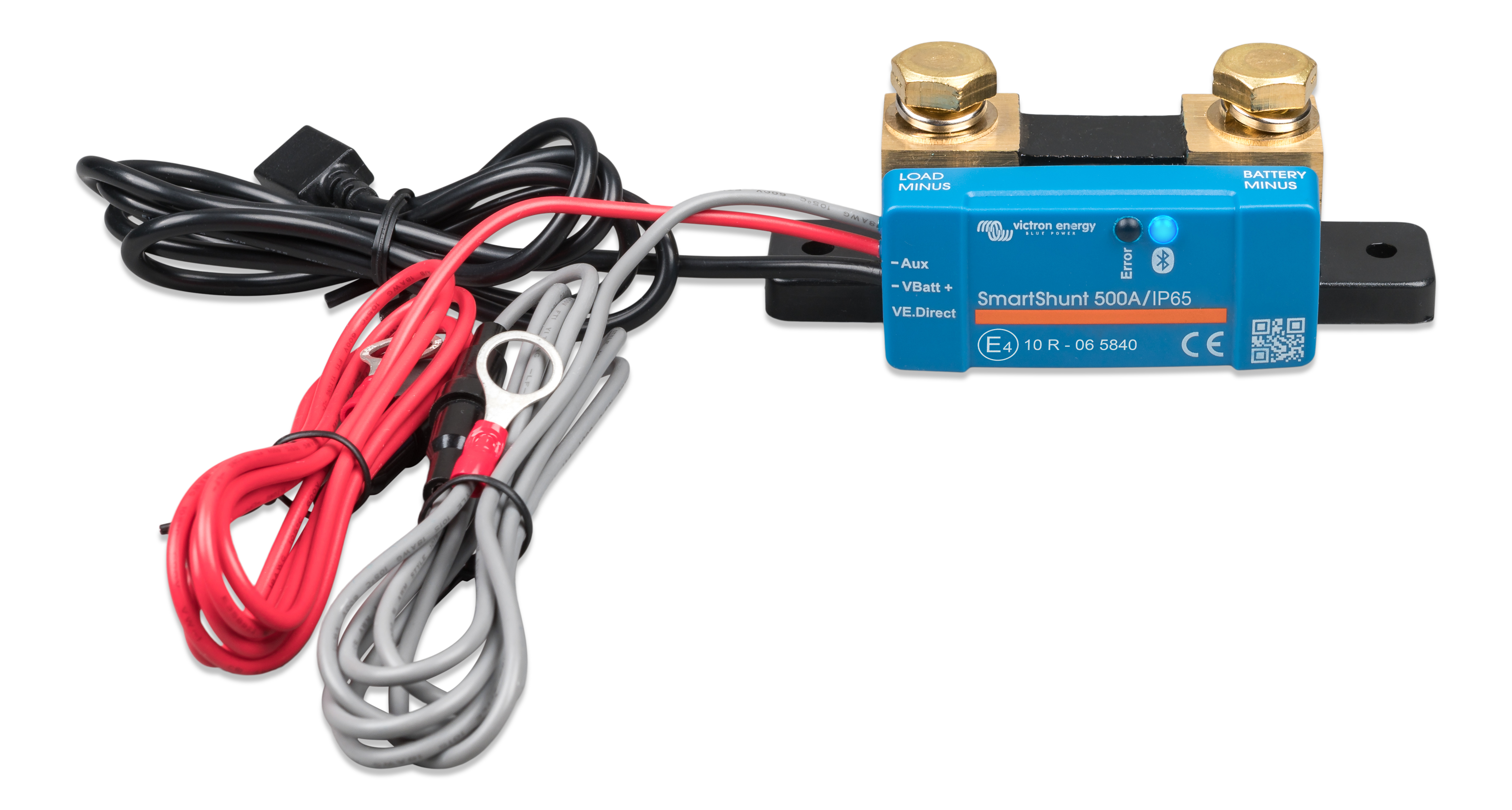

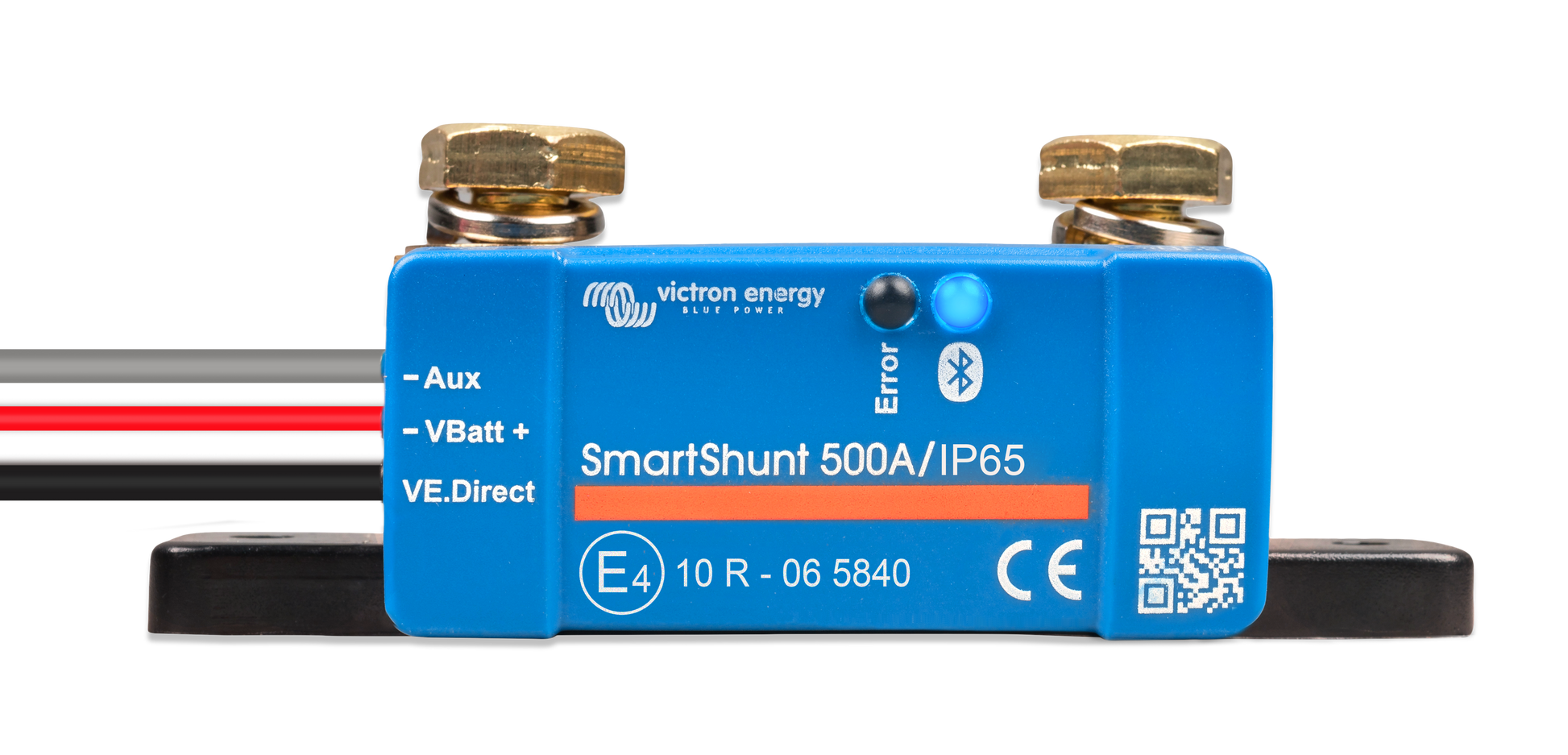

SmartShunt 500A/50mV IP65 Battery Monitor

Waterproof All-in-One Battery Monitor. IP65 Protection & Wireless Intelligence.

The SmartShunt 500A/50mV IP65 is a waterproof, all-in-one battery monitor designed for demanding mobile, marine, and outdoor off-grid environments where moisture, spray, or dust are present. Using your smartphone or tablet as the display, it eliminates dashboard clutter while providing real-time data on battery State of Charge (SOC), voltage, current draw, and remaining runtime via the free VictronConnect app.

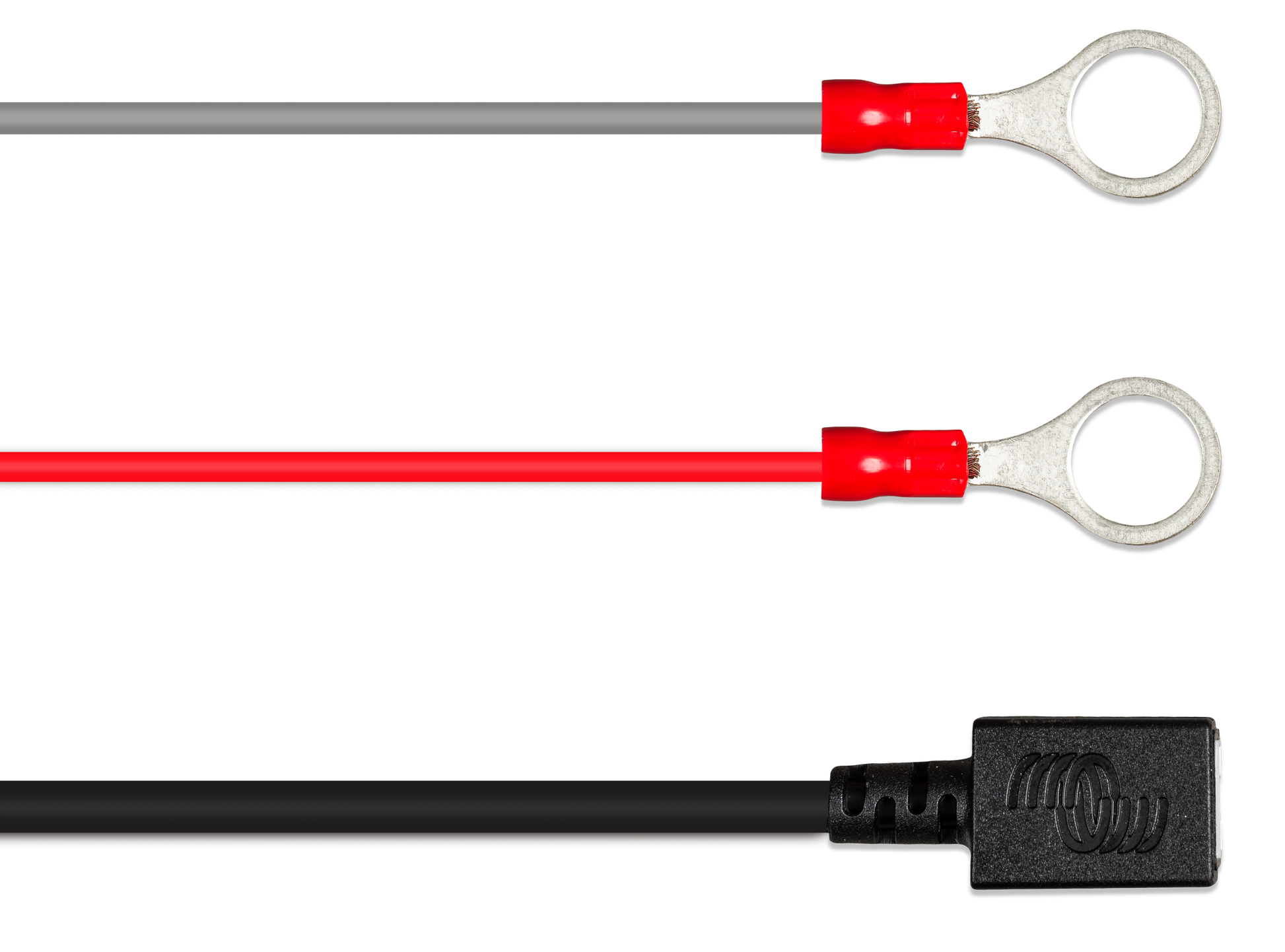

Engineered with potted electronics, water-resistant connectors, and heavy-duty M10 terminal bolts, this IP65 version is ideal for exposed battery trays, marine bilges, and under-hood vehicle installations. An auxiliary input allows you to monitor a starter battery voltage, midpoint balance, or connect an optional temperature sensor, while built-in VE.Direct communication connects easily to Victron GX communication centres.

Highlights

IP65 Water & Dust Resistance

Sealed, potted electronics and weather-resistant connections ensure reliable long-term battery monitoring in wet engine bays, marine environments, and exposed battery boxes.

Your Phone is the Display

Connect wirelessly via built-in Bluetooth to read State of Charge (SOC), voltage, current, power, and historical metrics without running cables to a physical dashboard screen.

Versatile Auxiliary Input

Use the second monitoring channel to track the voltage of a starter battery, monitor bank midpoint balance, or attach a temperature sensor for temperature-compensated charging.

VE.Smart Network Sync

Wirelessly shares real-time battery voltage and current data with nearby Victron SmartSolar MPPT charge controllers to optimize charging efficiency.

Full Chemistry Compatibility

Accurately monitors Lithium (LiFePO4), AGM, Gel, and flooded lead-acid battery banks up to nominal 48V systems (6.5 – 70 VDC operating range).

VE.Direct Communication

Connects directly to GX system controllers (such as the Cerbo GX or Ekrano GX) to forward complete battery telemetry to the free VRM Online Portal.

Technical Specifications

Model Configuration SmartShunt 500A/50mV IP65 (Part: SHU065150050)

Supply Voltage Range 6.5 – 70 V DC (12V, 24V, 48V Nominal Battery Systems)

Current Draw < 1 mA

Continuous Current Rating 500 Amps Continuous (50mV Shunt)

Auxiliary Input Voltage Range 6.5 – 70 V DC (Starter battery, midpoint, or temperature)

Battery Capacity Range 1 – 9999 Ah

Supported Chemistries Lithium (LiFePO4), AGM, Gel, Flooded Lead-Acid

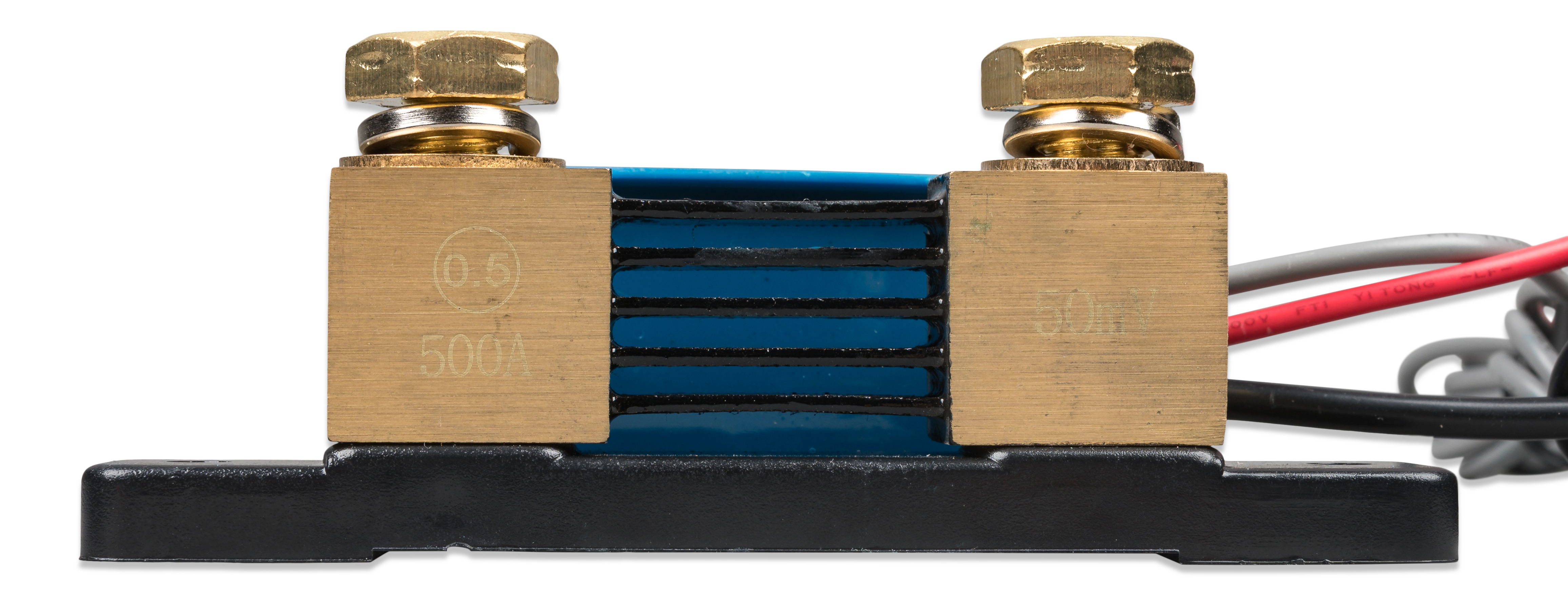

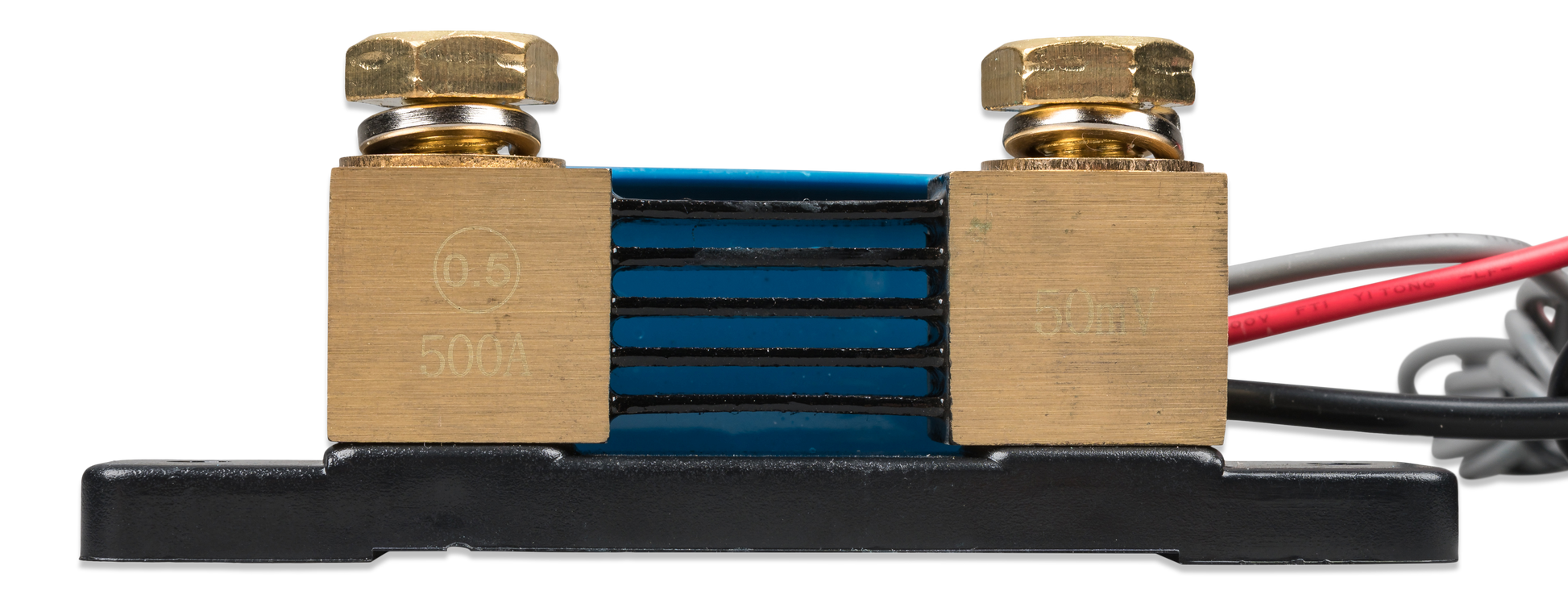

Shunt Connection Hardware M10 High-Current Terminal Bolts

Ingress Protection Rating IP65 (Waterproof & Dustproof Encapsulated Construction)

Connectivity Standards Bluetooth Smart Built-in + VE.Direct Communication Port

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Dimensions (H x W x D) 46 x 120 x 54 mm (1.8" x 4.7" x 2.1" inches)

Product Net Weight 0.35 kg (0.77 lbs)

Warranty Coverage 5-Year Manufacturer Warranty
